Bystronic - BySprint Pro 3015PL-LAS-BYS-2014-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used BYSTRONIC BySprint PRO 3015 - Laser Cutting Machine

Show in original language

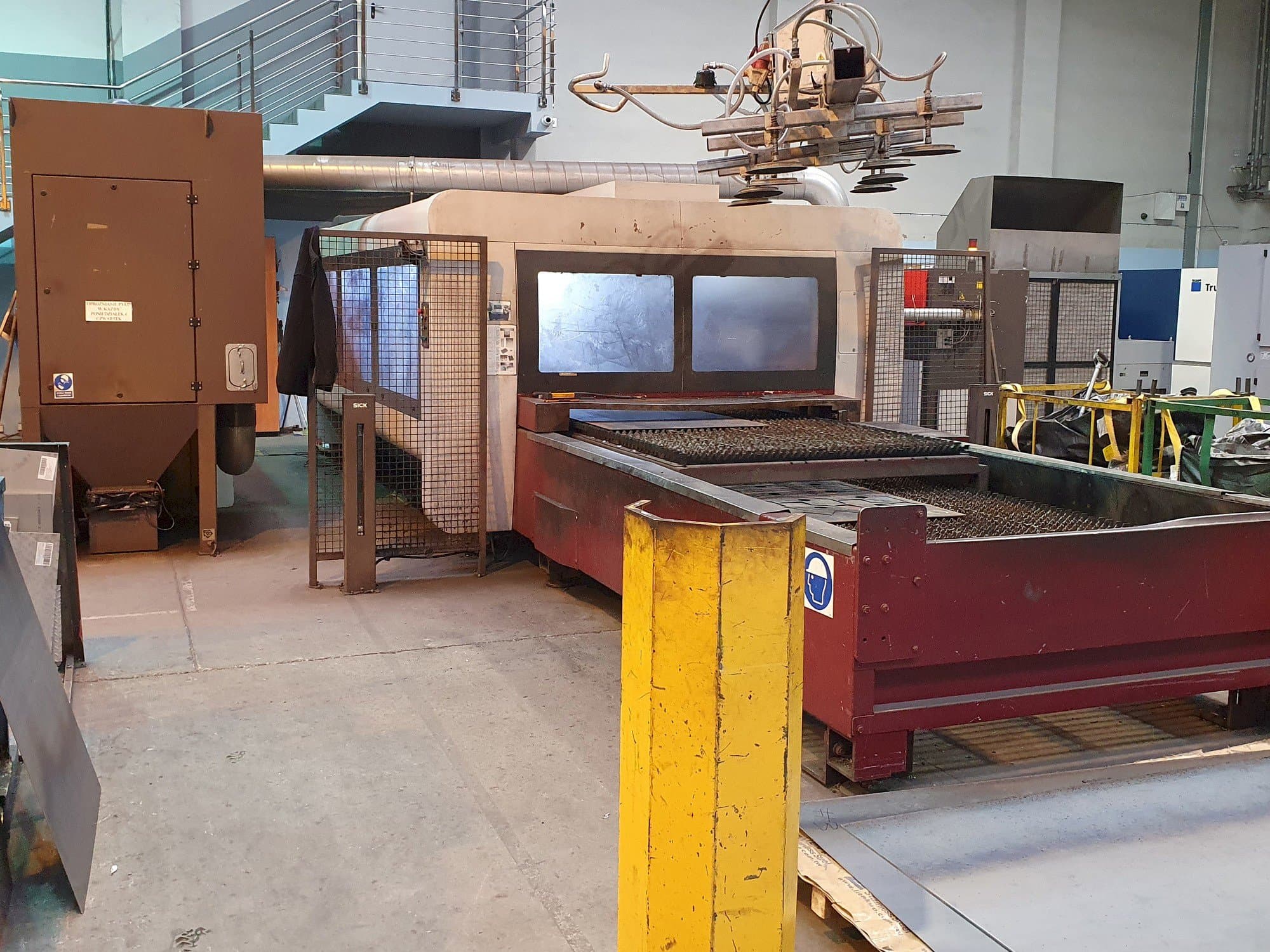

This Bystronic BySprint Pro 3015 laser cutting machine was manufactured in 2014. The machine has a total of 22412 production hours. It is operated through a Bystronic control unit. The machine has a laser power 4400 W. It is a very good, working condition. It is regularly serviced by Bystronic service.

Overview

brand: Bystronic
year: 2014
MODEL: BySprint Pro 3015
production hours: 22412
application type: Cutting
Location: Poland
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: BYSTRONIC

Technical Information - Bystronic BySprint Pro 3015

General Data

Measurements width: 10400 mm
Measurements depth: 6500 mm
Measurements height: 2450 mm
Machine weight: 13000 kg

Control Unit

Brand: BYSTRONIC

Main drive

Laserpower: 4400 W KW
Laser type: ByLaser 4400

Workpiece

Workpiece weight: 750kg

Media

Main electronic connection: 3x400V/50Hz
Power consumption: 40 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Laser technology: co2
- - Positioning speed: 140 m/min
- - Positioning accuracy pa: ± 0. 1mm
- - Repeatability ps: ± 0. 05mm
- - Nominal sheet size: 3000 x 1500mm
- - Cutting area (x, y): 3048 x1 524mm
- - Z axis: 70mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
