Bystronic Bystar 3015 BTL 2800 Laser Cutting Machine

Show in original language

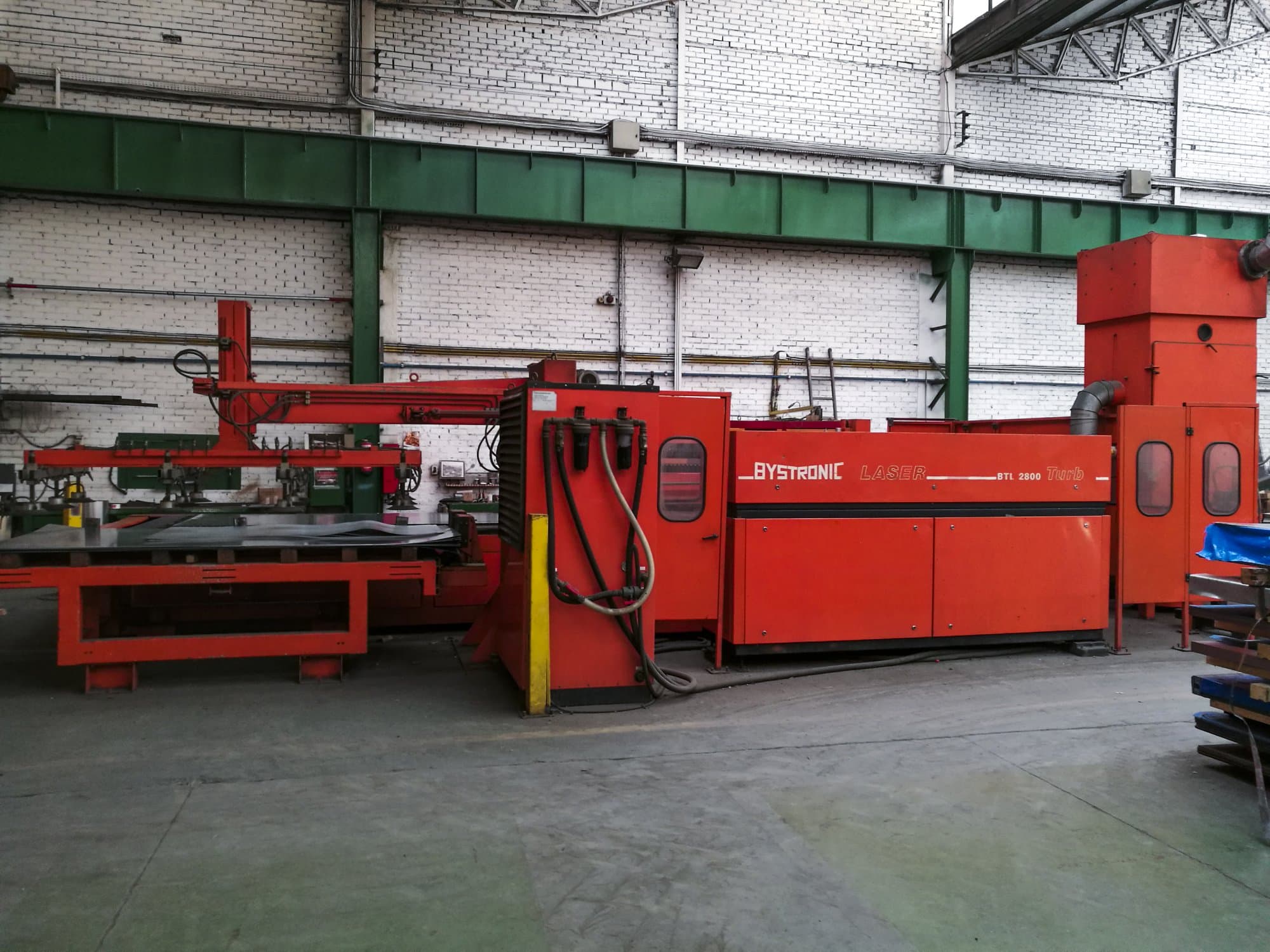

This Bystronic Bystar 3015 BTL 2800 Laser Cutting Machine was built in 1995 and has a production record of 83000 hours. This machine excels in cutting thin sheets, for which it is considered a top tier choice, as well as its ability to cutting pieces of bigger sizes and tubes. The Bystronic also includes an additional tension stabilizer and a sheet loader for automatic feeding.

Overview

brand: Bystronic
year: 1995
MODEL: Bystar 3015 BTL 2800
production hours: 83000
application type: Cutting
Location: Spain
machine type: CO2 Laser Cutting Machine

Technical Information - Bystronic Bystar 3015 BTL 2800

General Data

Measurements width: 105000 mm
Measurements depth: 7600 mm
Machine weight: 20092 kg

Main drive

Laserpower: 2.8 kW

Movement

X-AXIS Movement: 3048 mm
X-AXIS Working Feed: 50 m/mm
X-AXIS Rapid traverse: 140 m/mm
Y-AXIS Movement: 1524 mm
Y-AXIS Working Feed: 50 m/mm
Y-AXIS Rapid traverse: 140 m/mm
Z-AXIS Movement: 70 mm

Max Material thickness

Steel: 12 mm
Stainless steel: 10 mm

Media

Main electronic connection: 23.5 kVA
Air pressure: 6 bar
He consumption: 27 NL/h
CO2 consumption: 2 NL/h
N2 consumption: 12 NL/h

Additional equipment

- Tension stabilizer applied to the machine
- Sheet loader

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
