Bystronic Bystar 3015 Laser Cutting Machine

Show in original language

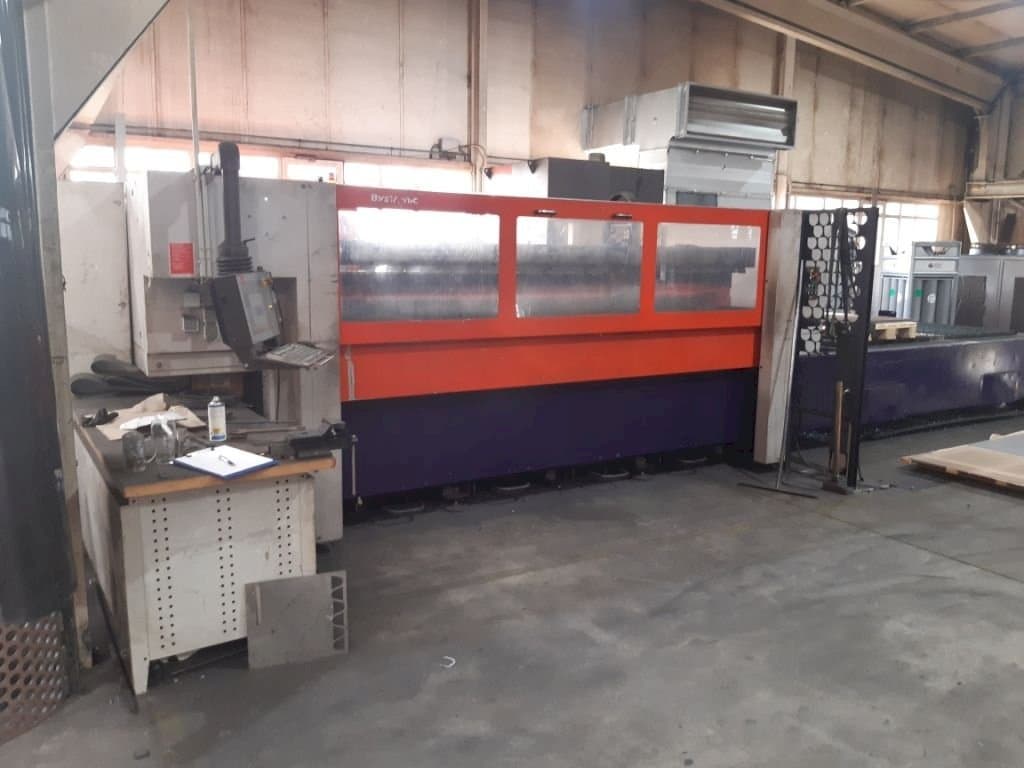

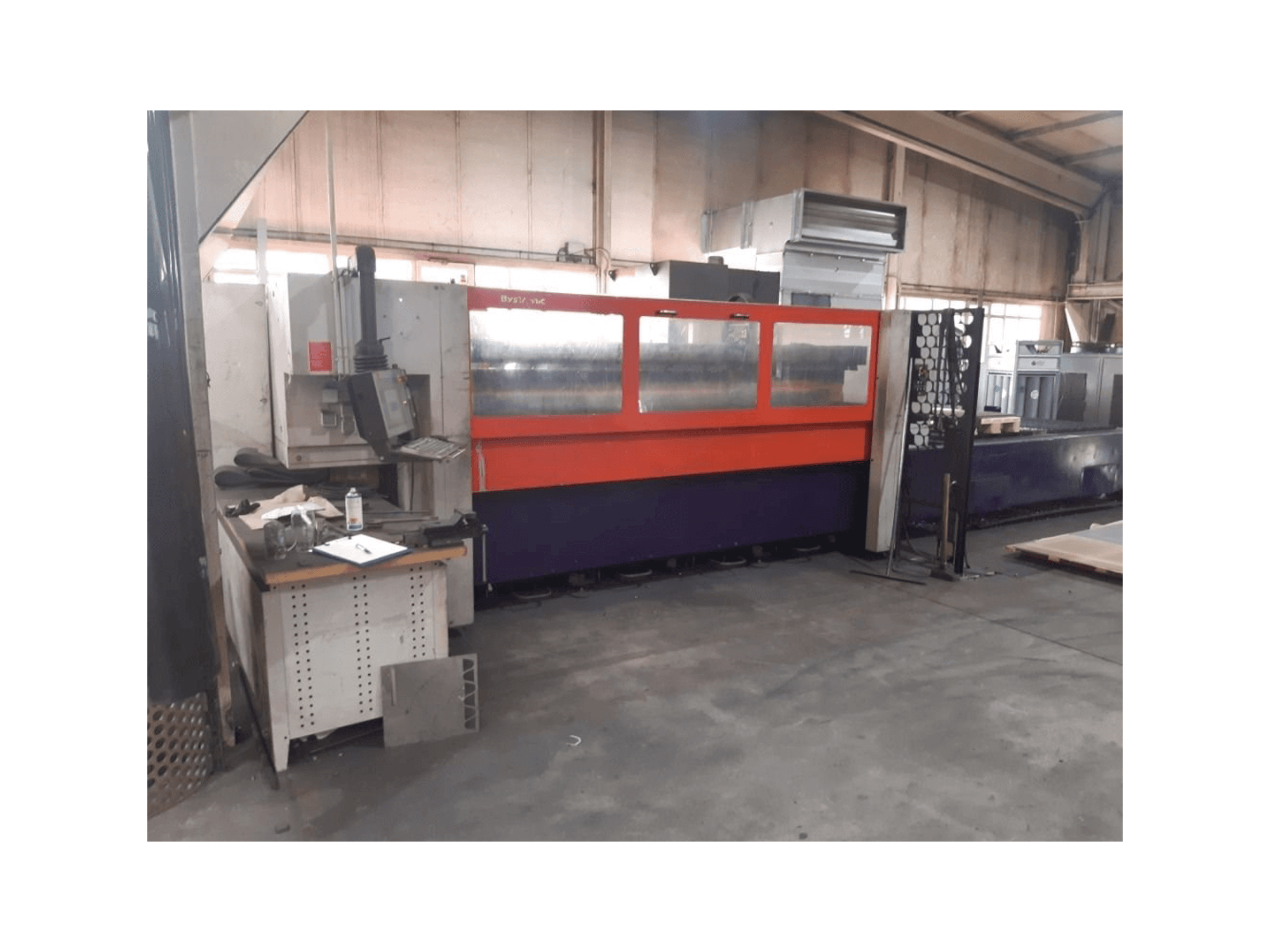

This Bystronic Bystar 3015 Laser Cutting Machine was built in the year 2009. It has 62000 production hours, from which 36000 are cutting hours. It is opperated with a Bystronic Byvision control unit. It works with a 6 kW laser power and is capable of cutting mild steel up to 25 mm of thickness. It present good conditions.

Overview

brand: Bystronic
year: 2009
MODEL: Bystar 3015
production hours: 36000
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: BYSTRONIC

Technical Information - Bystronic Bystar 3015

General Data

Measurements width: 12900 mm
Measurements depth: 7100 mm
Measurements height: 2070 mm
Machine weight: 13500 kg

Control Unit

Model: Byvision
Brand: BYSTRONIC

Main drive

Laserpower: 6 kW
Laser type: HF- semiconductor generated – magnetic drive blower

Movement

X-AXIS Movement: 3048 mm
Y-AXIS Movement: 1524 mm
Z-AXIS Movement: 170 mm

Additional Information

Machine history

Material type: Mild steel, aluminium
Material thickness: 25 mm, 12 mm

Machine Benefits

Technical Machine Benefits:
- - Laser range capacity: 150 - 6000 watt
- - Cooling unit: e. Furrer wkl 560 s1
- - Dust extraction: donaldson torrit dfpro 6 sprk
- - Electrian capacity total:74 kw machine + 5,5 kw dust extraction
- - Cutting machine with operator safety advice by cutting, loading and unloading
- - Automatic table changer
- - 2 cutting heads with 5“ + 7,5“ lenses
- - Cut control, lens break sensor
- - Bypos-w
- - Cross-jet
Qualitative Machine Benefits:
- - Service through the manufactor/company

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
