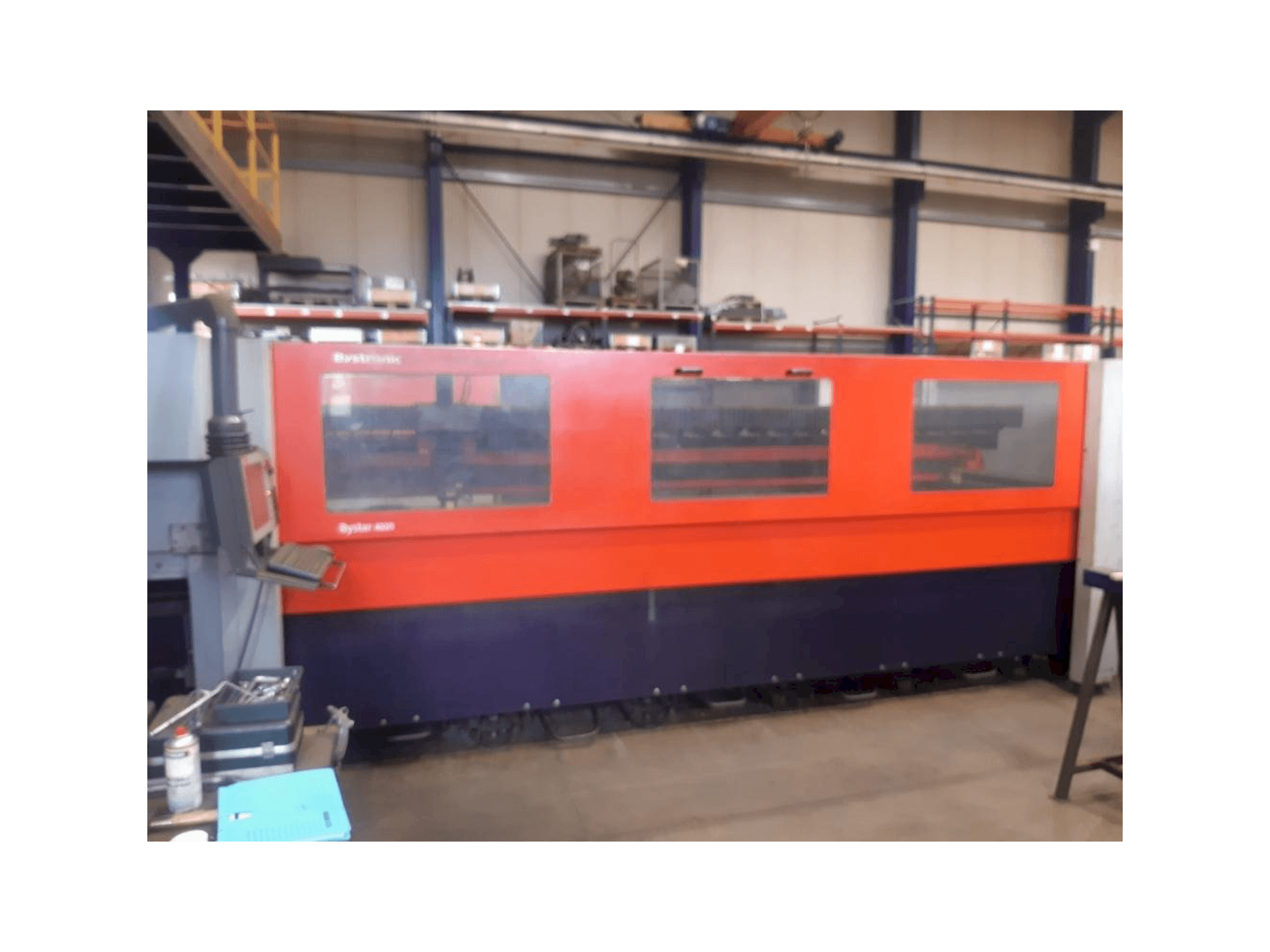

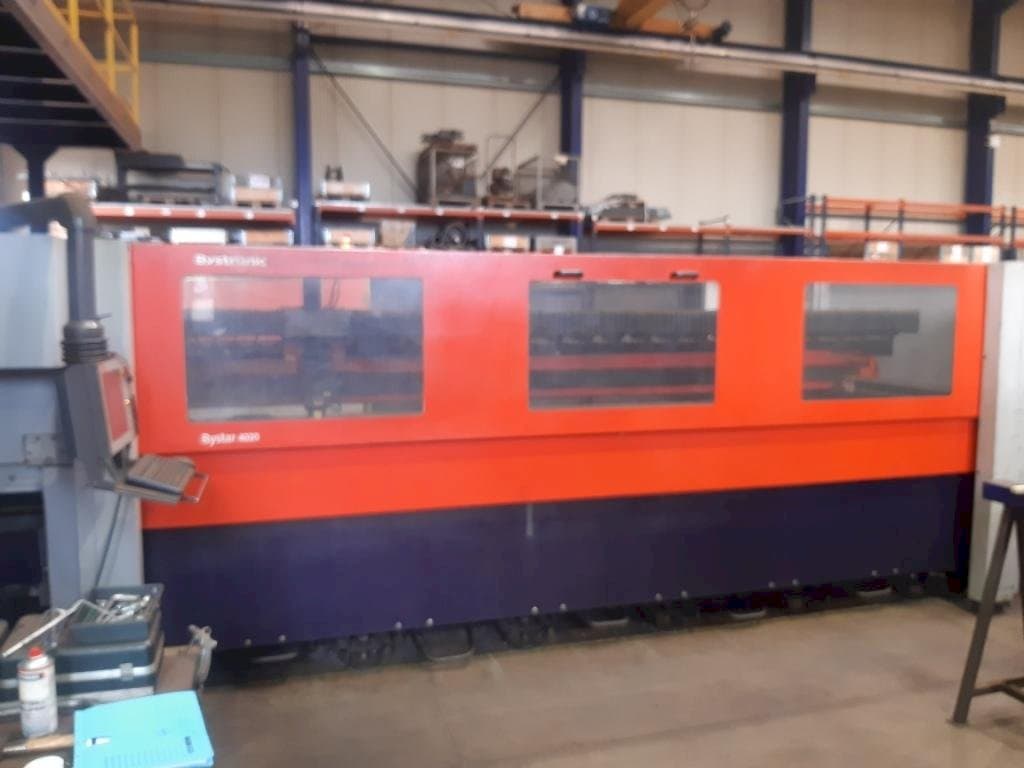

Bystronic Bystar 4020 Laser Cutting Machine

Show in original language

This Bystronic Bystar 4020 Laser Cutting Machine was made in the year 2008. It has 56000 production hours, from which 41500 are cutting hours. It is equipped with a Bystronic Byvision control unit. It works with a 6 kW laser power and is capable of cutting mild steel up to 25 mm of thickness. It has been well maintained.

Overview

brand: Bystronic
year: 2008
MODEL: Bystar 4020
production hours: 41500
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: BYSTRONIC

Technical Information - Bystronic Bystar 4020

General Data

Measurements width: 21000 mm
Measurements depth: 6700 mm
Measurements height: 2070 mm
Machine weight: 27950 kg

Control Unit

Model: Byvision
Brand: BYSTRONIC

Main drive

Laserpower: 6 kW
Laser type: HF- semiconductor generated

Movement

X-AXIS Movement: 4048 mm
Y-AXIS Movement: 2024 mm
Z-AXIS Movement: 170 mm

Additional Information

Machine history

Material type: Mild steel, aluminum
Material thickness: 25 mm, 15 mm

Machine Benefits

Technical Machine Benefits:
- - Laser range capacity: 150 - 6000 watt
- - Cooling unit: e. Furrer wkl 560 s1
- - Dust extraction: torrit df pro 6-sprk
- - Electrian capacity total: 78 kw machine + 5,5 kw extraction + 6 kw bytrans
- - Cutting machine with operator safety advice by cutting, loading and unloading
- - Automatic table changer
- - 2 cutting heads with 5“ + 7,5“ lenses
- - Cut control
- - Bypos-w
- - Cross-jet
Qualitative Machine Benefits:
- - • service through the manufactor/company

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
