Bystronic - Bystar Fiber 3015 6KW + ByTrans ExtendedDK-LAS-BYS-2019-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Bystronic Bystar Fiber 3015 6KW + ByTrans Extended Fiber Laser Cutting Machine

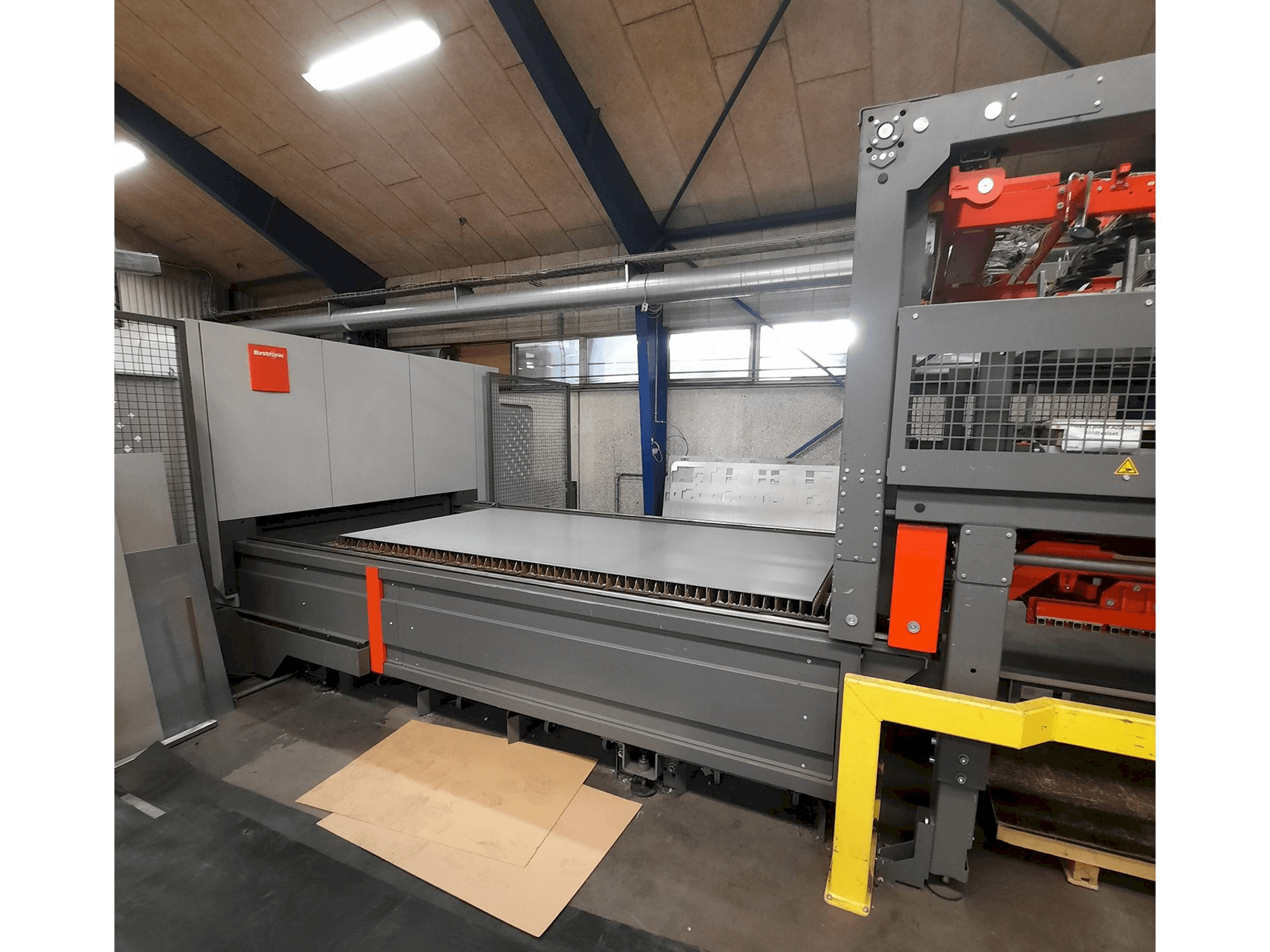

This Bystronic Bystar Fiber 3015 6KW + ByTrans Extended Fiber Laser Cutting Machine was made in the year 2019 in Switzerland. This machine has been working for 9500 hours of which 4000 are cutting hours. It works with a laser power of 6 kW. Includes ByTrans Extended 3015 with 2 cassettes incl. copper gratings.
Overview
- brand: Bystronic
- year: 2019
- MODEL: Bystar Fiber 3015 6KW + ByTrans Extended
- production hours: 9500
- application type: Cutting
- Location: Denmark
- machine type: Fiber Laser Cutting Machine
Technical Information - Bystronic Bystar Fiber 3015 6KW + ByTrans Extended
Dimensions
- Machine Depth: 12150 mm
- Machine Height: 3200 mm
- Machine Weight: 11000 kg
- Table Length: 3000 mm
- Table Width: 1500 mm
Technical Specification
- Laser Power: 6 kW
Additional Information
Additional equipment
- Detection Eye
- Dust extraction system with barrel
- Automatic nozzle changer with 64 positions
- Workpiece and cross conveyor in the cutting area
- Collection bins below the feed area (on across)
- ByTrans Extended 3015 with 2 cassettes incl. copper gratings
- Extra suction cup for plate separation for ByTrans Extended
Machine Benefits
Technical Machine Benefits
- Cuttinf area x 3100 mm / cutting area y 1580 mm
- Maximum simultaneous positioning speed 169 m/min
- Laser shards fiber 6000
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
