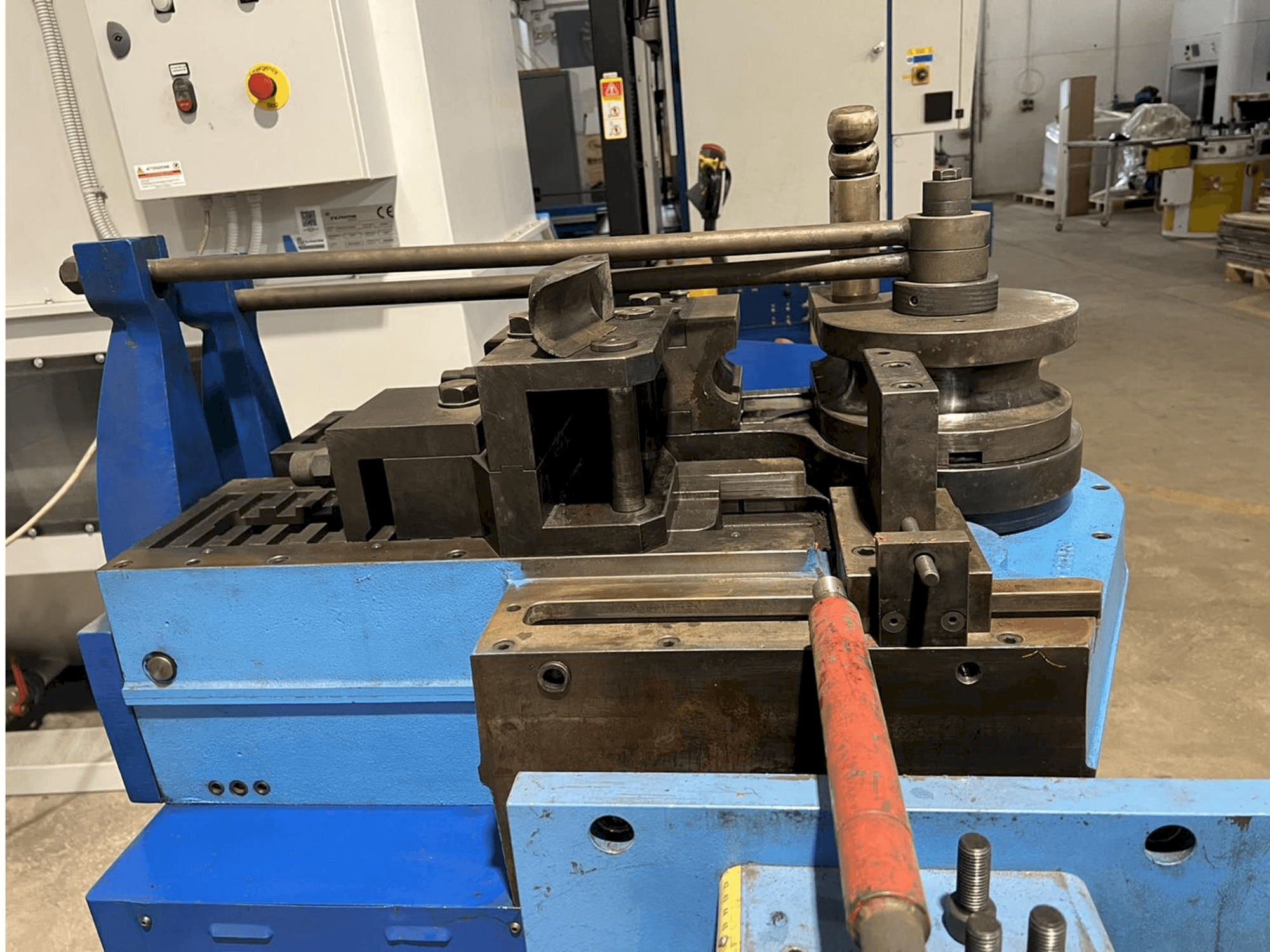

CBC Uni 90 Tube Bending Machine.

Show in original language

This CBC Uni 90 Tube Bending Machine was made in 2006 in Italy. It is equipped with a CBC control unit and counts with 18000 production hours. The machine works with a maximum bending angle of 180 degrees and a min-max bending radius of 50 - 250 mm. It includes a tool set for the pipe D42 R = 84.

Overview

brand: CBC
year: 2006
MODEL: Uni 90
production hours: 18000
application type: Bending
Location: Estonia
machine type: Roll Bending Machine

Technical Information - CBC Uni 90

General Data

Measurements width: 1100 mm
Measurements depth: 700 mm
Measurements height: 1270 mm
Machine weight: 970 kg

Media

Main electronic connection: 400V/ 50Hz

Additional Information

Additional equipment

tool set for the pipe D42 R = 84

Machine Benefits

Qualitative Machine Benefits

A steel form that allows you to bend the pipes with a diameter of more than 35 mm
Includes machine manual.

Technical Machine Benefits

Machine tool with large diameter pipes, air -walled pipes
Engine 4. 0 kw with inverter -380v/ 50hz
Maximum bending angle 180 degrees.
A digital control block for programming, controlling and restoring a multilingual microprocessor with a multilingual microprocessor. He is able to maintain 50 programs, up to 9 bends in each program.
Automatic tool refund after stopping the bending cycle.
Electric brake.
Digital control hydraulic system for opening and closing the press and bending tools.
Min bending radius - 50 mm max bending radius - 250 mm
Mechanical positioning device for 3d bending.
A steel form that allows you to bend the tubes with a diameter of up to 35 mm.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
