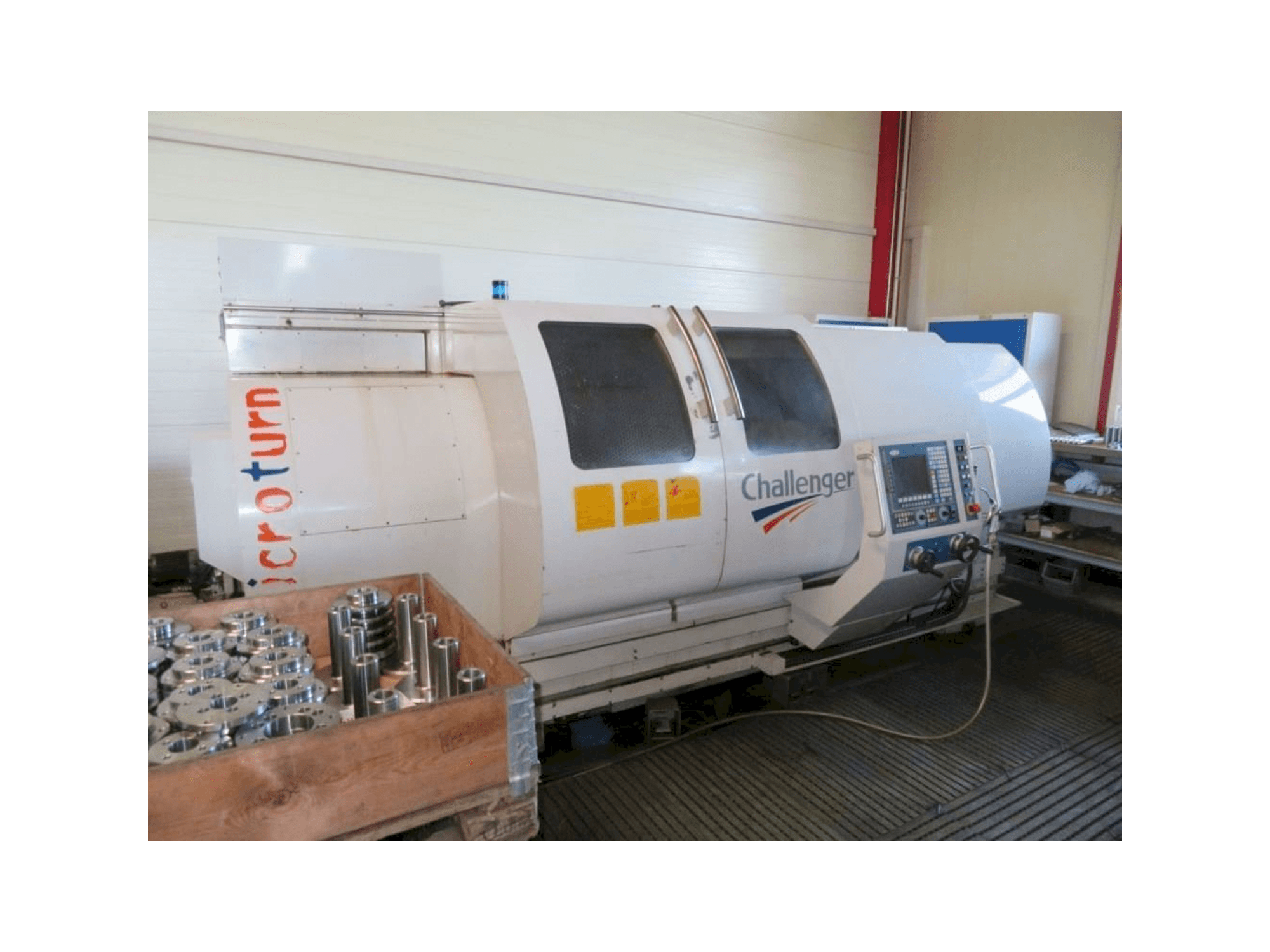

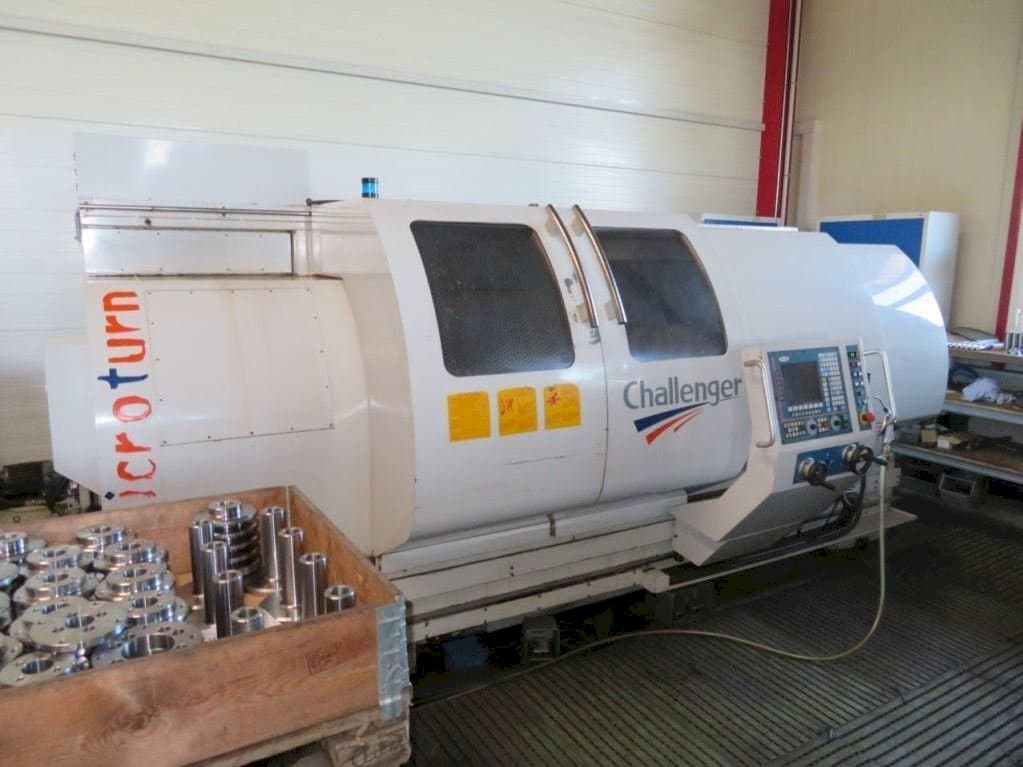

Front view of Challenger Microturn BNC 2680 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Challenger Microturn BNC 2680

Photo Gallery

Challenger - Microturn BNC 2680DE-TUR-CHA-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Challenger Microturn BNC 2680

Show in original language

This Challenger Microturn BNC 2680 Lathe from 2007 was made in Taiwan. This 2 axis machine has been operative for 16137 hours. It is equipped with a FAGOR 8055 TC-A control unit. This machine works with a spindle speed range 80-3500 rpm infinitely variable and a spindle bore: 82 mm. It includes an additional fixed lynette.

Overview

brand: Challenger
year: 2007
MODEL: Microturn BNC 2680
production hours: 16137
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FAGOR

Technical Information - Challenger Microturn BNC 2680

General Data

Measurements width: 4000 mm
Measurements depth: 2400 mm
Measurements height: 2400 mm
Machine weight: 5000 kg

Control Unit

Model: 8055 TC-A
Brand: FAGOR

Main drive

Spindle speed range: 80-3500 1/MIN
Spindle bore: 82 mm
Tool taper: ASA A1-8
Number of axis: 2

Movement

X-AXIS Movement: 345 mm
Z-AXIS Movement: 2150 mm

Workpiece

Workpiece weight: 2000 kg

Turret

Tool taper: TB 160

Tools

Type of tool holder: VDI 40

Media

Main electronic connection: 400 v 50 hz
Power consumption: 11/15 kw

Additional equipment

- additional fixed lynette (own construction)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Centre height: 315 mm
- - Max. Turning diameter: 680 mm
- - Max. Turning length: 2000 mm
- - Max. Turning diameter over cross slide: 410 mm
- - Rapid traverse 15 rpm
- - Three-jaw chuck: hydr. Chuck strong type n210
- - Bar capacity: 69 mm incl. Various hard and soft jaws
- - Automatic tool turret: fabr. Baruffaldi, 8-position

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
