CHARMILLES 290P

Photo Gallery

CHARMILLES - 290PPT-EDM-CHA-1999-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

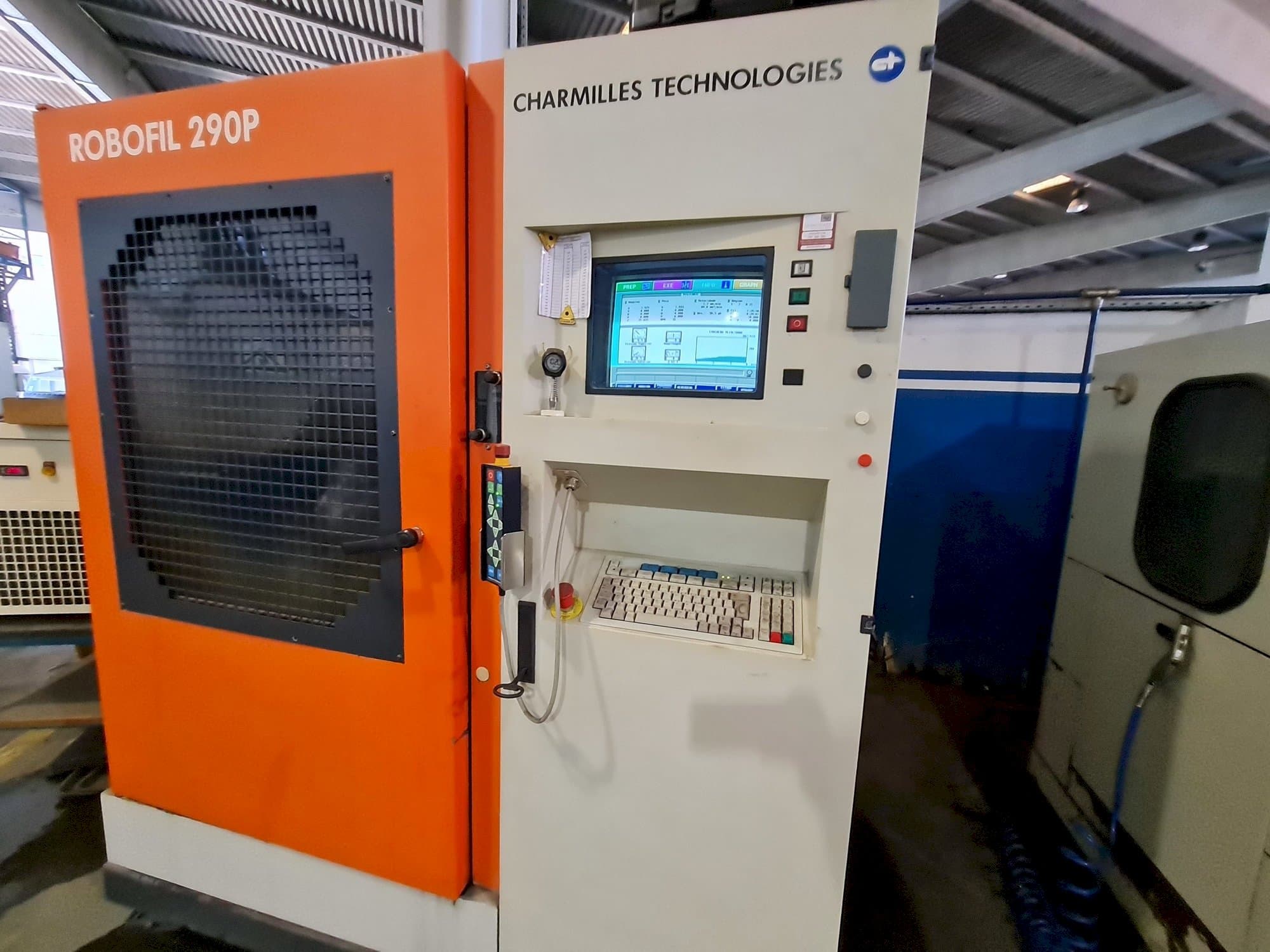

CHARMILLES 290P Erosion machine

Show in original language

This CHARMILLES 290P Erosion machine was made in Switzerland in 1999. It has 6000 hours. It is equipped with a control unit of the same brand. This 5 axis machine has a table dimensions 850 x 500 mm. It comes with protection against collisions in their axes. Includes various accessories.

Overview

brand: CHARMILLES
year: 1999
MODEL: 290P
production hours: 6000
application type: EDM
Location: Portugal
machine type: Wire EDM Machine
control unit brand: CHARMILLES

Technical Information - CHARMILLES 290P

General Data

Measurements width: 1800 mm
Measurements depth: 1600 mm
Measurements height: 2130 mm
Machine weight: 2200 KG

Control Unit

Model: CONSOLE 2 (5 axis)
Brand: CHARMILLES

Main drive

Wire diameter: 0.25 mm
Number of axis: 5

Movement

X-AXIS Movement: 400 MM
Y-AXIS Movement: 250 MM
Z-AXIS Movement: 200 MM
V-Axis Movement: 250 MM
U-Axis Movement: 400 MM

Workpiece

Workpiece weight: 500 KG

Table

Outer length: 850 MM
Outer width: 500 MM

Media

Main electronic connection: 3 x 380V / 50Hz
Power consumption: 10 kVA

Additional Information

Additional equipment

Various accessories

Machine Benefits

Technical Machine Benefits

Tilt angle - height: +30/200 º/ min
Axis protection against collisions: x, y, u, v, z
Part max. Dimensions: 850 x 500 x 200 mm
Part max. Weight: 500 kg
X x y x z strokes: 400 x 250 x 400 mm
U x v stroke: 400 x 250 mm
Tank capacity: 300 l
Generator: 10 kva

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
