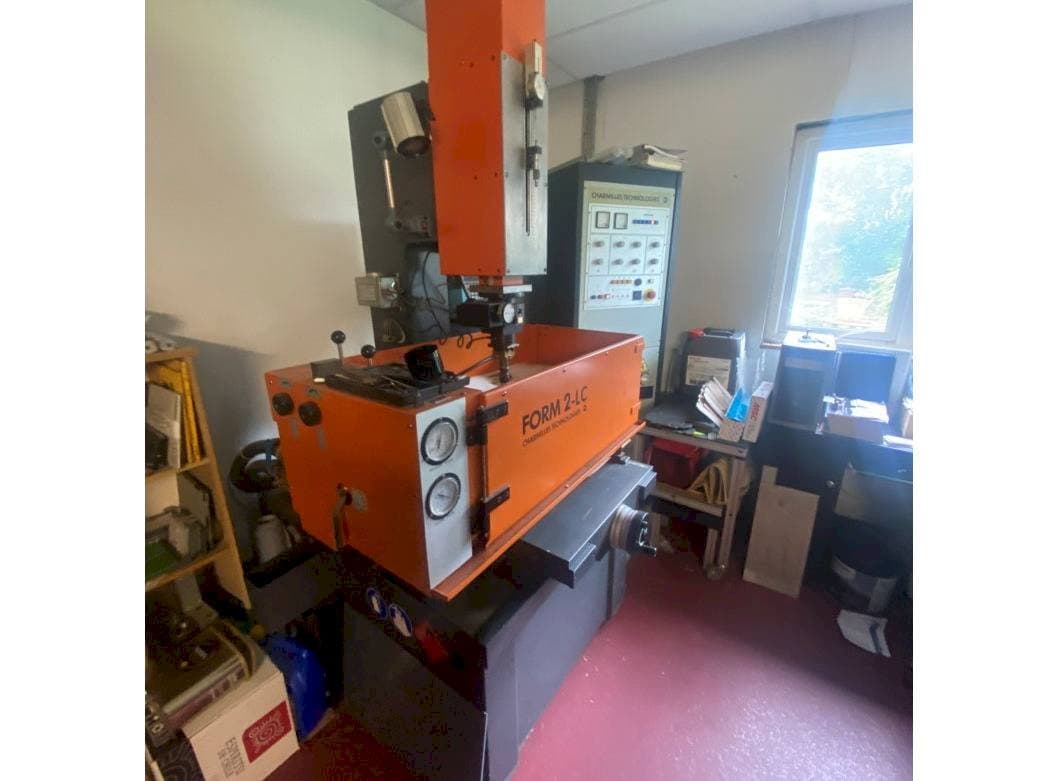

Front view of CHARMILLES Form 2-LC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

CHARMILLES Form 2-LC

Photo Gallery

CHARMILLES - Form 2-LCIE-EDM-CHA-1994-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CHARMILLES Form 2-LC | EDM Machine

Show in original language

This Charmilles Form 2-LC Erosion machine was manufactured in the year 1994 in Taiwan. It is equipped with a Charmilles Technologies control unit and has 3 axis. The machine has a table of 500 x 350 mm and includes a Wizard 3 Axis DRO as additional equipment.

Overview

brand: CHARMILLES
year: 1994
MODEL: Form 2-LC
application type: EDM
Location: Ireland
machine type: Die-Sinking EDM Machine
availability: Sold
control unit brand: CHARMILLES

Technical Information - CHARMILLES Form 2-LC

General Data

Measurements width: 1200 mm
Measurements depth: 1300 mm
Measurements height: 2200 mm
Machine weight: 1100 kg

Control Unit

Brand: CHARMILLES

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: 200 mm
Z-AXIS Movement: 200 mm

Workpiece

Workpiece weight: 500 kg

Table

Outer length: 500 mm
Outer width: 350 mm

Media

Main electronic connection: 400 V

Additional equipment

- Wizard 3 Axis DRO

Additional Information

Machine history

End product: Press tool repair

Machine Benefits

Technical Machine Benefits:
- - Worktank dimensions: 820 x 500 x 300mm
- - Reservoir capacity: 280l
- - No. Of filter cartridges: 4

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
