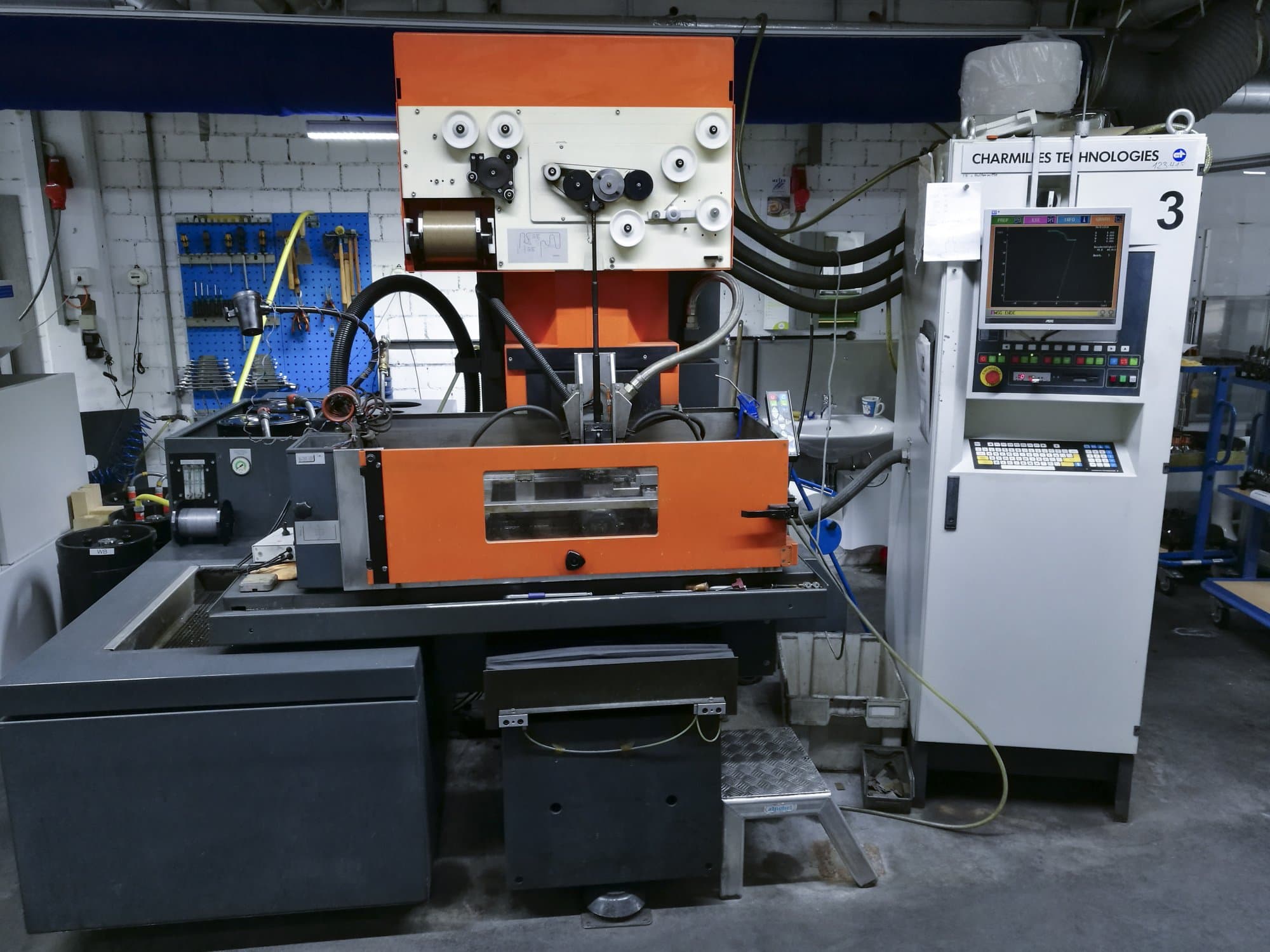

CHARMILLES ROBOFIL 2020-1 Erosion Machine

Show in original language

This CHARMILLES ROBOFIL 2020-1 Erosion Machine has been manufactured in 1996 in Switzerland and has a working history of approximately 49000 production hours. Equipped with a CHARMILLES Control Unit, this machine is excellent conditions. During past maintenance works, the machine got its X-Axis (2008) and Y-Axis (2015) replaced and a larger filter system installed (2015).

Overview

brand: CHARMILLES
year: 1996
MODEL: ROBOFIL 2020-1
production hours: 49000
application type: EDM
Location: Germany
machine type: Wire EDM Machine
availability: Sold
control unit brand: CHARMILLES

Technical Information - CHARMILLES ROBOFIL 2020-1

General Data

Measurements width: 2200 mm
Measurements depth: 2520 mm
Measurements height: 2295 mm
Machine weight: 2400 kg

Control Unit

Brand: CHARMILLES

Main drive

Number of spindles: 1
Wire diameter: 0.1 - 0.25 mm

Movement

X-AXIS Movement: 320 mm
Y-AXIS Movement: 220 mm
Z-AXIS Movement: 116 mm

Workpiece

Workpiece x: 990 mm
Workpiece y: 505 mm
Workpiece z: 150 mm
Workpiece weight: 500 kg

Media

Main electronic connection: 380/400 V
Power consumption: 12 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
