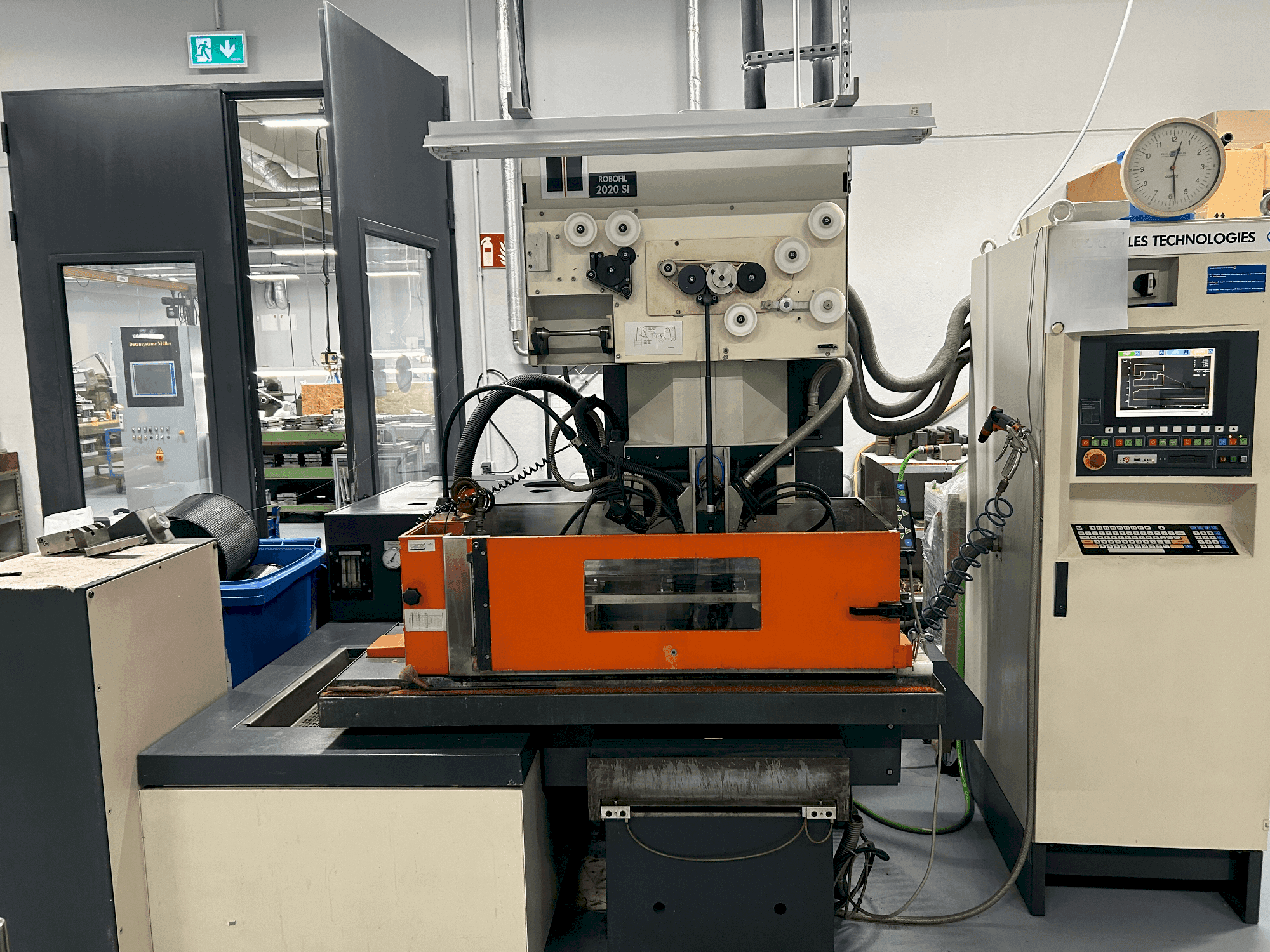

Front view of CHARMILLES ROBOFIL 2020 SI machine
Front view of CHARMILLES ROBOFIL 2020 SI machine

CHARMILLES - ROBOFIL 2020 SIDE-EDM-CHA-1996-00003

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This CHARMILLES Robofil 2020 SI Erosion Machine was made in 1996 in Switzerland. It has been working for approximately 73000 hours. It operates in solid conditions without any problems and can be inspected under production. In the delivery scope all standard accessories are available (except clamping devices). For more information see PDF attached.

Overview

  • brand: CHARMILLES
  • year: 1996
  • MODEL: ROBOFIL 2020 SI
  • production hours: 73000
  • application type: EDM
  • Location: Germany
  • machine type: Wire EDM Machine
  • availability: Sold

Technical Information - CHARMILLES ROBOFIL 2020 SI

General Data

  • Measurements width: z2305 MM
  • Measurements depth: 1750 MM
  • Measurements height: 2250 MM
  • Machine weight: 2440 kg

Movement

  • X-AXIS Movement: 320 mm
  • Y-AXIS Movement: 220 mm
  • Z-AXIS Movement: 116 mm

Table

  • Inner length: 990 mm
  • Inner width: 505 mm
  • Table load: max. 500 kg

Media

  • Main electronic connection: 50 Hz/60 Hz

    Additional equipment

    • - Standard accessories of scope of original delivery are included (excluding clamping devices)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max. Workpiece dimensions: 990 x 505 mm
        • - Max. Workpiece height with immersion: 150 mm
      • Qualitative Machine Benefits:
        • - Machine is currently in full operation without any problems
        • - Machine can be inspected under production conditions

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
