➤ Used CHARMILLES Robofil 440 CC For Sale | gindumac.com

Show in original language

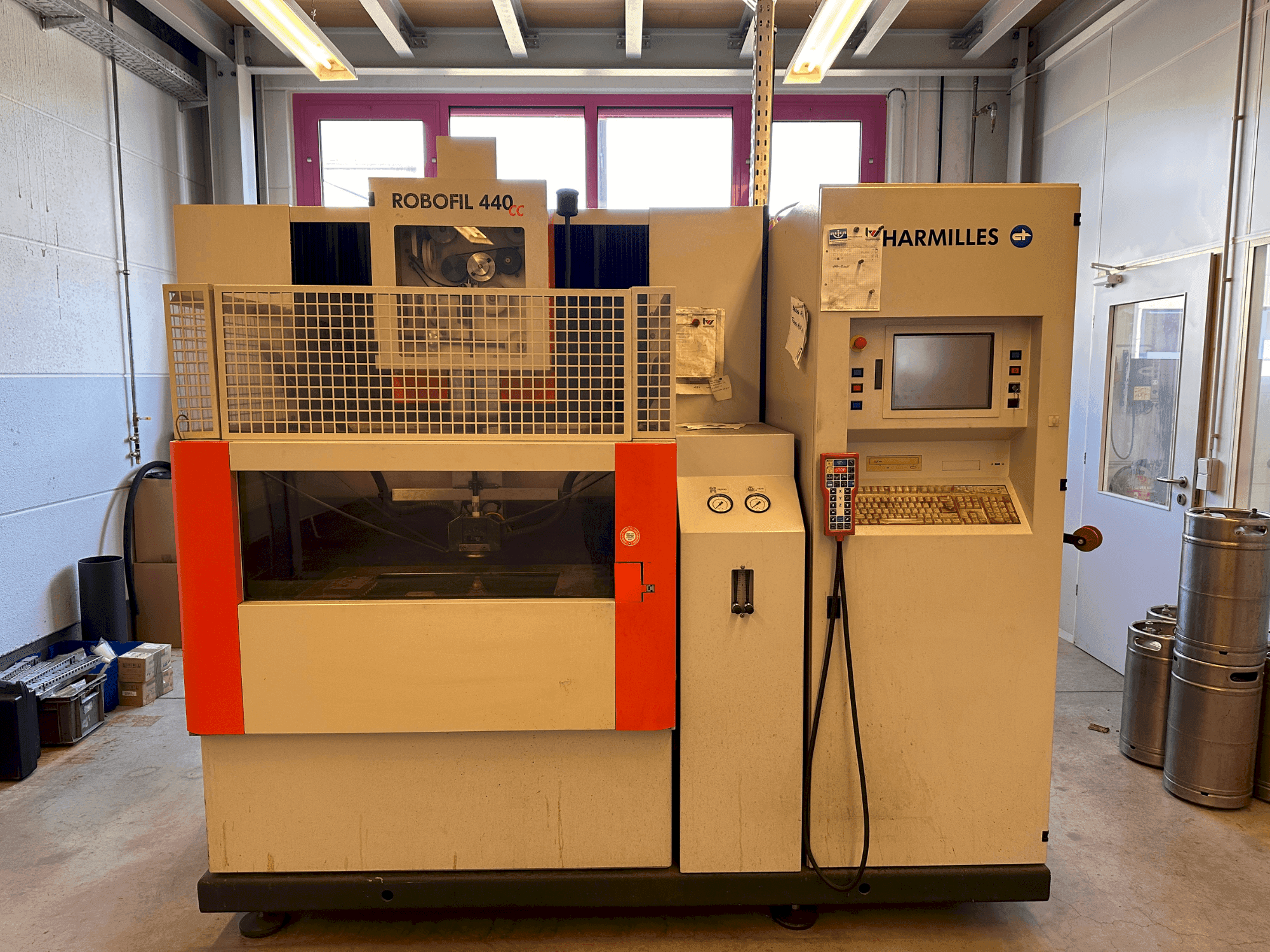

This 3-axis CHARMILLES Robofil 440 CC was manufactured in 2007 and features a robust design with a total system weight of 4450 kg when filled with dielectric. It can handle workpieces up to 1500 kg, with maximum dimensions of 1200 x 700 x 400 mm. Ideal for precision wire EDM processes, this machine offers a comprehensive control system with a TFT 12" screen. If you are looking to get high-quality EDM capabilities consider the CHARMILLES Robofil 440 CC machine we have for sale. Contact us for more information.

Overview

brand: CHARMILLES
year: 2007
MODEL: Robofil 440 CC
production hours: 0
application type: EDM
Location: Germany
machine type: Wire EDM Machine

Technical Information - CHARMILLES Robofil 440 CC

General Data

Measurements width: 2810 mm
Measurements depth: 2600 mm
Measurements height: 2080 mm
Machine weight: 4450 kg

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 350 mm
Z-AXIS Movement: 400 mm

Workpiece

Workpiece x: 1200 mm
Workpiece y: 400 mm
Workpiece z: 700 mm
Workpiece weight: 1500 kg

Injection Unit

Injection pressure: 2/4/8/13 bar

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Total dielectric volume: 1200 l
- - Min. /max. Dielectric thickness: 0/435 mm
- - Standard wire guides: 0. 25 mm
- - Three-phase input voltage: 400 v
- - Mains frequency (2 versions): 50 or 60 hz
- - Power factor: 0. 8
- - Total installed power: 10 kva
- - Permissible fluctuations: ±10%
- - Permissible micro-interruptions: 4 ms
- - Compressed air supply: 6-7 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
