- Charmilles ROBOFORM 54 Erosion Machine

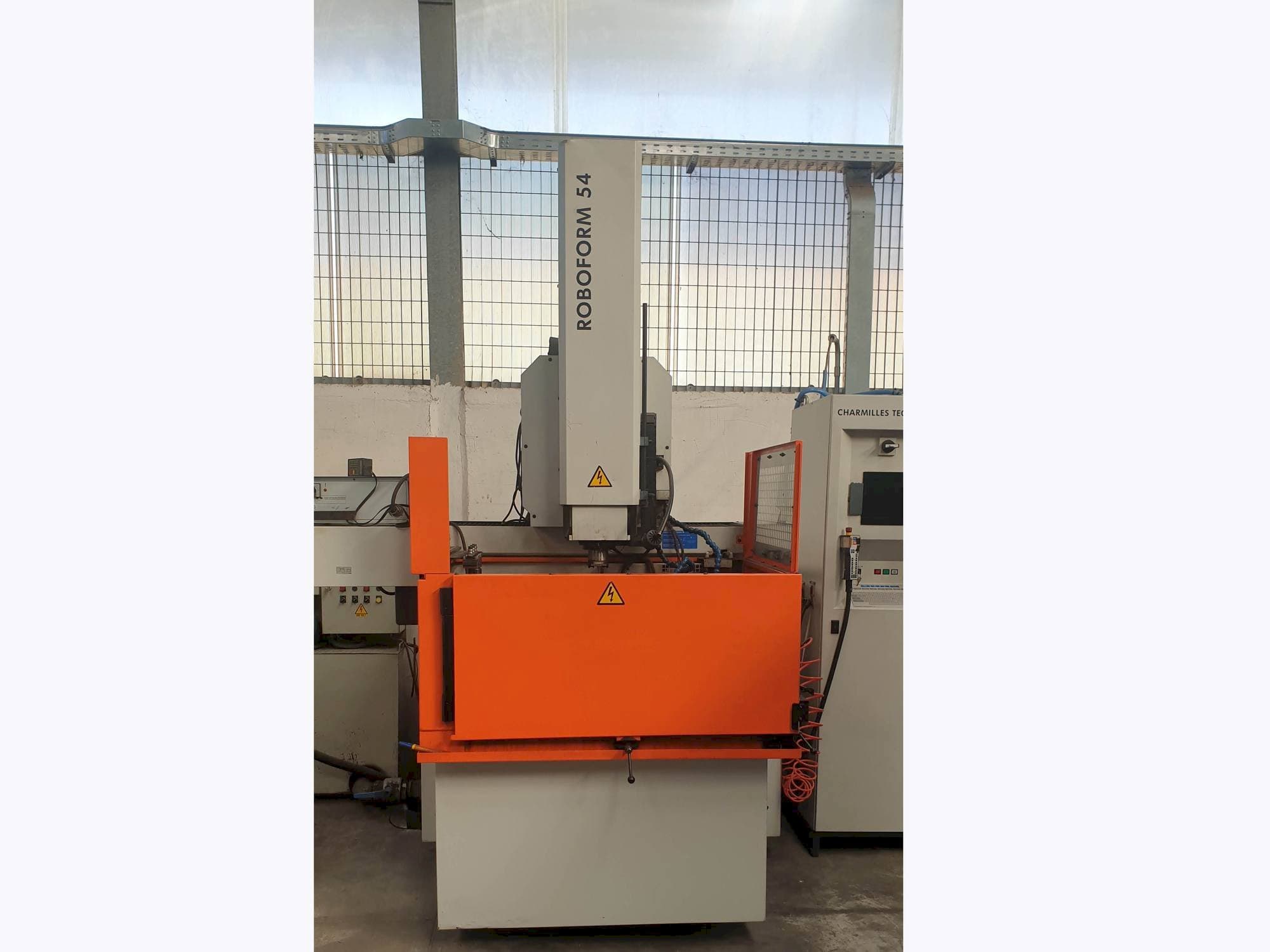

This Charmilles ROBOFORM 54 Erosion Machine was built in 2000. This machine has a max. speed of 15 mm/s and an axis rotation of 100 tr/mn.
Overview
- brand: CHARMILLES
- year: 2000
- MODEL: ROBOFORM 54
- application type: EDM
- Location: Italy
- machine type: Die-Sinking EDM Machine
- availability: Sold
Technical Information - CHARMILLES ROBOFORM 54
General Data
- Measurements width: 2850 mm
- Measurements depth: 2300 mm
- Measurements height: 1560 mm
- Machine weight: 3430 kg
Movement
- X-AXIS Movement: 600 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 450 mm
Table
- Outer length: 600 mm
- Outer width: 500 mm
- Table load: 1000 kg
Media
- Main electronic connection: 50 HZ
- Power consumption: 64 A
Additional Information
- Technical Machine Benefits:
- - Max. Speed: 15 mm/s
- - C-axis rotation speed: 100 tr/mn
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
