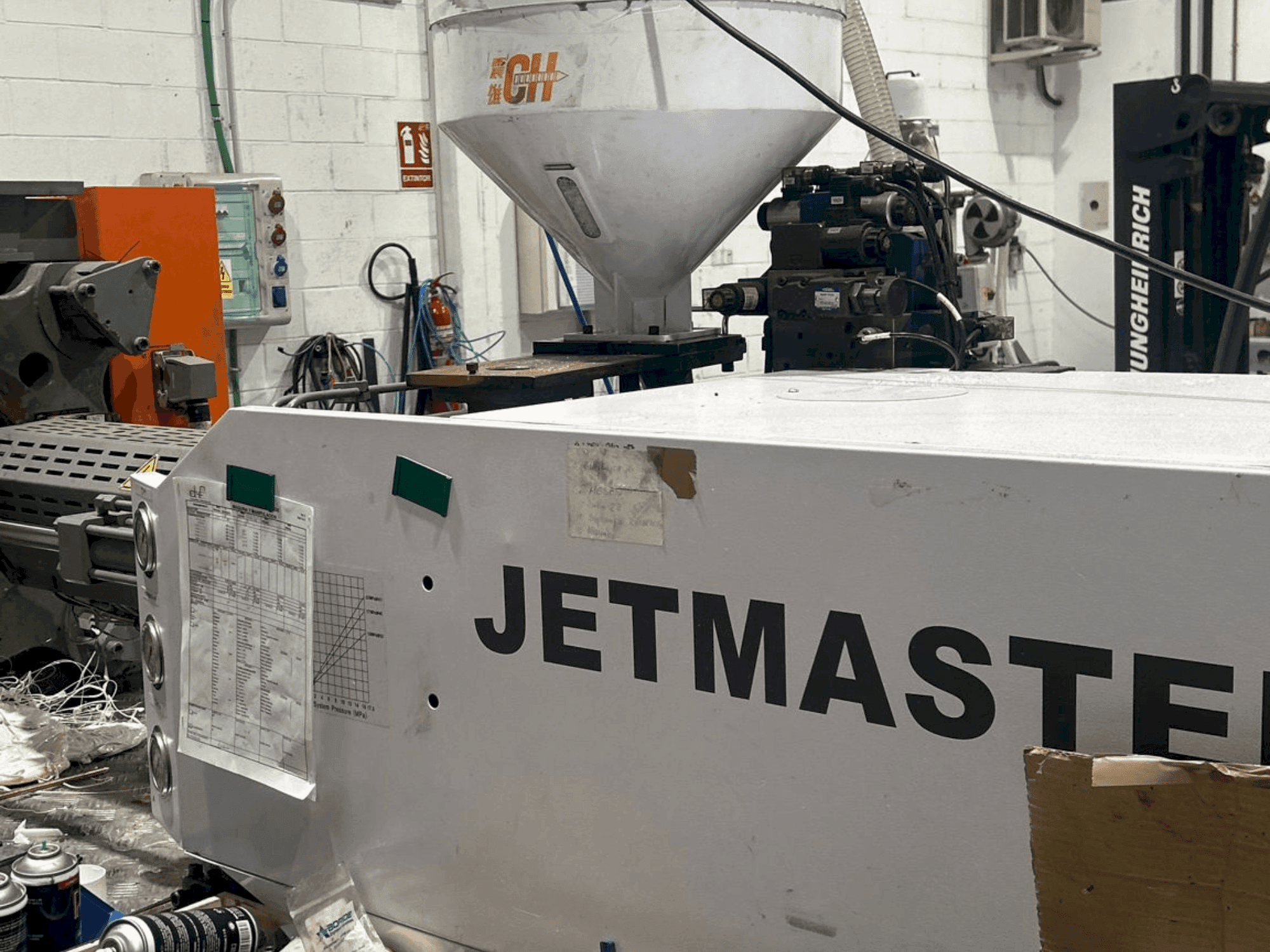

Front view of CHEN HSONG JM160-MK6e machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

CHEN HSONG JM160-MK6e

Photo Gallery

CHEN HSONG - JM160-MK6eES-INJ-CHE-2023-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used CHEN HSONG JM160-MK6e For Sale | gindumac.com

Show in original language

This CHEN HSONG JM160-MK6e was manufactured in 2023. It is a hydraulic injection moulding machine, ideal for precision and efficiency in plastic processing tasks. Consider the opportunity to buy this CHEN HSONG JM160-MK6e hydraulic injection moulding machine. Contact us for more information.

Overview

brand: CHEN HSONG
year: 2023
MODEL: JM160-MK6e
production hours: 0
application type: Injection Moulding
Location: Spain
machine type: Hydraulic Injection Moulding Machine

Technical Information - CHEN HSONG JM160-MK6e

General Data

Measurements width: 1300 mm
Measurements depth: 5200 mm
Measurements height: 1900 mm
Machine weight: 5500 kg

Injection Unit

Screw diameter: 45 / 50
Shot weight: 209 / 246 g
Stroke volume: 220 mm CM³
Injection pressure: 206 / 159 BAR

Clamping unit

Clamping force: 168 t KN
Max open daylight: 970 mm
Ejector stroke: 130 mm
Ejector force for / back: 52 kN

Media

Pump drive power: 14 kW
Oil tank: 270 L

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Shot volume (cm³): 209 / 271
- - L/d ratio: 23. 5 / 21. 1
- - Injection rate (cm³/s): 136 / 176
- - Plasticizing capacity (g/s): 20 / 25
- - Screw stroke (mm): 220
- - Nozzle stroke (mm): 300 // nozzle contact force (kn): 35
- - Clamping stroke (mm): 450
- - Platen distance (mm): 470 x 470
- - Min. Mold thickness (mm): 200 // max. Mold thickness (mm): 520
- - Center ring diameter (mm): 125

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
