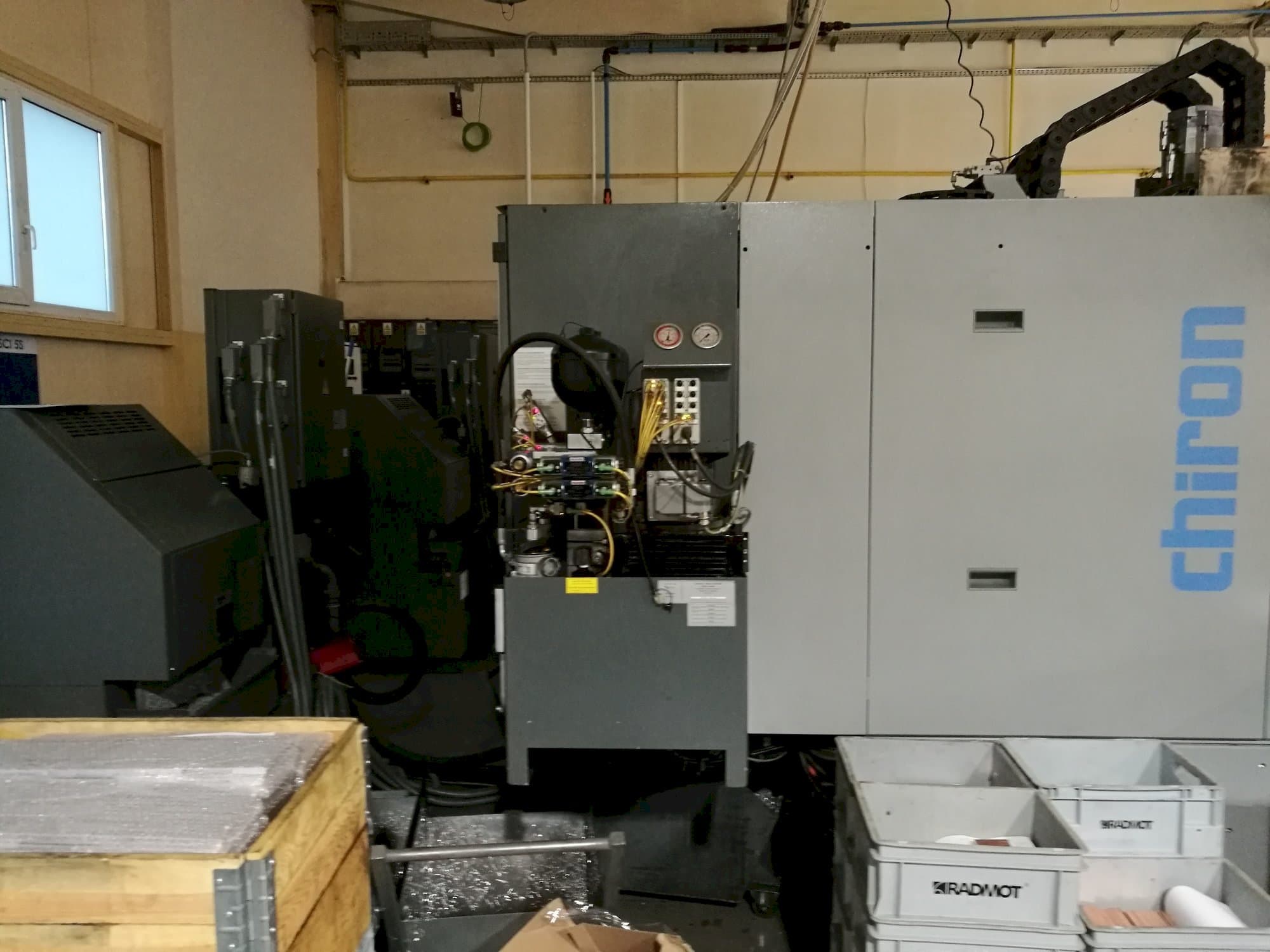

CHIRON FZ 12 KS Vertical Machining Center

Show in original language

This CHIRON FZ 12 KS Vertical Machining Center from 2011 was made in Germany. Equipped with a SIEMENS SINUMERIK 840 D Control unit, this machine presents a very well maintained status. Several additional equipment is included.

Overview

brand: CHIRON
year: 2011
MODEL: FZ 12 KS
production hours: 0
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - CHIRON FZ 12 KS

General Data

Measurements width: 1473 mm
Measurements depth: 3125 mm
Measurements height: 2640 mm
Machine weight: 6800 kg

Control Unit

Model: SINUMERIK 840 D
Brand: SIEMENS

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 360 mm

Table

Outer length: 280 mm

Media

Power consumption: 52 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- 64 PCS TOOL SPACE
- FLEXCELL UNO PALET WAREHOUSE WITH ROBOT
- TOOLS UP 125 MM
- BELT CONVEYOR FOR CHIPS
- OMP 402 LS MEASURING SYSTEM RENISHAW
- 12 PCS OF PALET
- HYDRAULIC AGREGATE 210 BAR
- KFA500 UNIT FOR COOLING LIQUIDES
- ROBOT TYPE FANUC LP MATE 200C

Additional Information

Machine history

Material type: Titanium, stainless steel, hard materials

Machine Benefits

Technical Machine Benefits:
- - Hard materials, compact
- - Spindle tool hsk a 50 din 69893
- - 2 axis swivel rotary table casd 280
- - Automation system with a palette storage flexcell uno
Qualitative Machine Benefits:
- - Serviced by chiron's factory service

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
