CHIRON FZ 18L

Photo Gallery

CHIRON - FZ 18LHR-MIL-CHI-1996-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

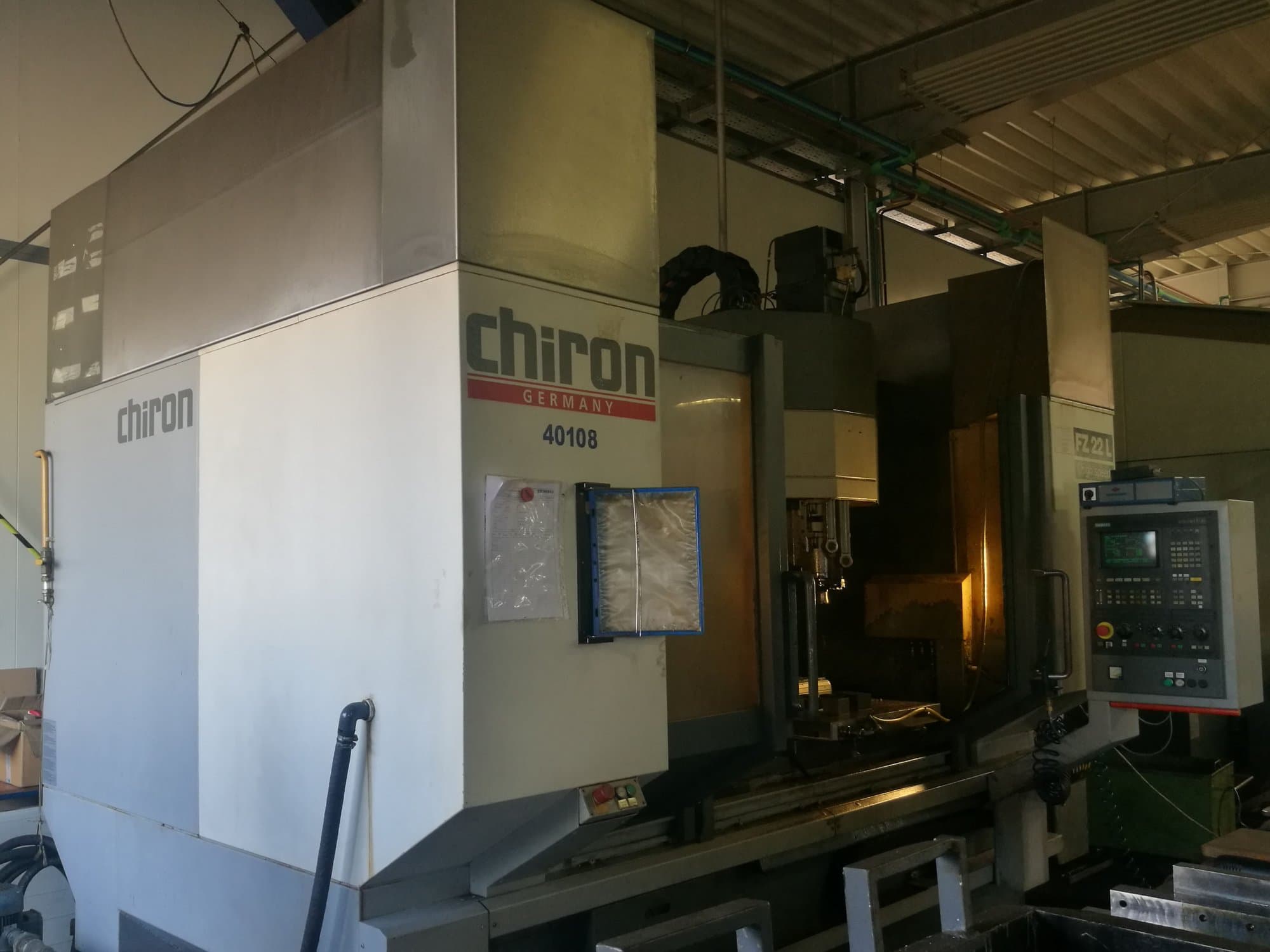

Chiron FZ 18L Vertical Machining Center

Show in original language

This Chiron FZ 18L Vertical Machining Center from 1996 was manufactured in Germany and has a production time of approximately 55000 working hours since then. Operated through a SIEMENS SINUMERIK 810 Control Unit, this fast and well maintained machine has mainly worked with aluminium and titan during the past.

Overview

brand: CHIRON
year: 1996
MODEL: FZ 18L
production hours: 55000
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - CHIRON FZ 18L

General Data

Measurements width: 5665 mm
Measurements depth: 3160 mm
Measurements height: 3000 mm
Machine weight: 7200 kg

Control Unit

Model: SINUMERIK 810
CNC main language: German
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 10500 1/min

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 425 mm

Table

Outer length: 2300 mm
Outer width: 400 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 50 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

Automatic Tool Changer with 36 tool slots
Rotary unit Piesler GRT160
Chip conveyor knoll

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
