CHIRON - Mill 2000 High DynamicsDE-MIL-CHI-2018-00002

Name: CHIRON Mill 2000 High Dynamics
Brand: CHIRON
SKU: DE-MIL-CHI-2018-00002
Price: 13201800 INR
Availability: InStock

Rs. 13,201,800

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CHIRON Mill 2000 High Dynamics | Machining Center

Show in original language

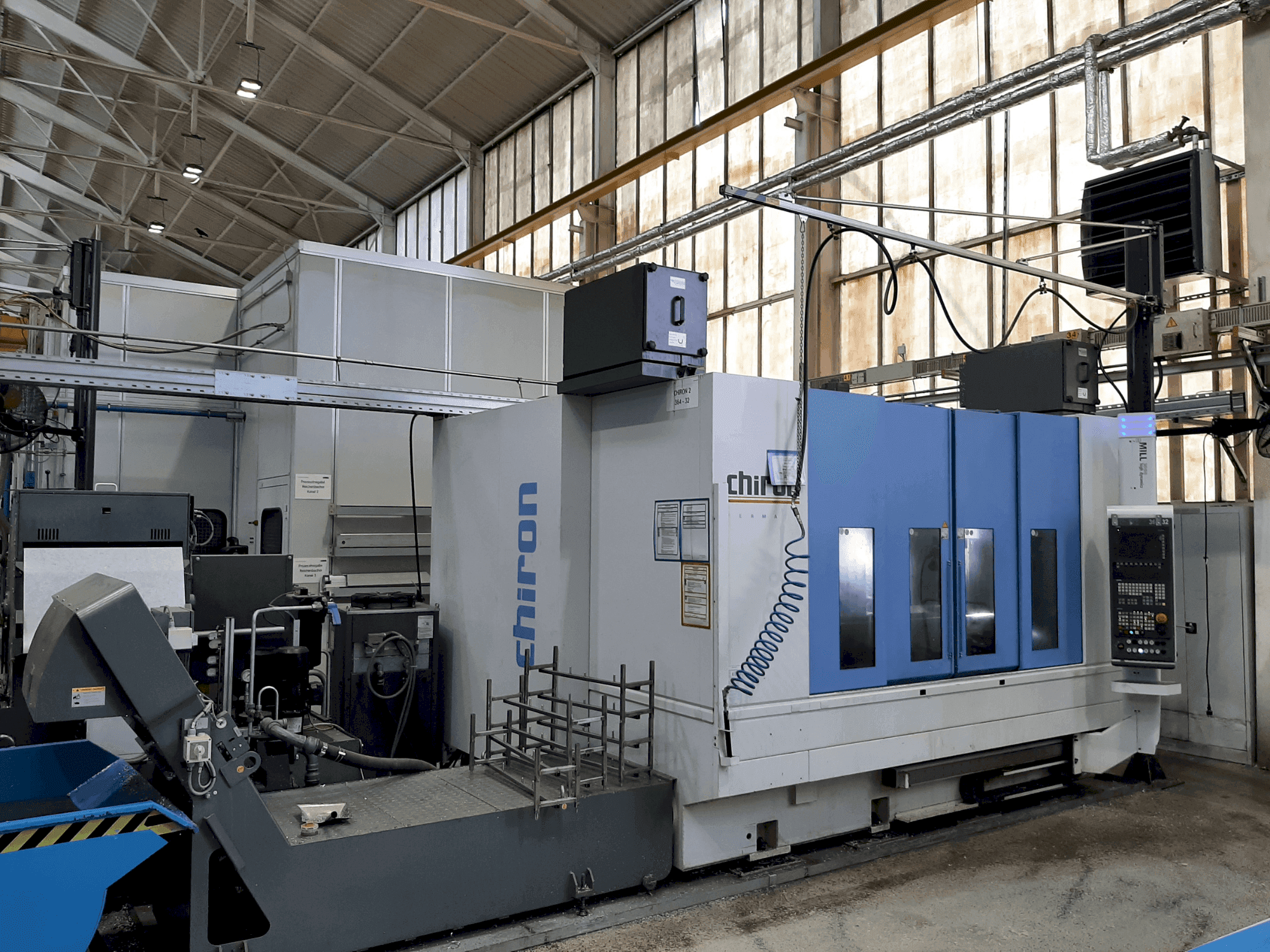

This 4-axis CHIRON Mill 2000 High Dynamics was manufactured in 2018. It features a single-spindle head, HSK-A 63 tool holder, and a maximum spindle speed of 20,000 rpm. The machine offers X-axis travel of 2000 mm, Y-axis travel of 630 mm, and Z-axis travel of 550 mm, with rapid traverse speeds of 75 m/min. Consider the opportunity to buy this CHIRON Mill 2000 High Dynamics vertical machining centre. Contact us for more information about this machine.

Overview

brand: CHIRON
year: 2018
MODEL: Mill 2000 High Dynamics
production hours: 29688
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - CHIRON Mill 2000 High Dynamics

General Data

Measurements width: 600 mm
Measurements depth: 600 mm
Measurements height: 1350 mm
Machine weight: 110 kg

Main drive

Number of spindles: 1
Spindle speed range: 20000 1/MIN
Spindle motor power: 60.0 - 75.0 kW
Number of axis: 4

Movement

X-AXIS Movement: 2000 mm
X-AXIS Rapid traverse: 75 m/min
Y-AXIS Movement: 630 mm
Y-AXIS Rapid traverse: 75 m/min
Z-AXIS Movement: 550 mm
Z-AXIS Rapid traverse: 75 m/min

Tools

Number of index: 24
Type of tool holder: HSK-A 63

Additional equipment

- Nominal pressure: 200 bar
- Test pressure: 260 bar
- Temperature range: -10 to 120 °C
- Bypass opening pressure: 7 bar
- Differential pressure indicator: 5 bar
- Maximum voltage (AC): 250 V // Maximum voltage (DC): 200 V
- Maximum switching current: 1 A
- Switching power: 70 W
- Protection class: IP 65
- Weight: 37 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main spindle max. Torque: 75 nm
- - Spindle head version: single-spindle

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
