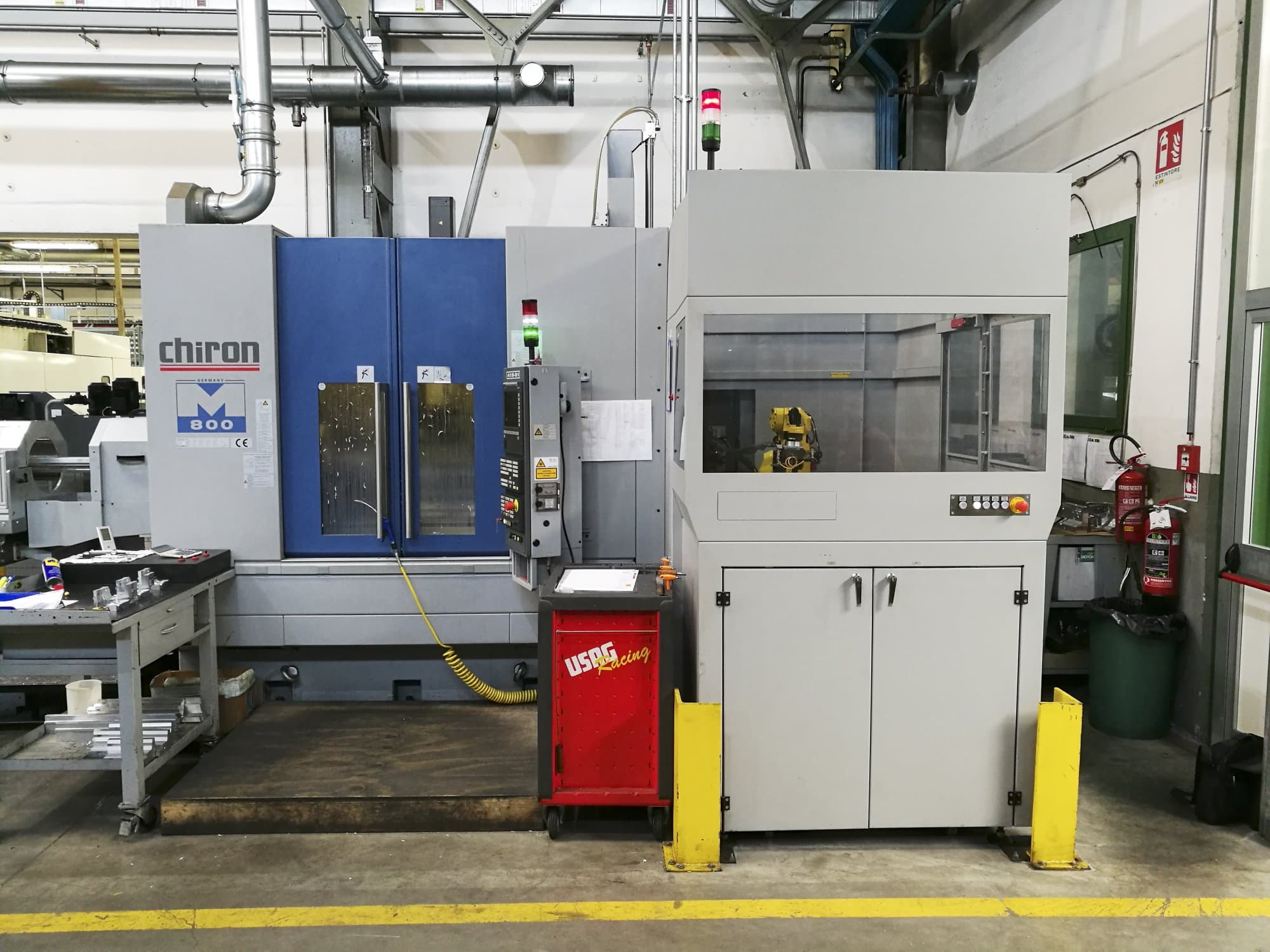

Front view of Chiron Mill-800 FA machine
Front view of Chiron Mill-800 FA machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

CHIRON - Mill-800 FAIT-MIL-CHI-2012-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Chiron Mill-800 FA Machining Center was manufactured in the year 2012 in Germany and has a production history of 8593 working hours. Operated through a SIEMENS SINUMERIK 840D Control unit, the equipment benefits from a working table of 500 mm of outer width. As additional equipment, this machine includes a hold and locking device and a Fanuc robot for positioning and unloading of the pieces.

Overview

  • brand: CHIRON
  • year: 2012
  • MODEL: Mill-800 FA
  • production hours: 8593
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - CHIRON Mill-800 FA

General Data

  • Measurements width: 8325 mm
  • Measurements depth: 6875 mm
  • Measurements height: 3171 mm
  • Machine weight: 9100 kg

Control Unit

  • Model: SINUMERIK 840D
  • Brand: SIEMENS

Main drive

  • Spindle speed range: 20-12000 1/min

Movement

  • X-AXIS Movement: 800 mm
  • Y-AXIS Movement: 480 mm
  • Z-AXIS Movement: 630 mm

Workpiece

  • Workpiece weight: 1200 kg

Table

  • Outer width: 500 mm

Tools

  • Max weight: 4 kg
  • Max tool diameter: 75 mm
  • Max tool length: 320 mm

Media

  • Main electronic connection: 400 V / 750-60 Hz
  • Power consumption: 66 kVA
  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional equipment

    • - Bar holding device with locking system and vise
    • - Fanuc unload and positioning robot

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
