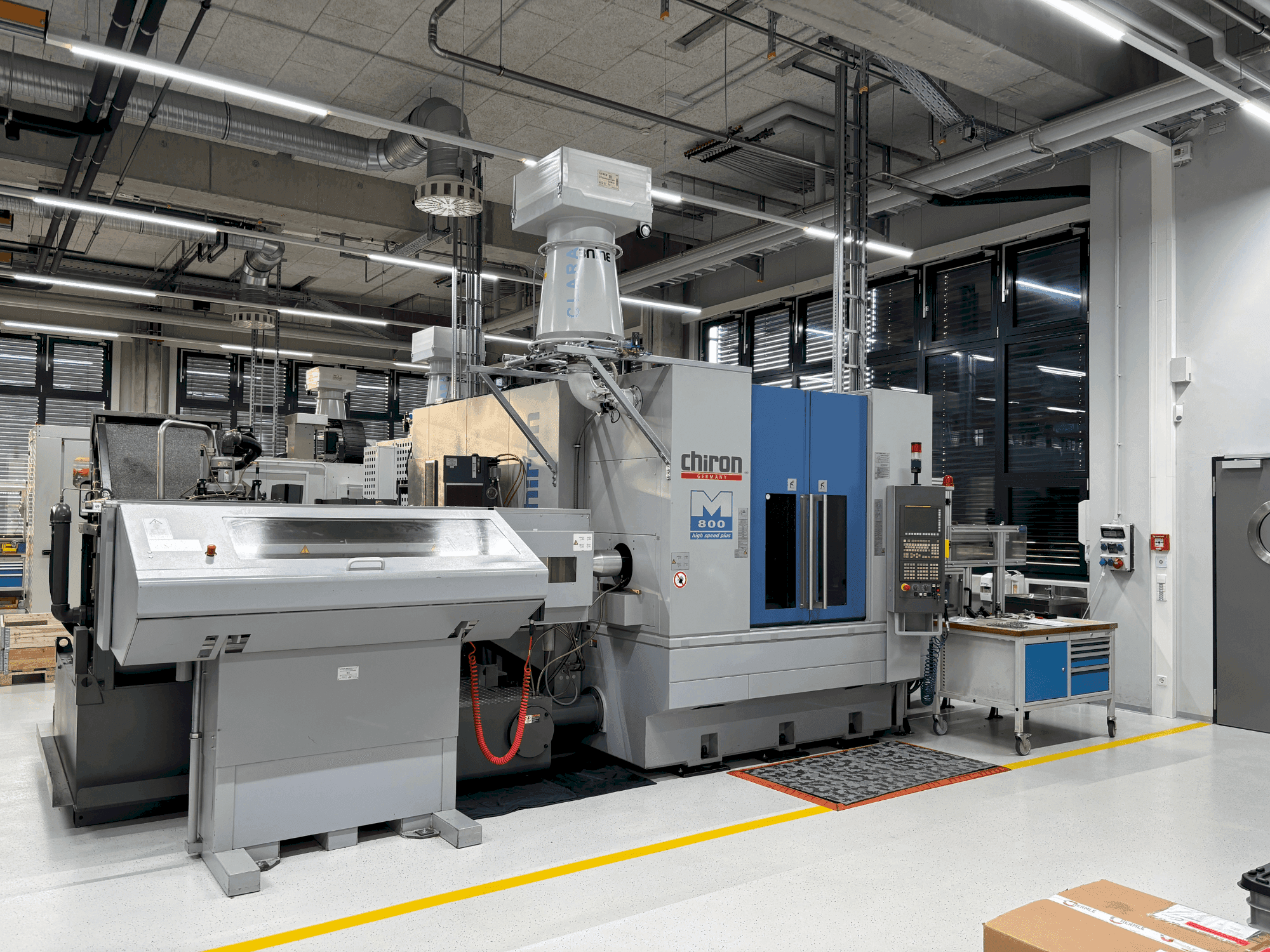

CHIRON - Mill 800DE-MIL-CHI-2007-00004

Additional equipment

• - Approx. 20 tool holders included
• - Bar loader short
• - Knoll paper belt chip conveyor HL450/900

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Swivel head
  • - Internal cooling supply
  • - Hsk-a-63
  • - Maximum diameter would be: 65 mm / collets are available up to 50 mm

Extra information

• - Machine still under power // Main spindle drive with AC motor/ Power: 7.5 kW (100 % ED), 22.5 kW (10 % ED)/ Speed range: 20 - 9,000 min-¹/ Torque: 140 Nm/ Tool changer: 24 tool positions (expandable to 92 with background magazine)/ Tool shank: steep taper 40 DIN 69871/72/ Tool ø max.: 75 mm (160 mm with free adjacent positions)/ Tool change time: approx. 1.5 s (chip-to-chip time: 5.0 s)/ Work area: Start table with chip tray (clamping area: 1,400 × 550 mm²)/ Maximum table load: 1,200 kg/ Control system/ Control type: FANUC 18i MB5 (5-axis path control)/ Program memory: 256 KB (expandable to 512 KB)/ Functions: Drilling and milling cycles, 3D interpolation, tool radius compensation, macro programming/ Interfaces: RS232C, PCMCIA memory card/ High-speed package (optional)/ Rapid traverse speed: 60 m/min (X/Y/Z)/ Speed range: 20 - 12,000 min-¹/ Chip-to-chip time: approx. 2.9 s/ 5-axis swivel head (optional)/ Motor spindle: Power: 25 kW (100 % ED), 40 kW (10 % ED)/ Speed range: 20 - 20,000 min-¹/ Tool holder: HSK-A 63/ Swivel axis: Range of movement: ±100°/ Partial accuracy: ±10"/ Drive torque: 280 Nm/ Coolant and chip delivery/ Standard coolant system: Tank capacity: 200 l/ Pump capacity: 80 l/min at 1.5 bar/ HP coolant option (70 bar): Flow rate: 20 l/min (30 bar) to 11 l/min (70 bar)/ Chip conveyor (option): Scraper belt with container (150 l)/ Measuring technology Renishaw measuring probe (OMP 40): Automatic workpiece measurement and machine compensation/ Ruby ball Ø 4 mm/ Mains connection & environment/ Power supply: 400/230 V ±10%, 50 Hz/ Compressed air: min. 6 bar/ Ambient temperature: 10-40 °C/ Optional equipment: Background magazine: 92 tool positions/ Bar machining: Turning spindle for bars up to Ø 65 mm/ NC slide for bar feed (60 m/min)/ Automatic grease lubrication/ Automatic loader for short bars (ILS-RBK-10012)/
