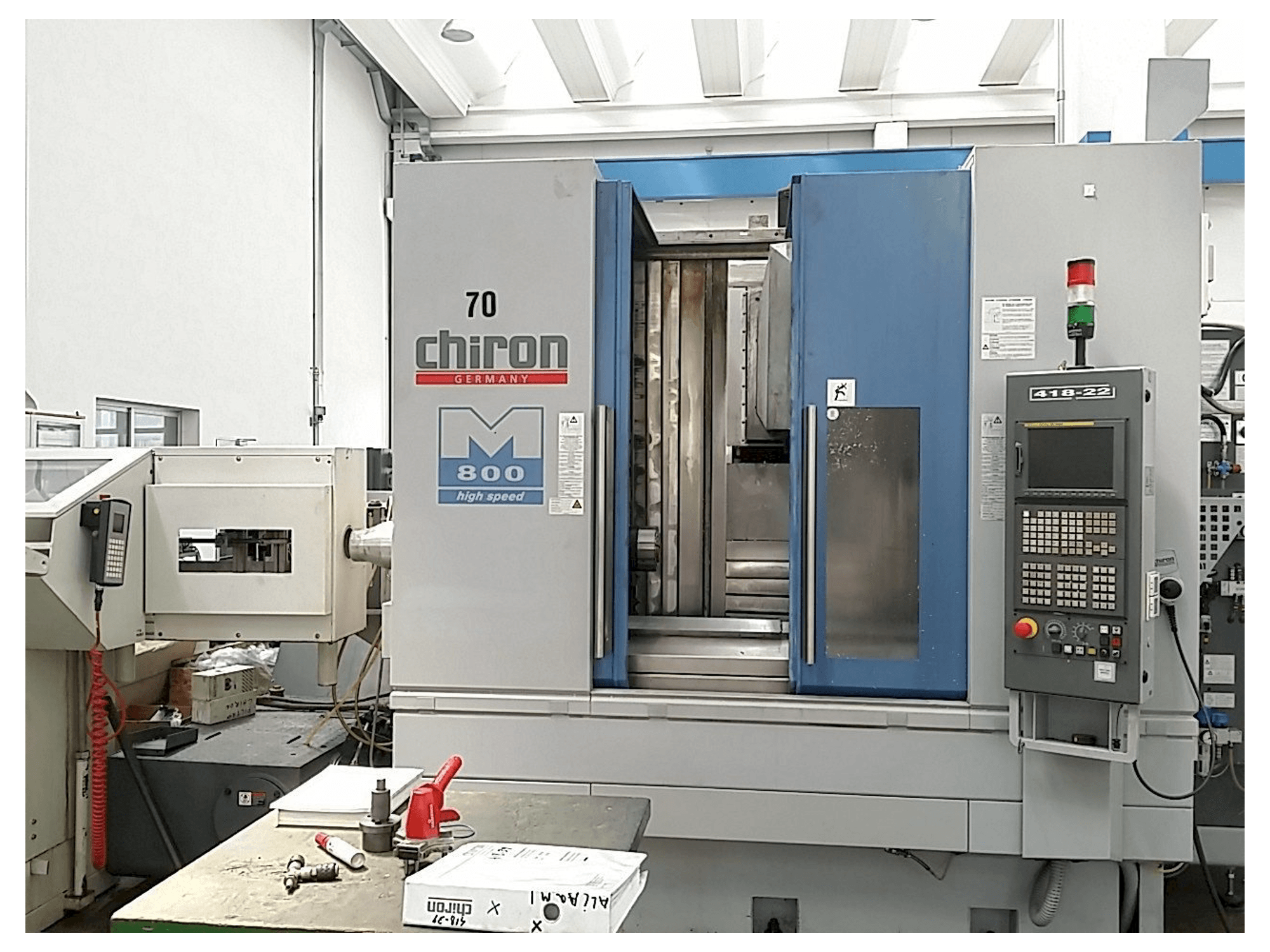

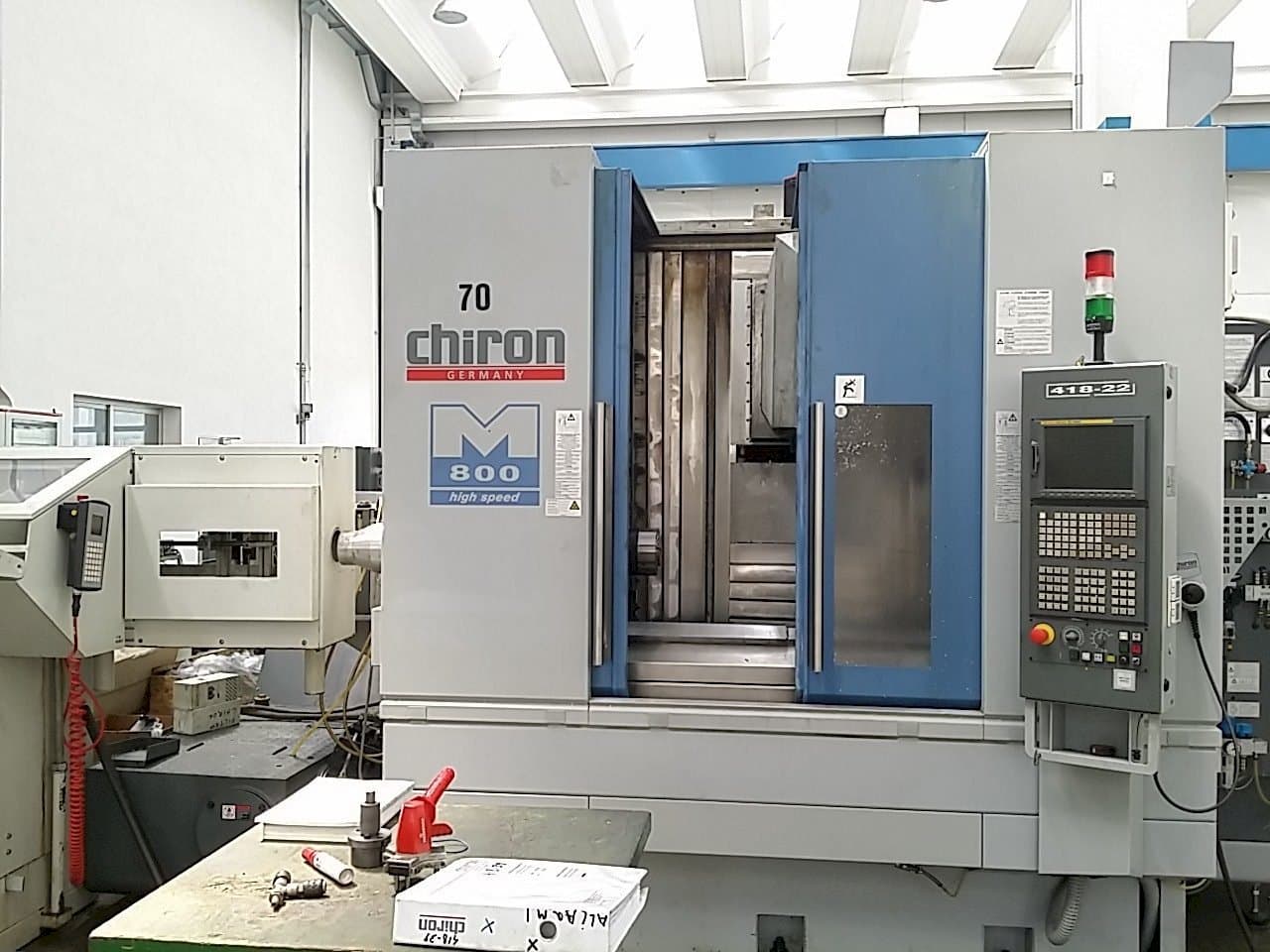

CHIRON Mill 800 Vertical Machining Center

Show in original language

This CHIRON Mill 800 Vertical Machining Center was built in 2006 in Germany. Operated through a FANUC 18iMBS Control unit, this machine can work with a spindle speed up to 12000 rpm. This model stands out for having 5 simultaneous milling axis.

Overview

brand: CHIRON
year: 2006
MODEL: Mill 800
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - CHIRON Mill 800

General Data

Machine weight: 7500 kg

Control Unit

Model: 18iMBS
Brand: FANUC

Main drive

Spindle speed range: 20-12000 1/MIN
Number of axis: 5

Table

Outer length: 1400 mm
Outer width: 500 mm
Table load: 1200 kg

Tools

Max weight: 4 kg
Max tool diameter: 160 mm
Max tool length: 320 mm
Type of tool holder: HSK-A 63

Additional Information

Machine Benefits

Technical Machine Benefits

Pressurised linear encoders
Swarf conveyor
Renishaw-ready
60m/min on all linear axis
70 bar pump

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
