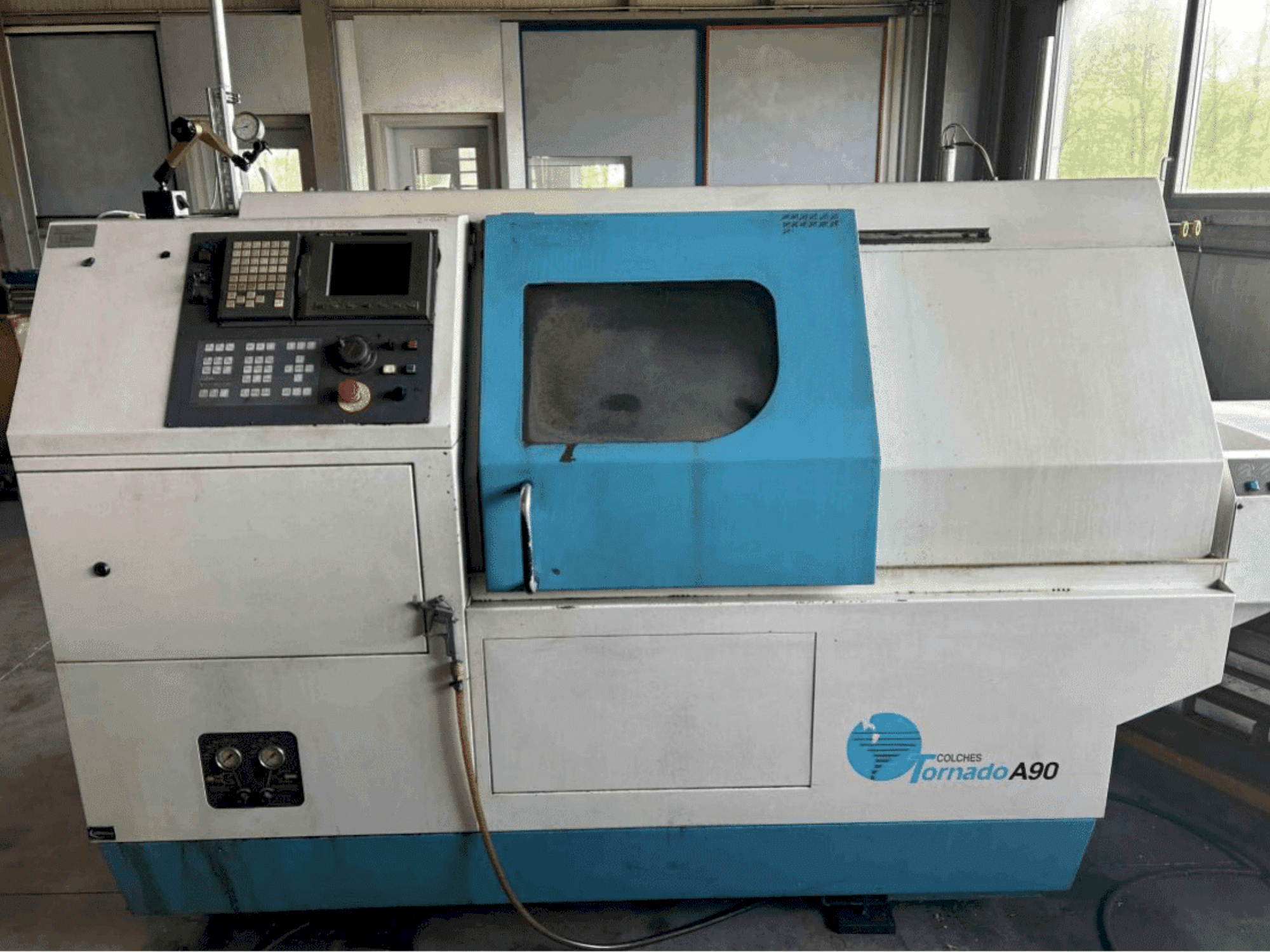

Front view of Colchester TORNADO A 90 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Colchester TORNADO A 90

Photo Gallery

Colchester - TORNADO A 90DE-TUR-COL-2000-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Colchester TORNADO A 90 For sale | gindumac.com

Show in original language

This Colchester TORNADO A 90 lathe was manufactured in 2000. It features a spindle speed of 4000 rpm, a spindle bore of 52 mm, and a spindle motor power of 11 kW. Equipped with a Fanuc 21 i control, a 12-station VDI 30 revolver, and a chip conveyor. Ideal for those looking to buy this Colchester TORNADO A 90 lathe. Contact us for further details regarding this lathe.

Overview

brand: Colchester
year: 2000
MODEL: TORNADO A 90
production hours: 17200
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Colchester TORNADO A 90

General Data

Machine weight: 2800 kg

Control Unit

Model: 21 i
Brand: FANUC

Main drive

Spindle speed range: 4000 rpm 1/MIN
Spindle motor power: 11 kW
Spindle bore: 52 mm
Number of axis: 2

Movement

X-AXIS Movement: 200 mm
Z-AXIS Movement: 450 mm

Tools

Number of stations: 12

Media

Chip conveyor: Yes

Additional equipment

- Tailstock

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum workpiece diameter: 230 mm
- - Maximum workpiece length: 450 mm
- - Powerful spindle motor for robust performance.
- - Versatile tooling options with a 12-station turret vdi 30.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
