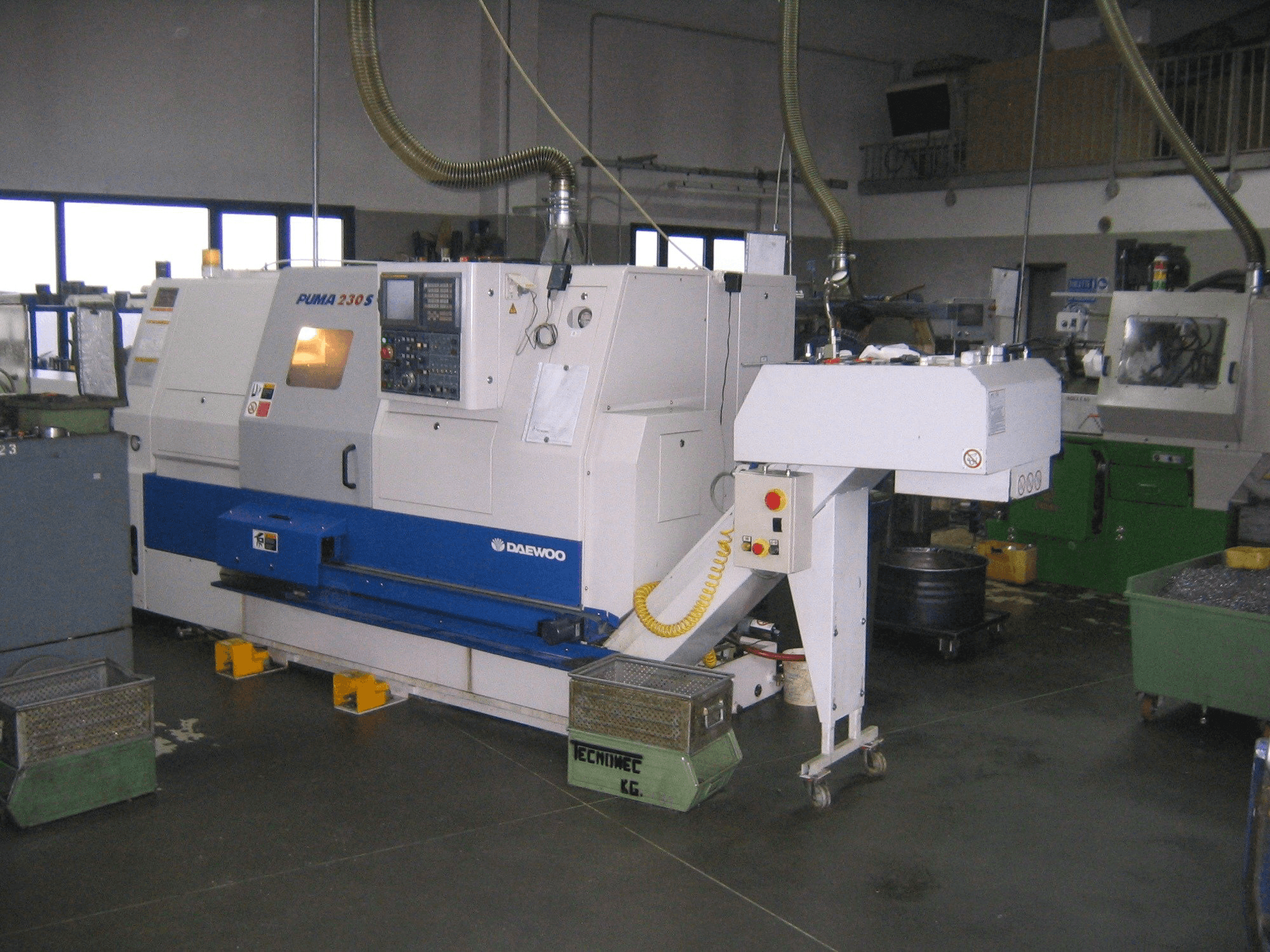

DAEWOO Puma 230SC

Photo Gallery

DAEWOO - Puma 230SCIT-TUR-DAE-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Daewoo Puma 230SC Lathe

Show in original language

This Daewoo Puma 230SC Lathe was manufactured in the year 2001 in Korea. It is equipped with a FANUC Series 18iT control unit and has 4 axis. The machine has SPINDLE TURNS 1 of 3500 rpm and SPINDLE TURNS 2 of 6000 rpm, includes many original tool holders and tool holders, is in good condition, and is well maintained.

Overview

brand: DAEWOO
year: 2001
MODEL: Puma 230SC
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - DAEWOO Puma 230SC

General Data

Machine weight: 4240 kg

Control Unit

Model: Series 18iT
Brand: FANUC

Main drive

Number of axis: 4

Movement

X-AXIS Movement: 205 mm
Z-AXIS Movement: 580 mm
B-AXIS Movement: 580 mm
C-AXIS Movement: 360 MDR1 MDR2 MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar passage diameter : 75 mm
- - Main spindle and diameter sub spindle: 42 mm
- - Spindle 1 with ba60 toolholder (many included) bellegrandi asa8
- - Reduction diameter :42 mm
- - Reduction for double cone collets (some included) up to diameter 75 mm
- - Counter spindle with jaws and soft jaws
- - (many included, collet holder bellegrandi from d. 42
- - Numerous ba42 pliers.
- - B axis guides from year 2017, spindle belts and spindle fan 1 replaced in 10/2022.
- - Lns sprint 2: 80mm
Qualitative Machine Benefits:
- - Spindle original never used with 3 tender jaws.
- - Spindle bearings 1 and 2 replaced
- - Twisting on x, z axes redone, crankcase replaced
- - Many original tool holders and tool holders, some never used.
- - Machine in production and fully functional.
- - Bar loader with 2 series of guides
- - Overhauled air system in 2021 and oil pump guide replaced in 2018, fully functional.
- - N. Spindle turns 1: 3500 rpm
- - N. Spindle turns 2: 6000 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
