DAEWOO - Puma 350LBIE-TUR-DAE-1998-00001
Sold
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- DAEWOO Puma 350LB Lathe
Show in original language

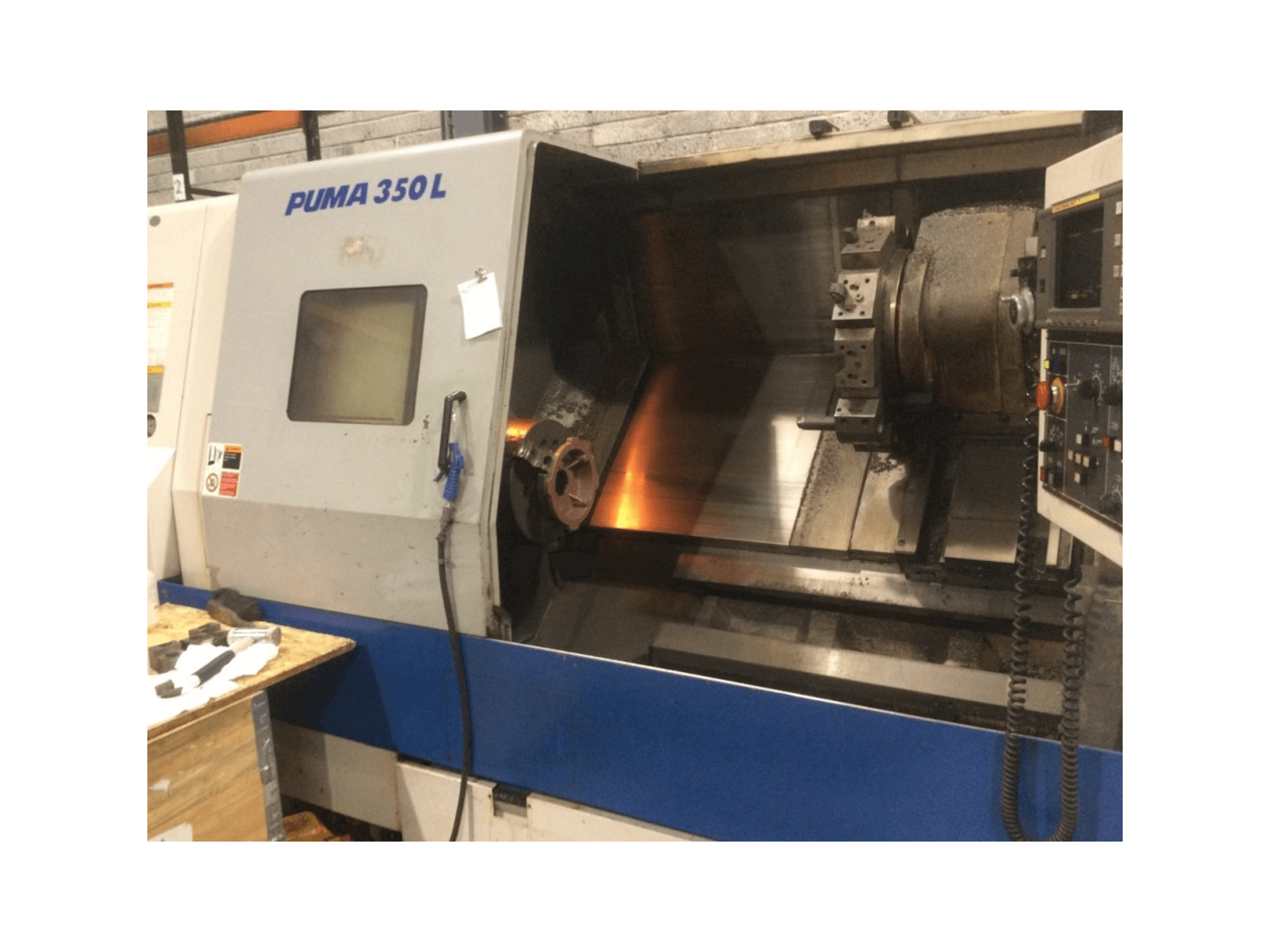

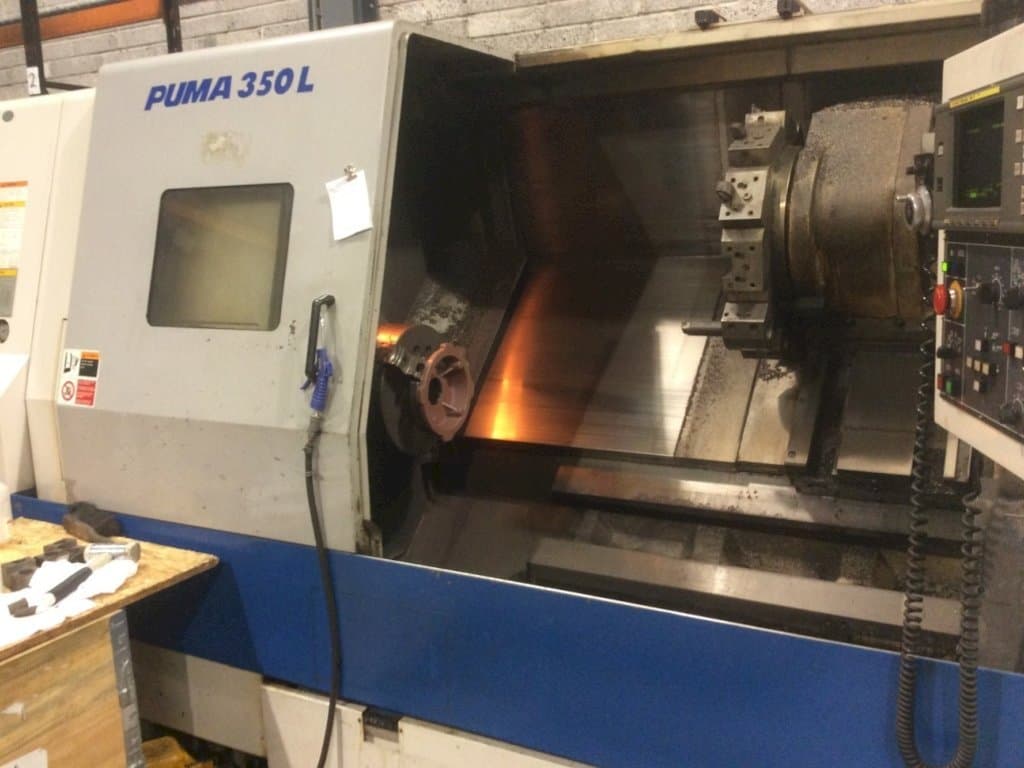

This DAEWOO Puma 350LB Lathe was built in Korea in the year 1998. Equipped with a FANUC Series 18-T Control unit, this 2 axis machine can perform with a spindle speed up to 2000 rpm.
Overview
- brand: DAEWOO
- year: 1998
- MODEL: Puma 350LB
- application type: Turning
- Location: Ireland
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - DAEWOO Puma 350LB
Control Unit
- Control Brand: FANUC
- Control Model: Series 18-T
Dimensions
- Machine Depth: 2390 mm
- Machine Height: 2240 mm
- Machine Weight: 10500 kg
Movement
- X-axis Travel: 362 mm
- Z-axis Travel: 2155 mm
Technical Specification
- Max. Workpiece Diameter: 550 mm
- Number of Tools: 10
- Spindle Speed: 2000 RPM
Additional Information
Additional equipment
- Tailstock
- Hydraulic Steady Rest
- Transformer
Machine Benefits
Technical Machine Benefits
- 118mm spindle bore
- 2 axis cnc lathe
- Max swing: 700mm
- Swing over cross-slide: 480mm
- 3 jaw hydraulic chuck
- Tailstock machine
Machine History
End product
Component parts
Material type
Mild steel
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
