DAEWOO - Puma TT2500SY - GLIE-TUR-DAE-2005-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- DAEWOO Puma TT2500SY - GL

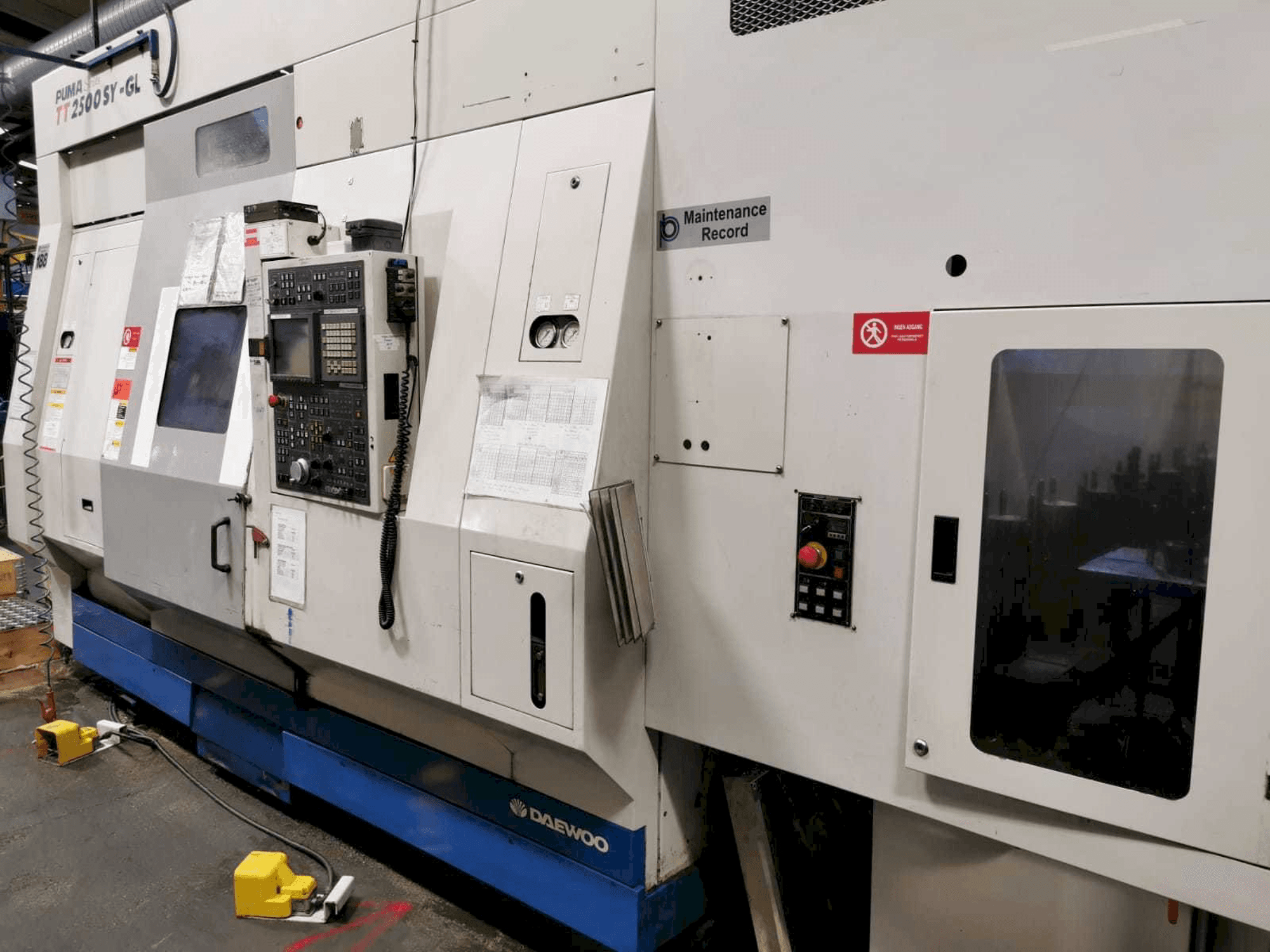

This DAEWOO Puma TT2500SY - GL Lathe was built in 2005 in Korea. This 8 axis machine is equipped with a FANUC 18I Control unit. It can operate with a spindle speed up to 3500 rpm. This machine includes a Daewoo Gantry Loader (GL). It has mainly been producing hydraulic components and is found in very well conditions.
Overview
- brand: DAEWOO
- year: 2005
- MODEL: Puma TT2500SY - GL
- application type: Turning
- Location: Ireland
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - DAEWOO Puma TT2500SY - GL
Control Unit
- Control Brand: FANUC
- Control Model: 18I
Dimensions
- Machine Weight: 13000 kg
Movement
- Number of Axes: 8
- X-axis Travel: 255 mm
- Y-axis Travel: 120 mm
- Z-axis Travel: 900 mm
Technical Specification
- Number of Tools: 24
- Spindle Speed: 3500 RPM
Additional Information
Additional equipment
- Daewoo Gantry Loader (GL)
Machine Benefits
Qualitative Machine Benefits
- Well maintained machine
- Gantry loader automation included with machine
Technical Machine Benefits
- C-axis movement: 360 deg ; full c axis on both spindles
- 8 controlled axes on this machine (x1,x2,y, z1,z2,b,c1,c2)
- Twin spindle/twin turret machine
- Included automatic gantry loader
- 3 x driven tool turrets
- 76mm bar passage
- Max swing: 800mm
Machine History
End product
Hydraulic components
Material type
Mild steel
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
