Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
DAINICHI - M 130RKR-TUR-DAI-1996-00001
Sold
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- DAINICHI M 130R Lathe machine
Show in original language

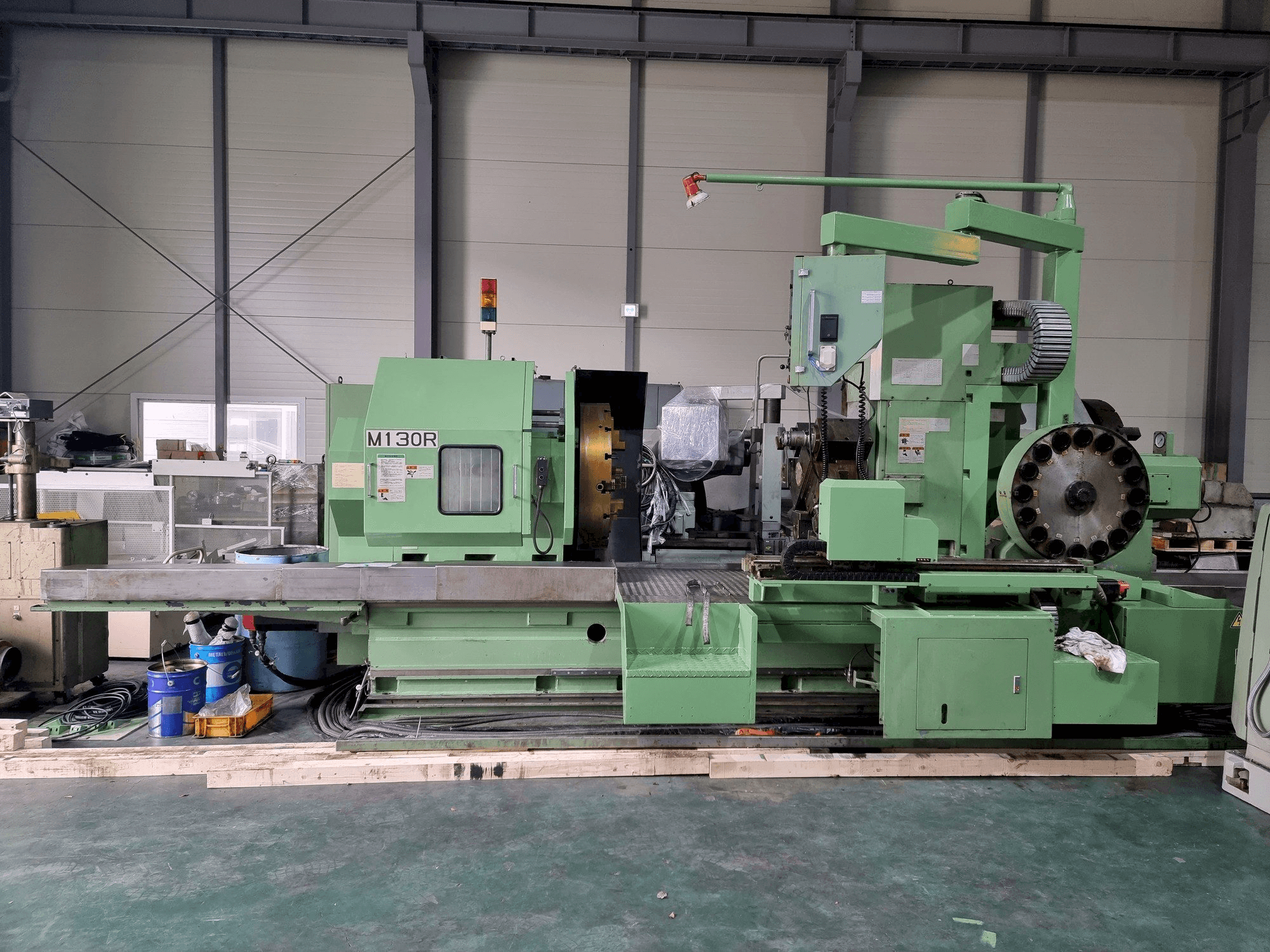

This DAINICHI M 130R Lathe machine was manufactured in the year 1996. This machine is operated by a FANUC-16T control unit. It works with a main spindle speed range 2 to 400 rpm and a milling tools up to 1,125 rpm.
Overview
- brand: DAINICHI
- year: 1996
- MODEL: M 130R
- application type: Turning
- Location: South Korea
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - DAINICHI M 130R
Control Unit
- Control Brand: FANUC
- Control Model: 16T
Dimensions
- Machine Weight: 10000 kg
Movement
- C-axis: 0.001°
- X-axis Travel: 525 mm
- Y-axis Travel: 150 mm
- Z-axis Travel: 4.255 mm
Technical Specification
- Spindle Speed: 400 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Mpg handle
- Manual books
- Ce mark
Technical Machine Benefits
- Swing over bed : 1,150 mm
- Swing over saddle : 1,020 mm
- Maximum turning length : 4,000 mm
- Main chuck size : 40 inch (manual type)
- Atc capacity : 16 ea (milling function)
- Milling tools rpm : 1,125 rpm
- Tail stock
- 1 steady rest (manual type)
- Call right(led 3 step)
- Chip bucket
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
