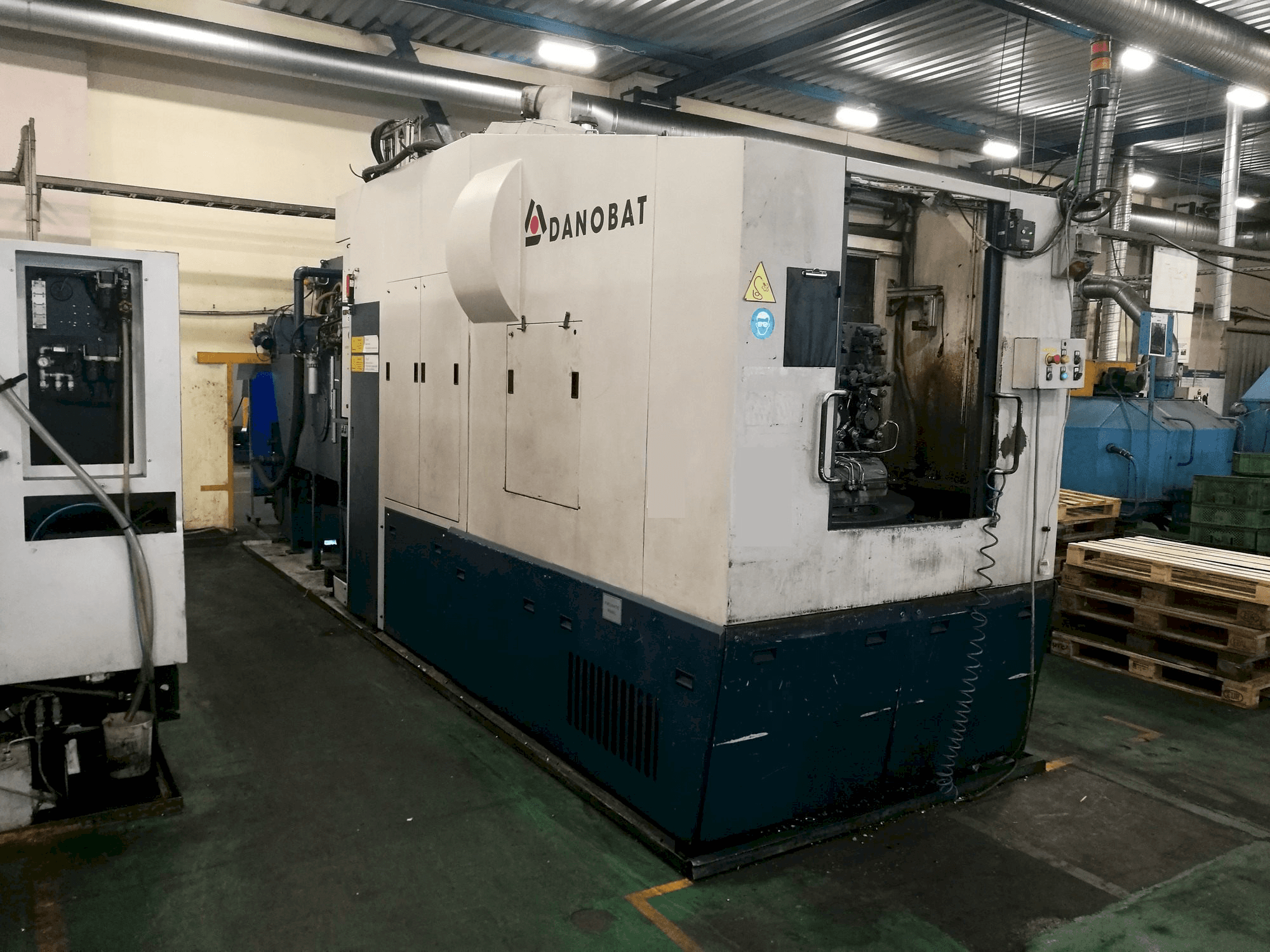

Front view of DANOBAT DS 500 - HS machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DANOBAT DS 500 - HS

Photo Gallery

DANOBAT - DS 500 - HSLT-MIL-DAN-2005-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DANOBAT DS 500 - HS Milling Machine

Show in original language

This DANOBAT DS 500 - HS Milling Machine made in 2005 in Spain. It has a production history of 34159 working hours since then. It is operated through a Fanuc Series 180i-MB control unit. This machine counts with 18 slots in storage. During the past, this Milling Machine has mainly worked with steel up to 12 mm of thickness for the automotive industry.

Overview

brand: DANOBAT
year: 2005
MODEL: DS 500 - HS
production hours: 34159
application type: Milling
Location: Lithuania
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DANOBAT DS 500 - HS

General Data

Measurements width: 2025 mm
Measurements depth: 5076 mm
Measurements height: 3031 mm
Machine weight: 15000 kg

Control Unit

Model: series 180i-MB
CNC main language: English
Brand: FANUC

Movement

X-AXIS Movement: 630 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: pallet 500x500 mm

Tools

Slots in storage: 18
Max weight: 5 kg
Max tool diameter: 107/125 mm
Max tool length: 260 mm

Media

Main electronic connection: 400V / 3phases / 50Hz

Additional Information

Machine history

Material type: Steel
Material thickness: 12 mm
End product: Flannels
Industries: Auto industry

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
