DECKEL FP4A Milling Machine

Show in original language

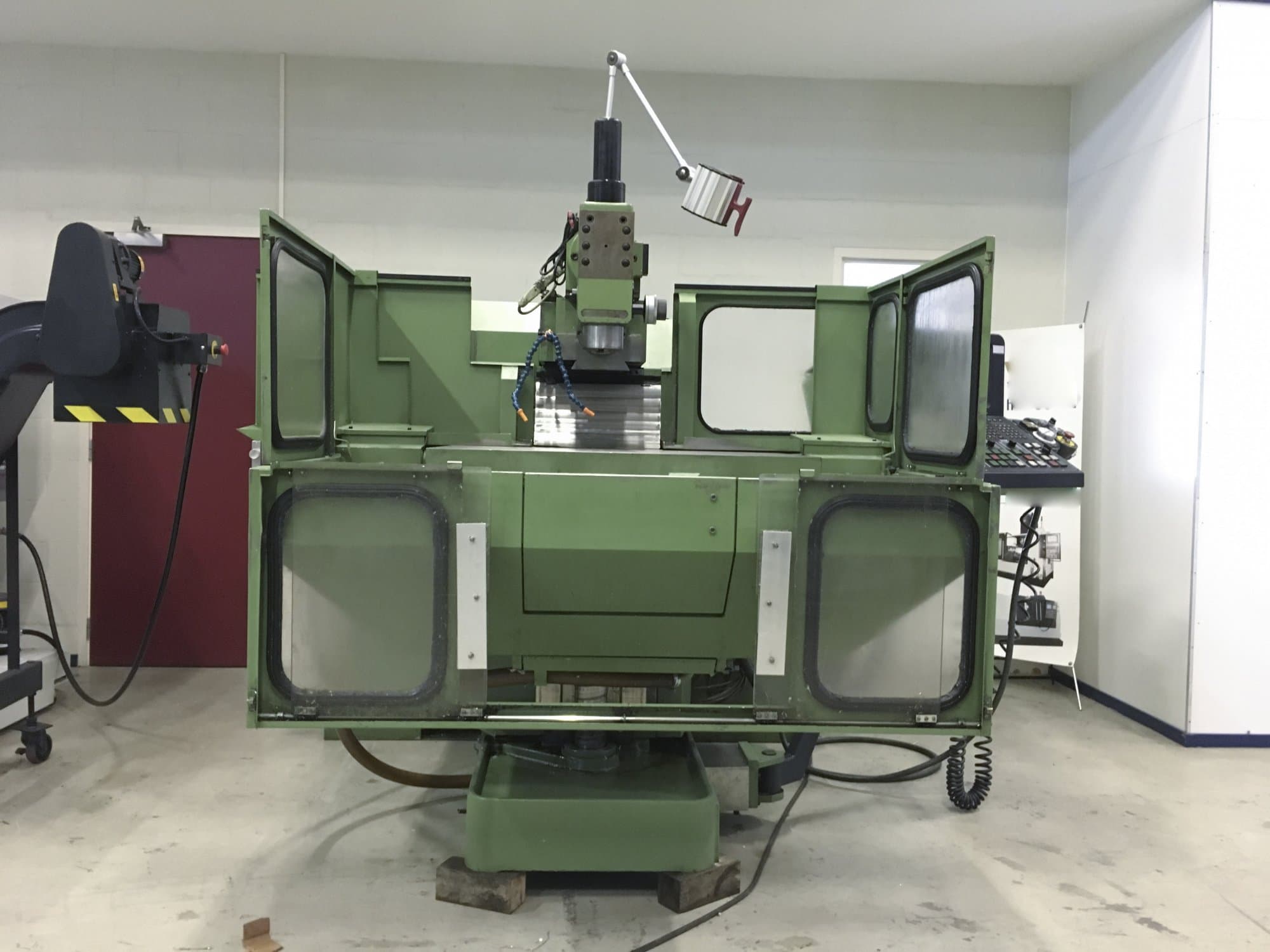

This DECKEL FP4A Milling Machine from 1991 was manufactured in Germany and has a working record of approximately 32000 production hours. Equipped with a Grundig Dialog 11 Control unit, this model has mainly worked with steel and aluminium bars with around 40 mm of diameter. This well maintained and frequently inspected machine stands out due to its big working table and a maximum workpiece weight of 800 kg. An additional tool holder is included.

Overview

brand: DECKEL
year: 1991
MODEL: FP4A
production hours: 32000
application type: Milling
Location: Netherlands
machine type: Universal Machining Centre
availability: Sold

Technical Information - DECKEL FP4A

General Data

Measurements width: 3000 mm
Measurements depth: 2700 mm
Measurements height: 1630 mm
Machine weight: 1950 kg

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/min

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 390 mm

Workpiece

Workpiece drm: 80 mm
Workpiece x: 485 mm
Workpiece y: 385 mm
Workpiece z: 380 mm
Workpiece weight: 800 kg

Table

Outer length: 900 mm
Outer width: 530 mm

Tools

Max weight: 450 kg
Max tool diameter: 40 mm
Max tool length: 150 mm

Media

Main electronic connection: 380 V
Power consumption: 16.5 kVA
Internal cooling: Yes

Additional equipment

- 1x Tool holder

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
