DECKEL FP5CC Milling Machine

Show in original language

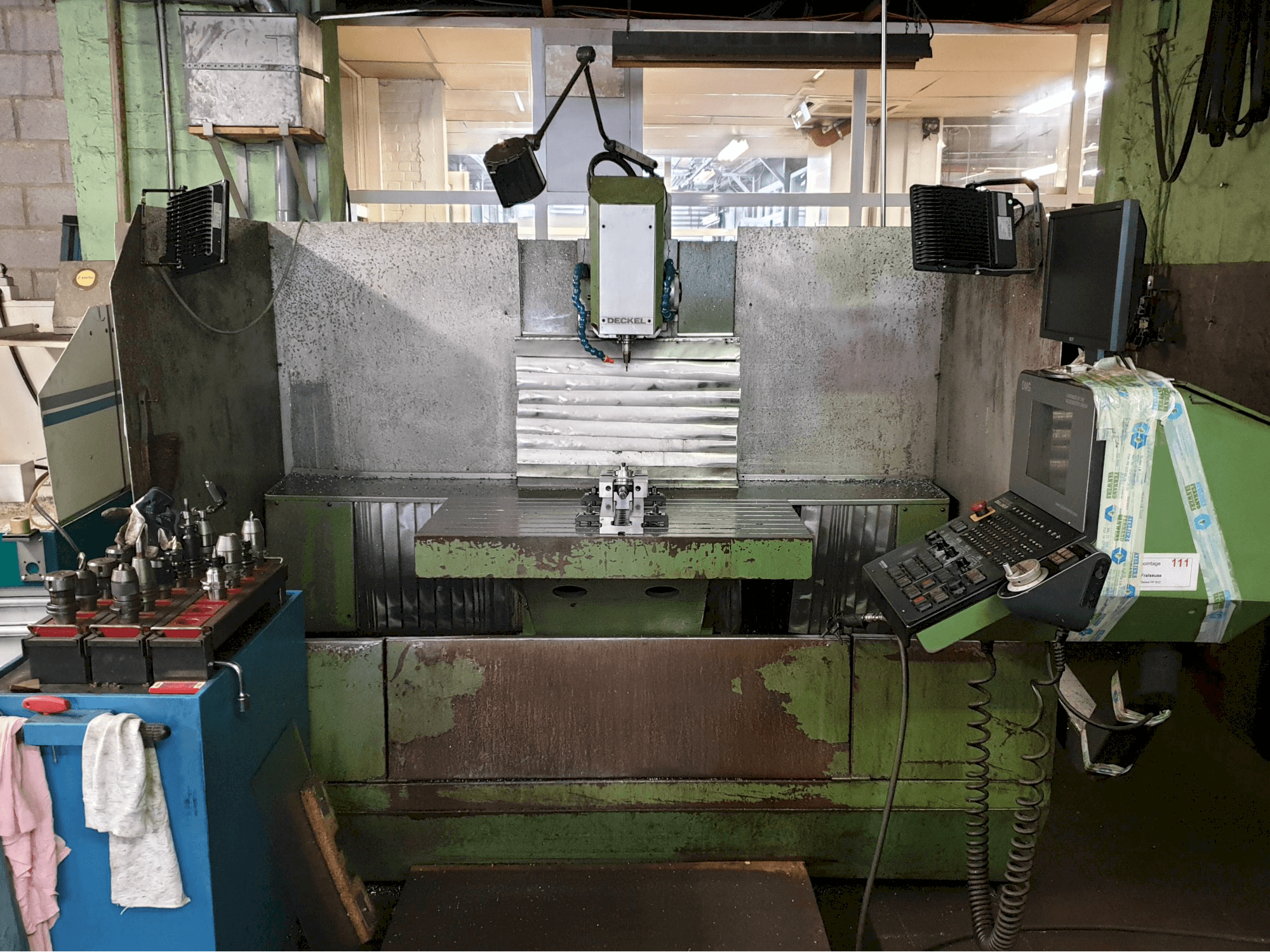

This DECKEL FP5CC Milling Machine was manufactured in 1989 in The Netherlands and counts with a production time of 18200 hours. Operated through a GRUNDIG DIALOG 11 Control unit, this machine has mainly worked with stainless steel up to 6 mm of thickness during the past for the production of prototypes. It incorporates a hinged vertical milling head that can be swivelled, and a universal working table. Vertical and horizontal spindles are included as well. It presents very good conditions, as it has been inspected on a yearly basis.

Overview

brand: DECKEL
year: 1989
MODEL: FP5CC
production hours: 18200
application type: Milling
Location: Belgium
machine type: Universal Machining Centre
availability: Sold

Technical Information - DECKEL FP5CC

General Data

Measurements width: 3000 mm
Measurements depth: 2700 mm
Measurements height: 1650 mm
Machine weight: 4500 kg

Control Unit

CNC main language: French
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 7000 rpm 1/MIN

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 550 mm

Workpiece

Workpiece drm: 80 mm
Workpiece weight: 600 kg

Table

Outer length: 1000 mm
Outer width: 470 mm

Tools

Max weight: 12 kg
Max tool diameter: 100/150 mm
Max tool length: 300 mm

Media

Main electronic connection: 380 V
Power consumption: 33 kVA

Additional equipment

- 2xtools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
