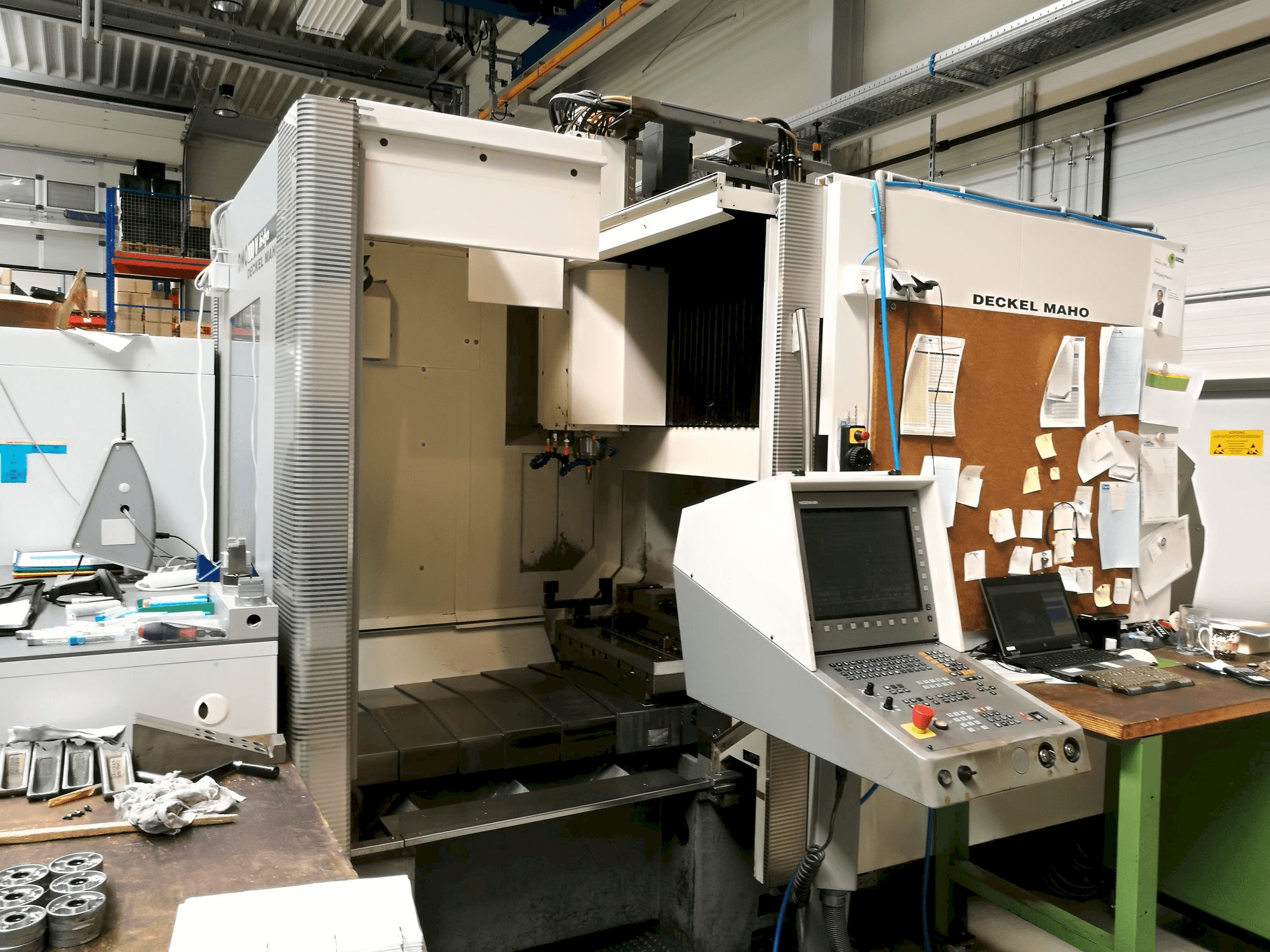

Front view of DECKEL MAHO DMC 100 V Hi-Dyn machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL MAHO DMC 100 V Hi-Dyn

Photo Gallery

DECKEL MAHO - DMC 100 V Hi-DynAT-MIL-DEC-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DECKEL MAHO DMC 100 V Hi-Dyn Vertical Machining Center

Show in original language

This DECKEL MAHO DMC 100 V Hi-Dyn Vertical Machining Center, produced in Germany in 2001. It has a production history of the new spindle of 1300 working hours. It is equipped with a Heidenhain 430 control unit. This machine can work with a spindle speed range up to 18000 rpm.

Overview

brand: DECKEL MAHO
year: 2001
MODEL: DMC 100 V Hi-Dyn
production hours: 14600
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 100 V Hi-Dyn

General Data

Measurements width: 3900 mm
Measurements depth: 4100 mm
Measurements height: 2900 mm
Machine weight: 9100 kg

Control Unit

Model: 430
CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece x: 1250 mm
Workpiece y: 850 mm
Workpiece z: 800 mm
Workpiece weight: 1200 kg

Table

Outer length: 1250 mm
Outer width: 800 mm

Tools

Slots in storage: 30
Max weight: 12 kg
Max tool diameter: 80/140 mm
Max tool length: 300 mm
Type of tool holder: SK40 Din 69871 A

Media

Main electronic connection: 400 V
Power consumption: 40 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

Tool measuring system
RotoClear window
Workpiece measuring device

Machine Benefits

Qualitative Machine Benefits

Perfect conditions
Little working time on new spindel

Technical Machine Benefits

New spindle since 1300h
High dynamic machine center
Hsc spindle

Machine History

Industries

Mould and die

End product

Mould and die components

Material type

Steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
