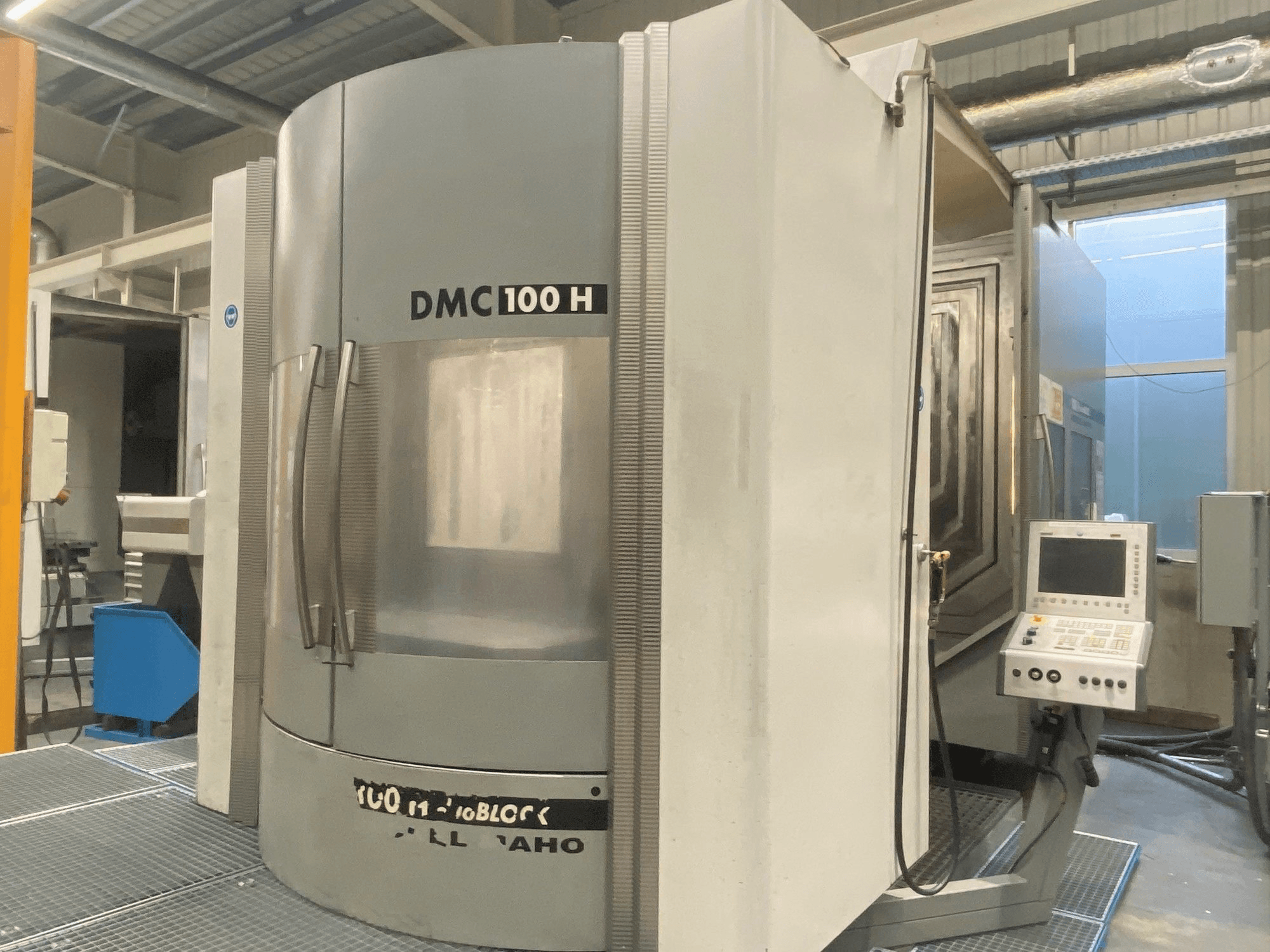

Front view of DECKEL MAHO DMC 100H duoBLOCK machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL MAHO DMC 100H duoBLOCK

Photo Gallery

DECKEL MAHO - DMC 100H duoBLOCKDE-MIL-DEC-2004-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DECKEL MAHO DMC 100H duoBLOCK Horizontal Machining Center

Show in original language

This DECKEL MAHO DMC 100H duoBLOCK Horizontal Machining Center was made in 2004 in Germany. It has been on for 76917 hours. It is equipped with a SIEMENS NC840D-Powerline 3D control unit. This 5 axis machine works with a spindle speed range between 20 - 8000 rpm. It includes NC rotary table with pallet clamping and double gripper. Full documentation available.

Overview

brand: DECKEL MAHO
year: 2004
MODEL: DMC 100H duoBLOCK
production hours: 76917
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - DECKEL MAHO DMC 100H duoBLOCK

General Data

Measurements width: 4400 mm
Measurements depth: 3160 mm
Measurements height: 3270 mm
Machine weight: 17500 KG

Control Unit

Model: NC840D-Powerline 3D
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 20 - 8000 1/MIN
Tool taper: SK 50
Number of axis: 5

Movement

X-AXIS Movement: 1000 mm
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Movement: 1000 mm
Y-AXIS Rapid traverse: 60 m/min
Z-AXIS Movement: 1000 mm
Z-AXIS Rapid traverse: 60 m/min

Tools

Number of index: 60 pos
Slots in storage: 120

Media

Main electronic connection: 400V / 50Hz
Power consumption: 90 kVa
Chip conveyor: Yes
Internal cooling: Yes
Cooling pressure: 40 bar

Additional Information

Machine Benefits

Qualitative Machine Benefits

Infrared measuring probe
3d path control
Full documentation available

Technical Machine Benefits

2 pallets: 1000 mm x 800 mm with t-slots
Horizontal milling head
Double gripper
Feed speed: 10 - 10000 mm/min
Nc rotary table with pallet clamping area: 800 x 1000 mm
Coolant tank: 980 lt
Coolant pressure through spindle center
Spindle rotation speed: 20 - 8000 rpm
Rotating inspection window
Rotating lens

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
