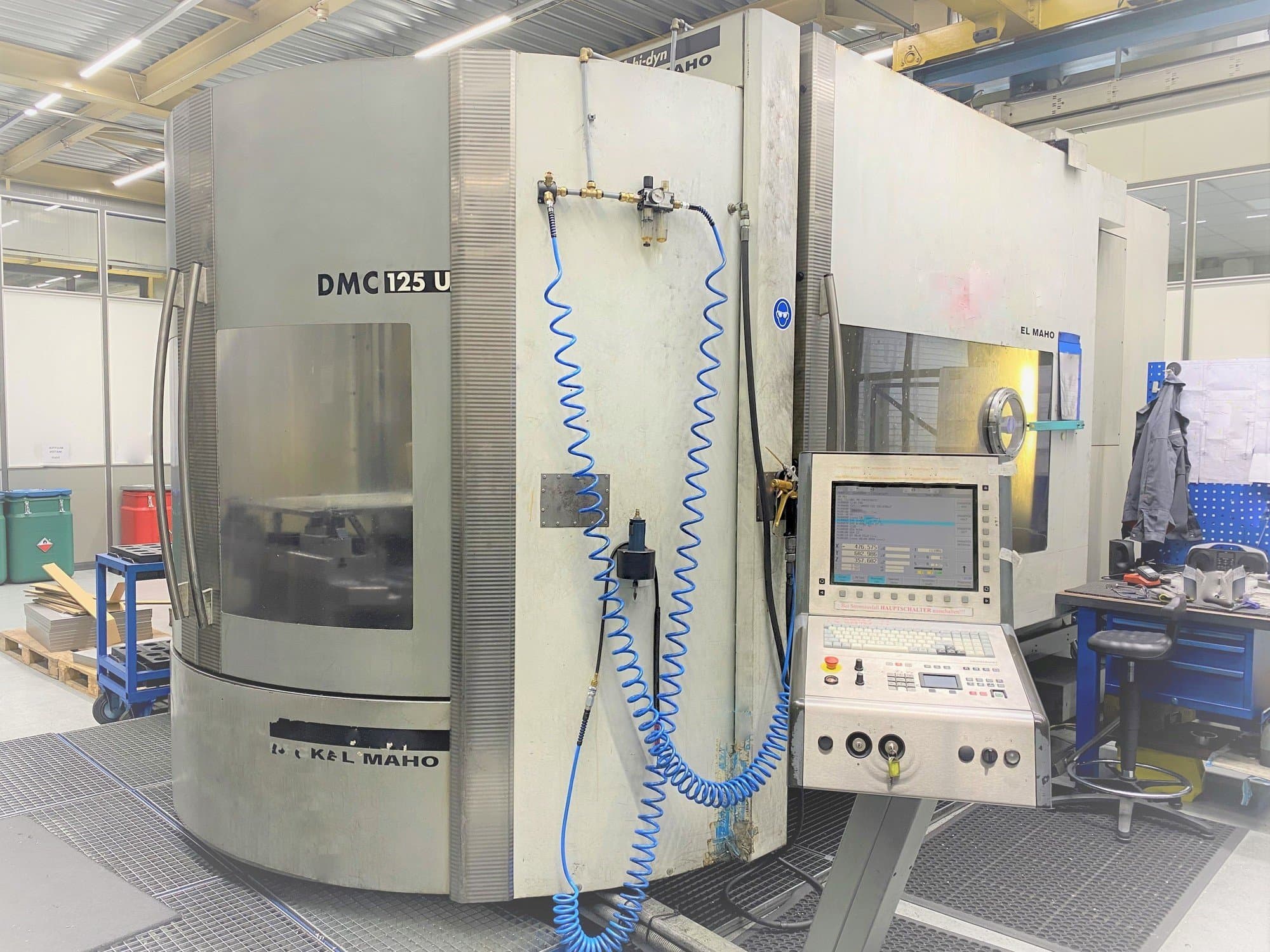

DECKEL MAHO DMC 125U hi-dyn Universal Machining Center

Show in original language

This DECKEL MAHO DMC 125U hi-dyn Universal Machining Center was built in the year 2004. It has 89500 operating hours, of which 32000 are spindle hours. It is equipped with a Heidenhain MillPlus IT 3D path control unit. This 5 axis machine can works with a spindle speed range between 20 - 12000 rpm. It comes with 2 pallets, an automatic swivel milling head and a turntable changer. Complete documentation is available.

Overview

brand: DECKEL MAHO
year: 2004
MODEL: DMC 125U hi-dyn
production hours: 32000
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 125U hi-dyn

General Data

Measurements width: 5500 mm
Measurements depth: 3000 mm
Measurements height: 3100 mm
Machine weight: 14300 KG

Control Unit

Model: MillPlus IT 3D path
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 20 - 12000 1/MIN
Tool taper: SK50
Number of axis: 5

Movement

X-AXIS Movement: 1250mm
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 880 mm
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 800 mm
Z-AXIS Rapid traverse: 40 m/min

Table

Outer length: 800 mm
Outer width: 630 mm

Tools

Slots in storage: 60 places

Media

Chip conveyor: Yes
Cooling pressure: IKZ 40 bar

Additional equipment

- Electronic handwheel MillPlus IT
- Universal milling head with controlled B-axis SK50
- Tool changer with pallet: 60 tool places
- Coolant / band filter system
- Tool holder: SK50 according to DIN 69871
- NC rotary table with pallet carrier

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main drive: integrated motor spindle sk50
- - Weight of tool magazine: 1400 kg
- - Tool changing device horizontal double gripper
- - Automatic swivel milling head
- - Transport dimension tool magazine (lxwxh): 2650 x 2000 x 2500 mm
- - Turntable changer
- - 2 pallets: 1000 x 800 mm
- - Coolant tank: 900 liter
- - Coolant pressure ikz form through spindle center (ad)
- - Rotating inspection window
Qualitative Machine Benefits:
- - Complete documentation is available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
