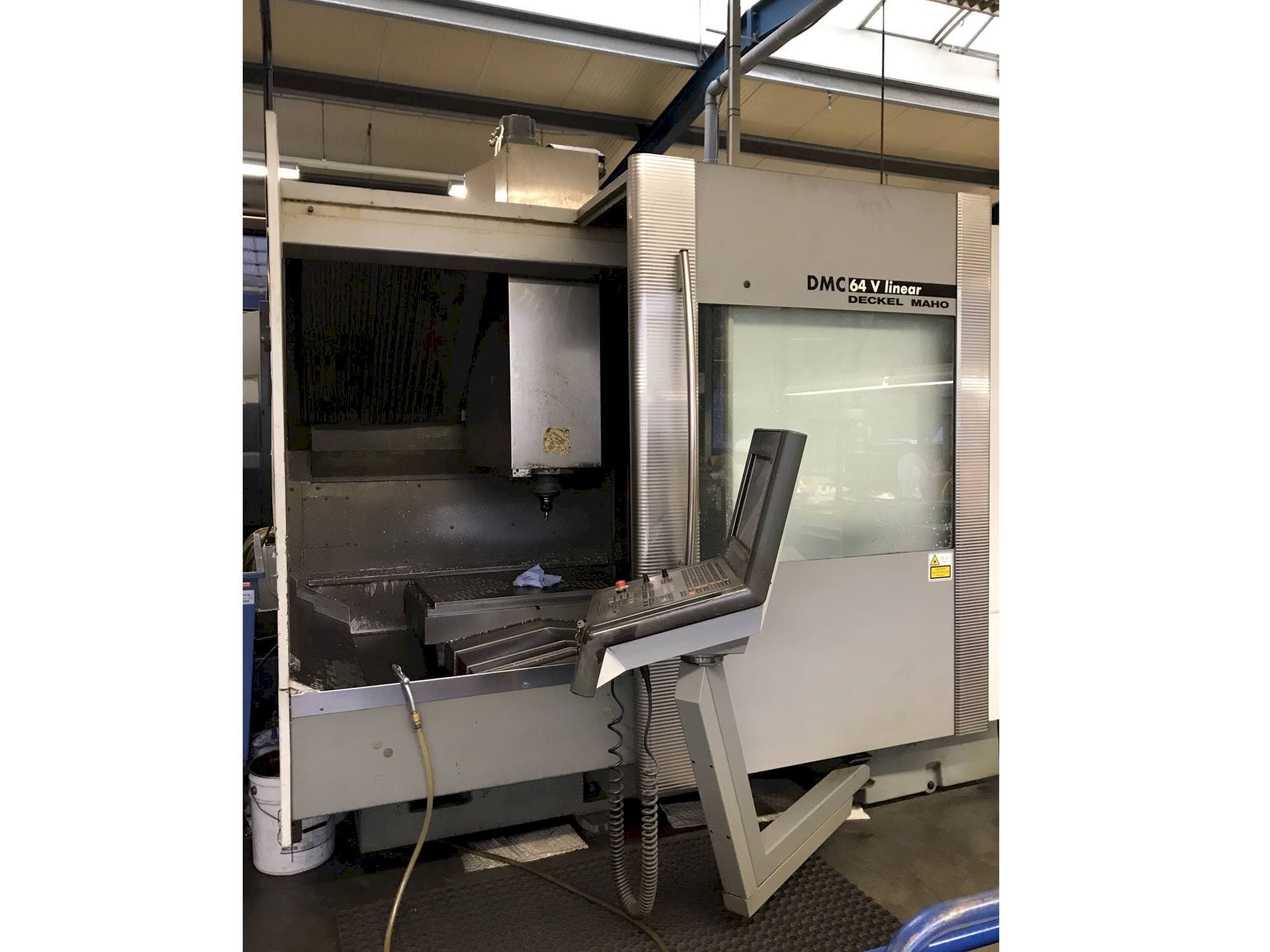

Left side view of DECKEL MAHO DMC 64V Linear machine
Left side view of DECKEL MAHO DMC 64V Linear machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

DECKEL MAHO - DMC 64V LinearDE-MIL-DEC-2002-00004

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DECKEL MAHO DMC 64V Linear Vertical Machine Center was built in 2002. It is equipped with a HEIDENHAIN iTNC 530 control unit and has 3 axis. The machine has a spindle speed of 12000 rpm.

Overview

  • brand: DECKEL MAHO
  • year: 2002
  • MODEL: DMC 64V Linear
  • production hours: 6335
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMC 64V Linear

General Data

  • Measurements width: 3450 mm
  • Measurements depth: 2350 mm
  • Measurements height: 2900 mm
  • Machine weight: 6500 kg

Control Unit

  • Model: iTNC 530
  • Brand: HEIDENHAIN

Main drive

  • Spindle speed range: 12000 1/MIN

Movement

  • X-AXIS Movement: 640 mm
  • Y-AXIS Movement: 600 mm
  • Z-AXIS Movement: 500 mm

Table

  • Outer length: 850 mm
  • Outer width: 630 mm
  • Table load: 600 kg

Tools

  • Type of tool holder: SK 40

Media

  • Main electronic connection: 400 V
  • Power consumption: 42 kVA

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Feed stepless 40. 000 mm/min
      • - Rapid traverse 60 m/min
      • - Drive power - spindle motor 18. 0 kw
      • - Tool changing device 30 pos
      • - Handwheel
      • - Chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
