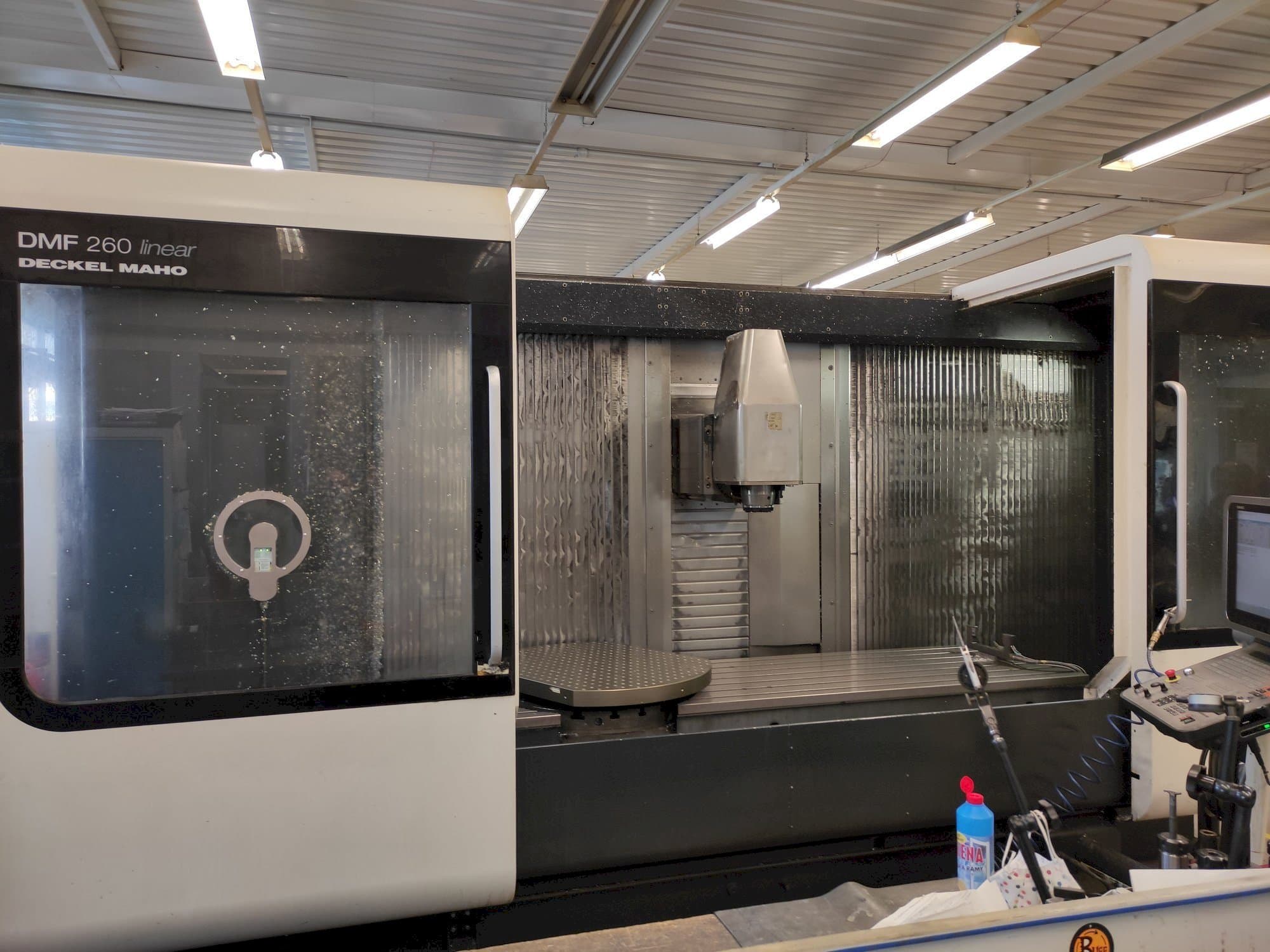

Front view of DMG Deckel Maho DMF 260 linear machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL MAHO DMF 260 linear

Photo Gallery

DECKEL MAHO - DMF 260 linearCZ-MIL-DMG-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG Deckel Maho DMF 260 linear Vertical Machining Center

Show in original language

This Deckel Maho DMF 260 linear Vertical Machining Center was built in the year 2011 in Germany. It has been working for 45228 hours, of which 17156 are spindle hours. This 5 axis machine is equipped with a HEIDENHAIN iTNC 530 control unit. This machine can work with a spindle speed up to 18000 rpm. It has mainly produced molds. A new spindle was installed in 2015, has been regularly maintained, and is in very good condition.

Overview

brand: DECKEL MAHO
year: 2011
MODEL: DMF 260 linear
production hours: 45228
application type: Milling
Location: Czech Republic
machine type: Gantry Milling Machine
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMF 260 linear

General Data

Measurements width: 7709 mm
Measurements depth: 3443 mm
Measurements height: 2692 mm
Machine weight: 15070 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN
Spindle motor power: 35/25 kW (40% ED/100%)
Number of axis: 5

Movement

X-AXIS Movement: 2600 mm
X-AXIS Working Feed: 20.000 mm/min
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 700 mm
Y-AXIS Working Feed: 20.000 mm/min
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 700 mm
Z-AXIS Working Feed: 20.000 mm/min
Z-AXIS Rapid traverse: 40 m/min

Workpiece

Workpiece weight: 2150 kg

Table

Outer length: 2920 mm
Outer width: 740 mm
TSlots size: 6
Distance between: 100 mm

Tools

Slots in storage: 30
Type of tool holder: HSK-A63

Additional Information

Additional equipment

Heidenhain workpiece probe TS 649
Blum tool laser measuring
