Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
DECKEL MAHO - HSC 55 linearCZ-MIL-DMG-2008-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- DMG Deckel Maho HSC 55 linear

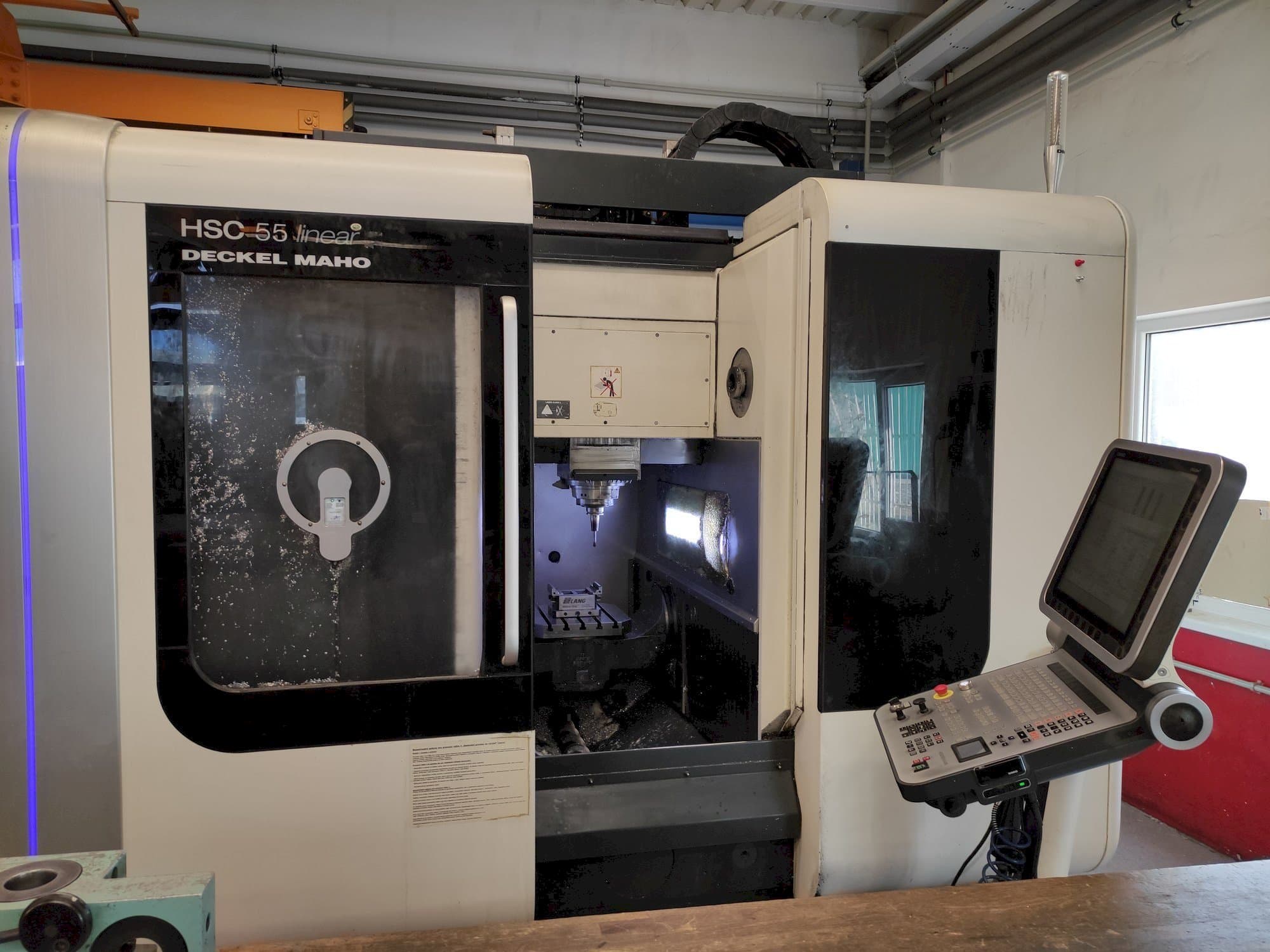

This Deckel Maho HSC 55 linear Vertical Machining Center was manufactured in the year 2008 in Germany. It has a record of 46572 hours, of which 20002 are spindle hours. This 5 axis machine is equipped with a HEIDENHAIN iTNC 530 control unit. It machine can perform with a spindle speed of 28000 rpm. This machine includes a graphite dust collector and got its table retrofitted in 2015 (A axis motor, bearings). It has mainly produced molds. This machine which has been regularly maintained is in very good condition.
Overview
- brand: DECKEL MAHO
- year: 2008
- MODEL: HSC 55 linear
- production hours: 46572
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DECKEL MAHO HSC 55 linear
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Depth: 2930 mm
- Machine Height: 2900 mm
- Machine Weight: 9200 kg
- Table Length: 400 mm
- Table Width: 400 mm
Movement
- Number of Axes: 5
- X-axis Travel: 450 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 400 mm
Technical Specification
- Max. Tool Weight: 6 kg
- Number of Tools: 30
- Spindle Power: 38 kW
- Spindle Speed: 28000 RPM
- Through-spindle Coolant: Yes
Additional Information
Additional equipment
- Graphite dust collector
- Heidenhain touch probe TS 649
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
