DEPO Dynamic 1009

Photo Gallery

DEPO - Dynamic 1009DE-MIL-DEP-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DEPO Dynamic 1009 For Sale | gindumac.com

Show in original language

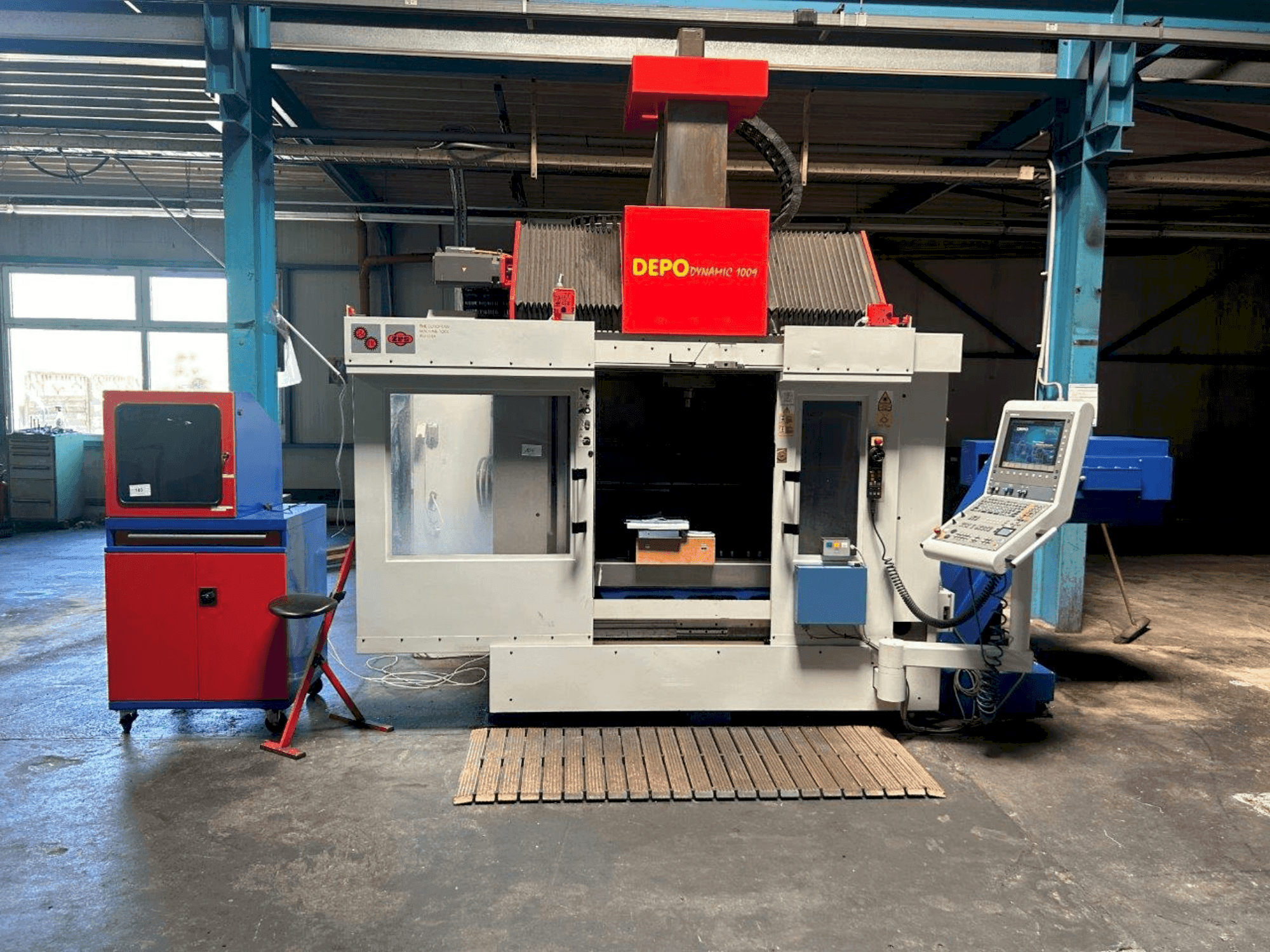

This 3-axis DEPO Dynamic 1009 milling machine was manufactured in 2011. It features a Heidenhain TNC 530 control, with x-travel of 1000 mm, y-travel of 800 mm, and z-travel of 900 mm. Spindle hours total 17,491, and power on hours are 45,449. A robust choice for precision milling, buy this DEPO Dynamic 1009 milling machine. For more information about this milling machine, please reach out to us.

Overview

brand: DEPO
year: 2011
MODEL: Dynamic 1009
production hours: 17491
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DEPO Dynamic 1009

General Data

Measurements width: 2200mm
Measurements depth: 3000mm
Measurements height: 3000mm
Machine weight: 11500kg

Control Unit

Model: TNC 530
Brand: HEIDENHAIN

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 1000 MM
Y-AXIS Movement: 800 MM
Z-AXIS Movement: 600 MM

Media

Chip conveyor: Yes

Additional equipment

- Programmlauf: 17.491 Std.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X-travel of 1000 mm cross support / y-travel of 800 mm cross beam / z-travel of 600 mm vertical slide spindle face from table: 150 - 750 mm work table from floor: 750 mm
- - Work feeds: 20 m/min / rapid traverse: 40 m/min / work table: 1,200 x 1,000 mm / max. Load: 3,000 kg
- - Electrospindle type white 176 024_800 / mounting cone: hsk-a 63
- - Number of tools in a magazine: 30 tool change time (tool - tool): 4. 5 s max. Tool length: 250 mm max. Tool weight incl. Holder: 6. 5 kg max. Weight of all tools incl. Holder: 195 kg transport dimensions of the machine:
- - Lxwxh 3,000 x 2,200 x 3,000 mm (with z-axis console removed) weight of the machine incl. Tool magazine: 11,500 kg
- - Control on: 46. 337 hours / machine on: 45. 449 hours. / programme run: 17,491 hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
