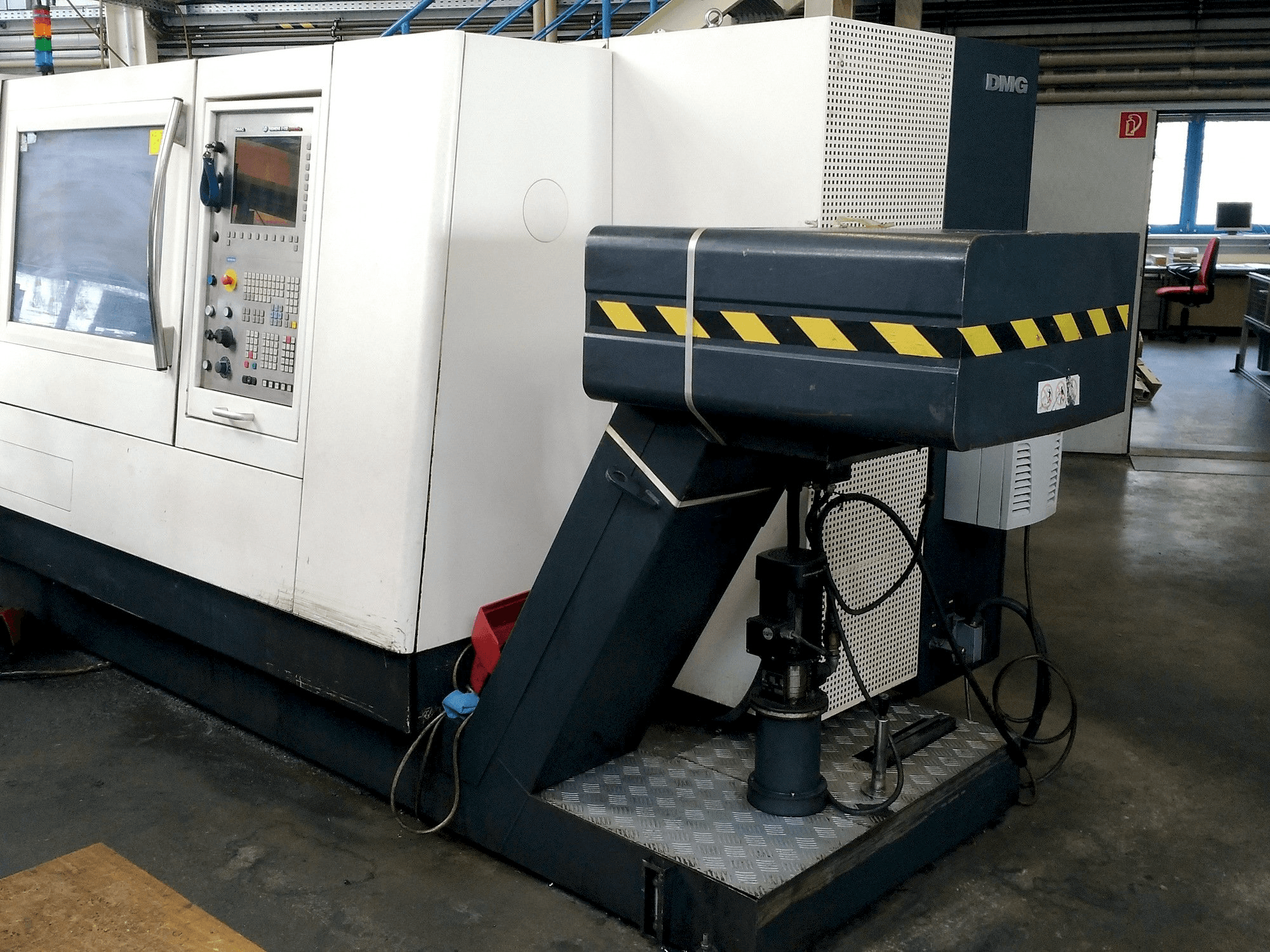

This DMG CTX 510 eco lathe machine was manufactured in 2008 in China. The machine has 45263 working hours. It is operated through a Siemens 810D powerline control unit. This 2 axis machine has a spindle range of 500 - 3250 rpm.
Overview
- brand: DMG
- year: 2008
- MODEL: CTX 510 eco
- production hours: 45263
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - DMG CTX 510 eco
Control Unit
- Control Brand: SIEMENS
- Control Model: 810D powerline
Dimensions
- Machine Depth: 1855 mm
- Machine Height: 1930 mm
- Machine Weight: 7500 kg
Movement
- Number of Axes: 2
- X-axis Travel: 300 mm
- Z-axis Travel: 1050 mm
Technical Specification
- Spindle Speed: 3250 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Chuck diameter: 250 mm
- Spindle nose: fl 220 h5
- Nominal torque (s1): 420/500 nm
- Maximum turning diameter: 465 mm
- Maximum turning length: 1000 mm
- Maximum mass between center: 350 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
