➤ Used DMG DECKEL MAHO HSC 55 linear | Machining Center

Show in original language

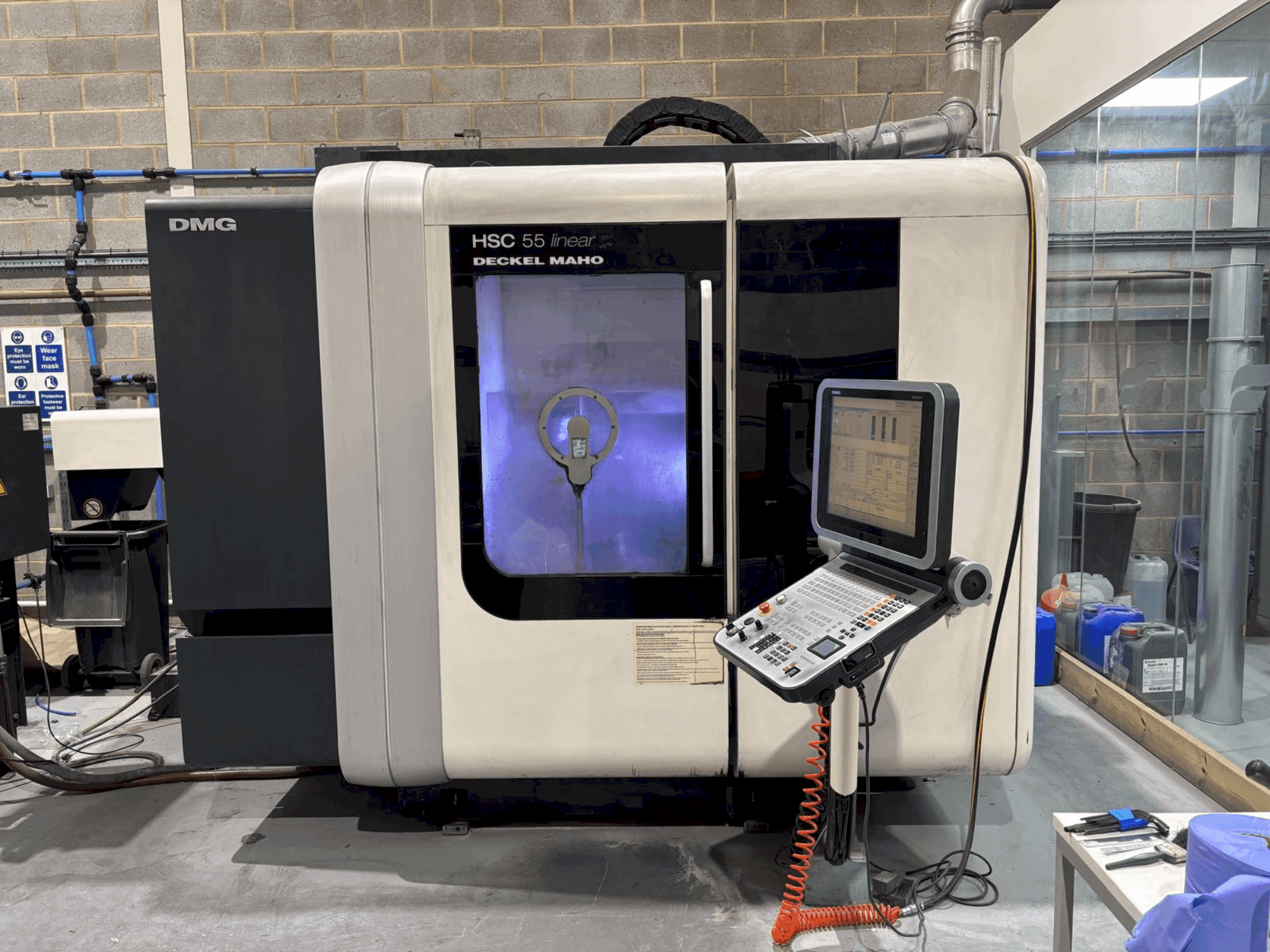

This 5-axis DMG DECKEL MAHO HSC 55 linear vertical machining centre was manufactured in 2008. Consider the opportunity to buy this DMG DECKEL MAHO HSC 55 linear vertical machining centre if you are looking to get high quality milling capabilities. Contact us for more information about this machine.

Overview

brand: DMG DECKEL MAHO
year: 2008
MODEL: HSC 55 linear
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG DECKEL MAHO HSC 55 linear

General Data

Measurements width: 2930 mm
Measurements depth: 3210 mm
Measurements height: 2900 mm
Machine weight: 9200 kg

Control Unit

Brand: HEIDENHAIN
Model: iTNC 530

Main drive

Spindle speed range: 28000 rpm 1/MIN
Spindle motor power: 38/28 kW
Tool taper: HSK-A63
Number of axis: 5

Movement

X-AXIS Movement: 450 MM
Y-AXIS Movement: 600 MM
Z-AXIS Movement: 400 MM

Table

Outer length: 400 mm
Outer width: 400 mm
Number of tslots: 5
Distance between: 63 mm

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Tool Storage Capacity: 30 tools /Max Tool Weight: 6 kg / Max Tool Diameter: 80 mm / Max Tool Length: 250 mm
- Graphite Dust Collector
- Heidenhain Touch Probe TS 649
- 3D Quick Set for 5-Axis Calibration

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Torque: 33/24. 5 nm (40% / 100%)
- - Max workpiece weight: 200 kg
- - Table c-axis rotation: 360° / table a-axis tilt: -10° / +110°
- - Main electronic connection: 400 v, 50/60 hz / power consumption: 50 kva / high pressure cooling: 40 bar (filter paper)
Qualitative Machine Benefits:
- - Condition: very good, regularly maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
