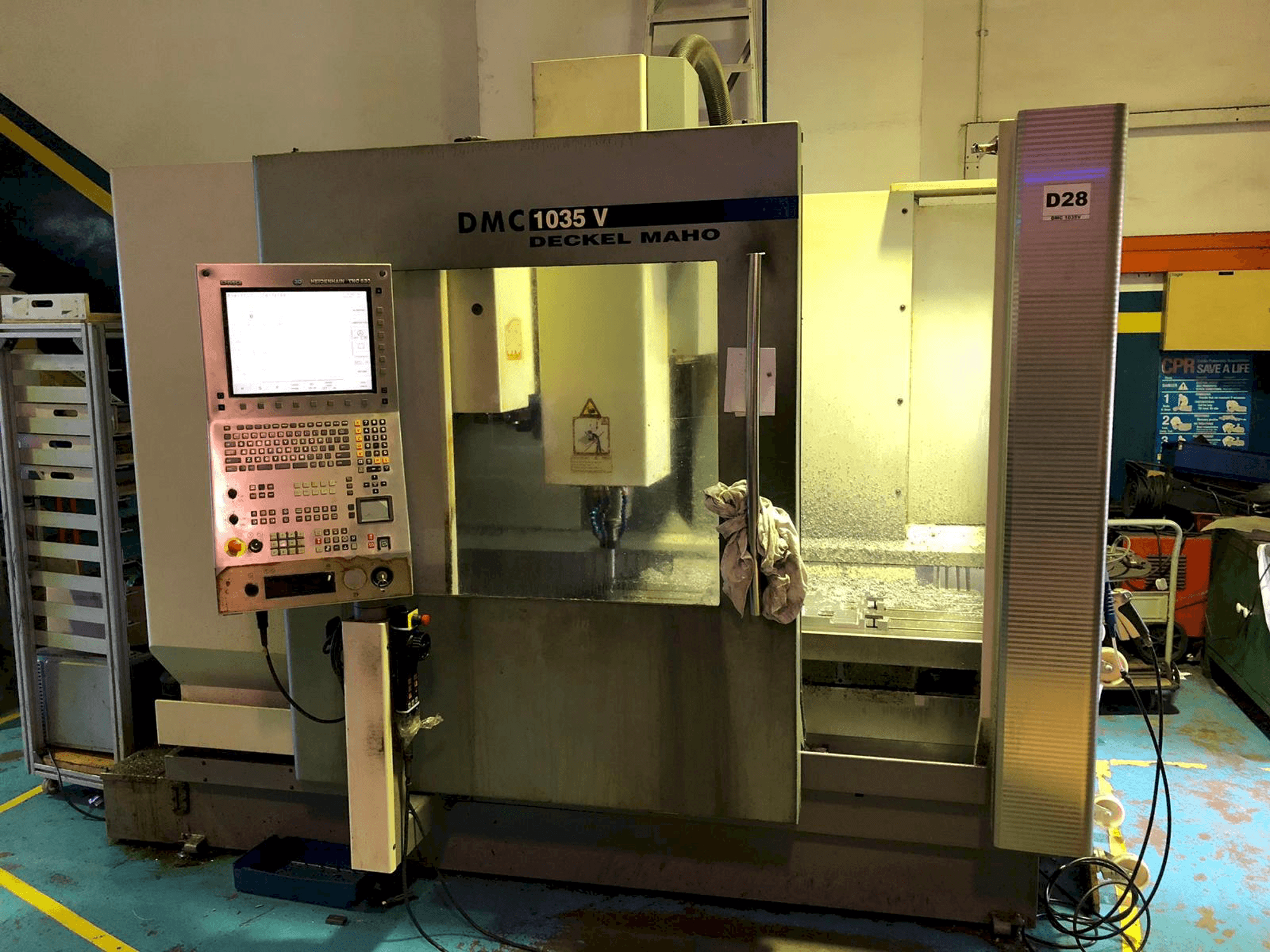

DMG DMC 1035V Vertical Machining Center

Show in original language

This DMG DMC 1035V Vertical Machining Center was produced in Germany in the year 2005. It is equipped with a Heidenhain iTNC 530 control unit. This machine can work with a spindle speed range 20 - 10000 rpm.

Overview

brand: DMG
year: 2005
MODEL: DMC 1035V
application type: Milling
Location: Singapore
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DMG DMC 1035V

General Data

Measurements width: 4000 mm
Measurements depth: 4000 mm
Measurements height: 2500 mm
Machine weight: 4500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20 - 10.000 1/MIN
Spindle motor power: 13 / 9 kW

Movement

X-AXIS Movement: 1035 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 1200 x 560 mm
Table load: 1000 kg

Media

Power consumption: 20 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Torque 83 / 57 nm
- - Tool taper sk 40
- - Table height over floor 720 mm
- - Number of tool positions 20 pos
- - Feed speeds 24. 000 mm/min
- - Rapid traverse 30 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
