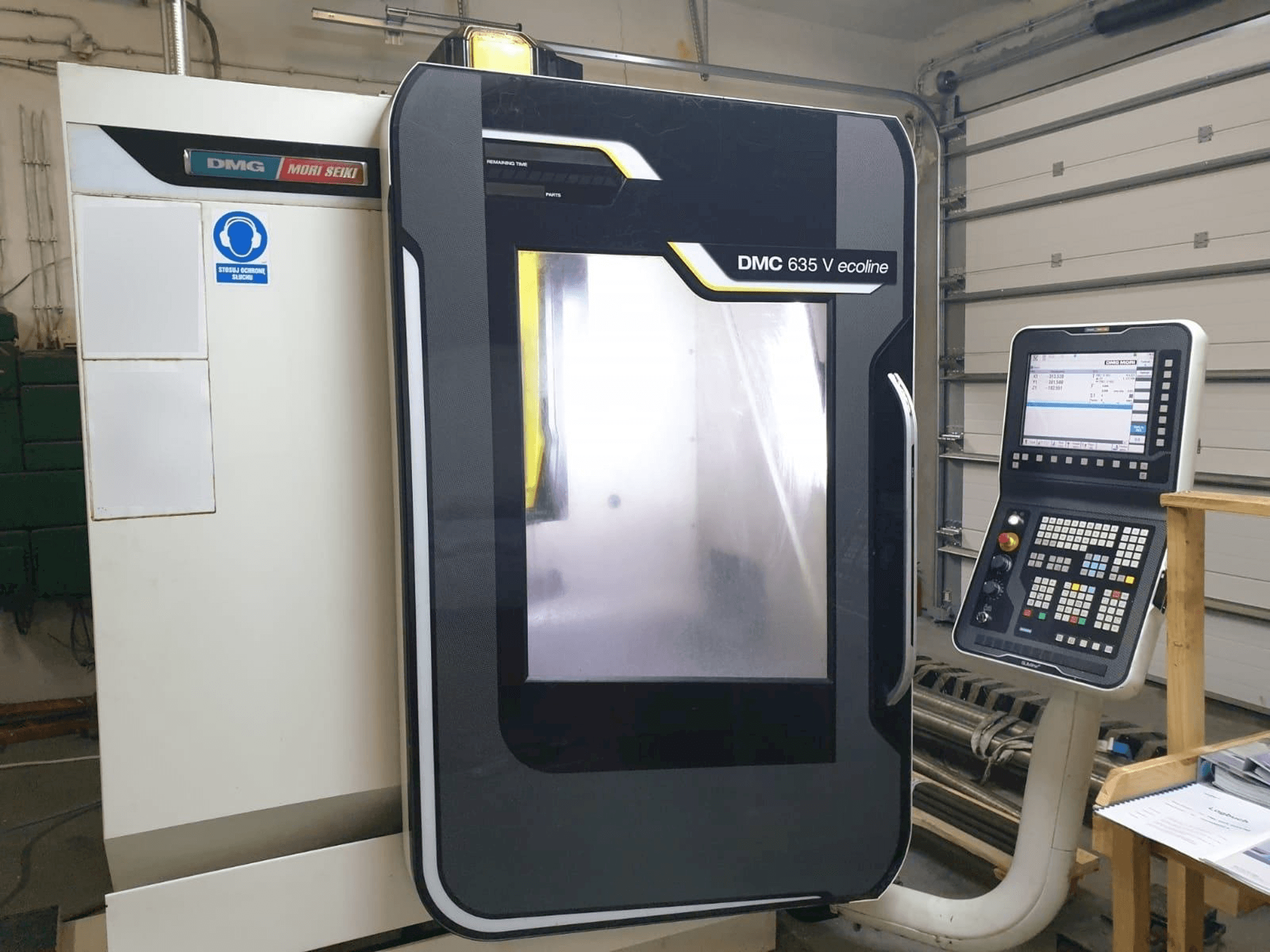

Front view of DMG DMC 635 V ecoline machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG DMC 635 V ecoline

Photo Gallery

DMG - DMC 635 V ecolinePL-MIL-DMG-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG DMC 635 V ecoline Vertical machine center

Show in original language

This DMG DMC 635 V ecoline Vertical machine center was manufactured in Poland in 2013. It has been power on for 19102 hours, of which 8063 are production hours. This machine is equipped with a DMG SLIMline / SIEMENS 840D control unit. It can works with a spindle speed up to 8000 rpm. It comes with a table dimensions 790 x 560 mm.

Overview

brand: DMG
year: 2013
MODEL: DMC 635 V ecoline
production hours: 19102
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - DMG DMC 635 V ecoline

General Data

Measurements width: 33800 mm
Measurements depth: 1880 mm
Measurements height: 2369 mm
Machine weight: 3900 kg

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Spindle speed range: 8000 rpm 1/MIN
Spindle motor power: 13 kW

Movement

X-AXIS Movement: 635 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 510 mm
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 460 mm
Z-AXIS Rapid traverse: 30 m/min

Table

Outer length: 790 mm
Outer width: 560 mm
Table load: 600 kg

Tools

Number of index: 20 tools
Max weight: 6 kg
Max tool length: 300 mm

Media

Main electronic connection: 400V / 50Hz
Power consumption: 17 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Machine in very good working condition, ready for tests.
Full documentation available.

Technical Machine Benefits

Direct measuring scales for all axes
Chip conveyour
Documentation
Probe tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
