DMG DMU 50 Vertical Machining center

Show in original language

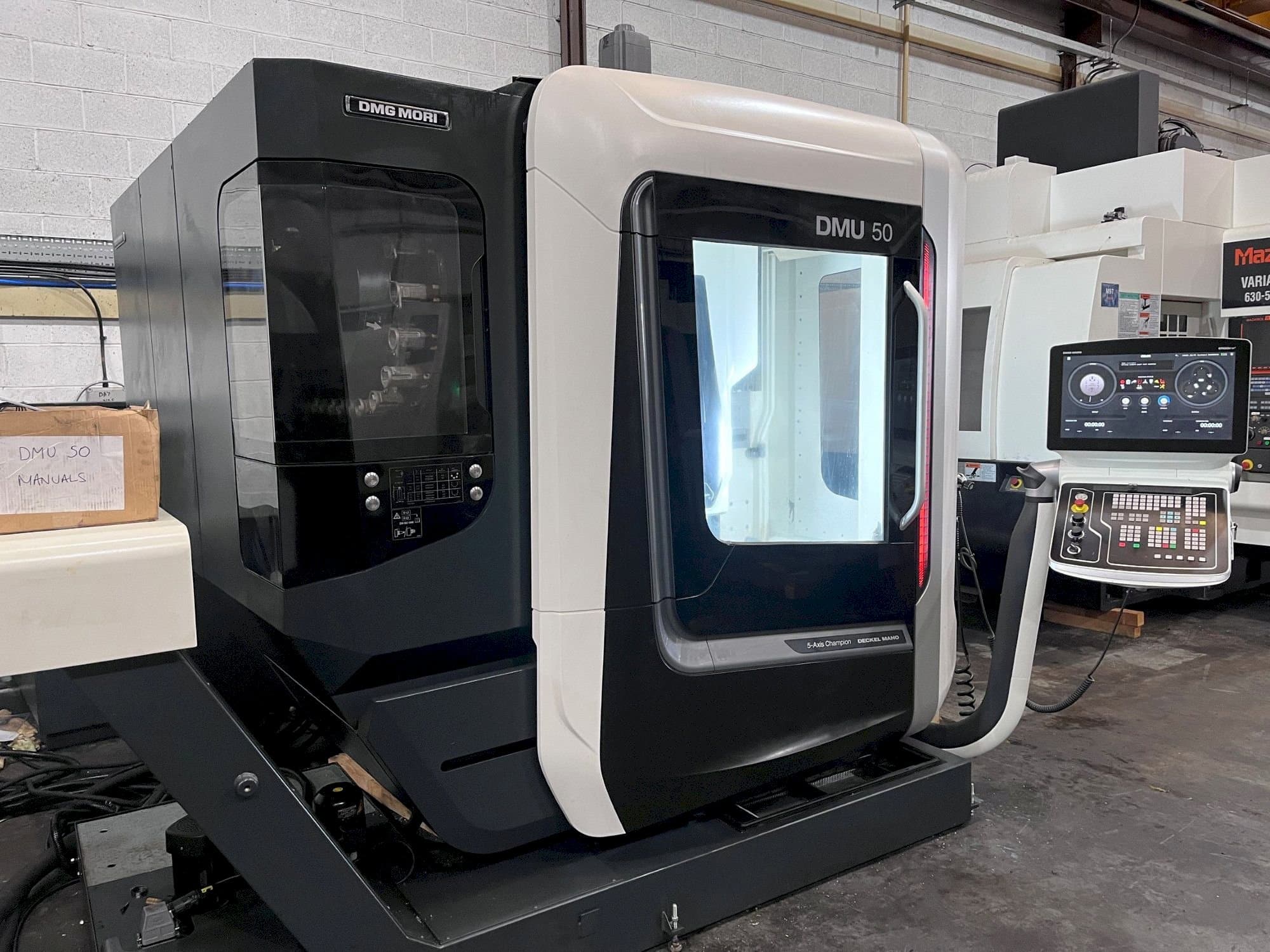

This DMG DMU 50 Vertical Machining center was manufactured in the year 2017 and has 12823 production hours of which 5961 are spindle hours. It is equipped with a Siemens Celos Ergoline control unit and has 5 axis. The machine has a spindle speed of 15000 rpm, is in good condition and well maintained.

Overview

brand: DMG
year: 2017
MODEL: DMU 50
production hours: 12823
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG DMU 50

General Data

Measurements width: 3455 mm
Measurements depth: 2997 mm
Measurements height: 2670 mm
Machine weight: 4480 kg

Control Unit

Model: Celos Ergoline
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 520 mm
Z-AXIS Movement: 475 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 630 mm
Outer width: 500 mm

Tools

Slots in storage: 30
Max weight: 6 kg
Max tool diameter: 80/130 mm
Max tool length: 300 mm
Type of tool holder: DIN 40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C axis 360. 000 degrees
- - B axis -35/+ 110 degrees
- - Spindle motor power 21/16kw
- - Rapid feedrate 42 m/min.
- - Through spindle coolant, swarf conveyor
Qualitative Machine Benefits:
- - Very good condition with low hours!

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
