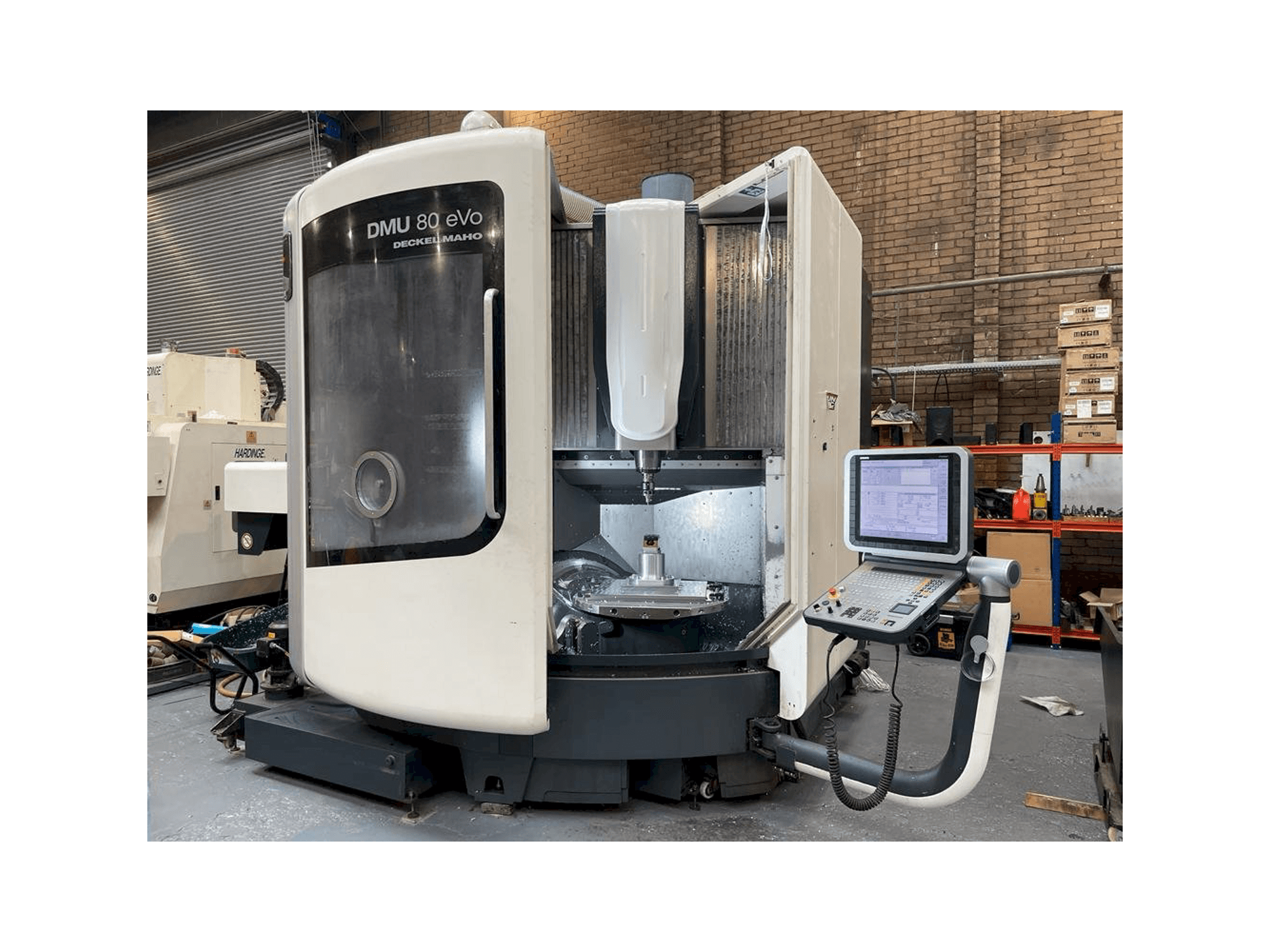

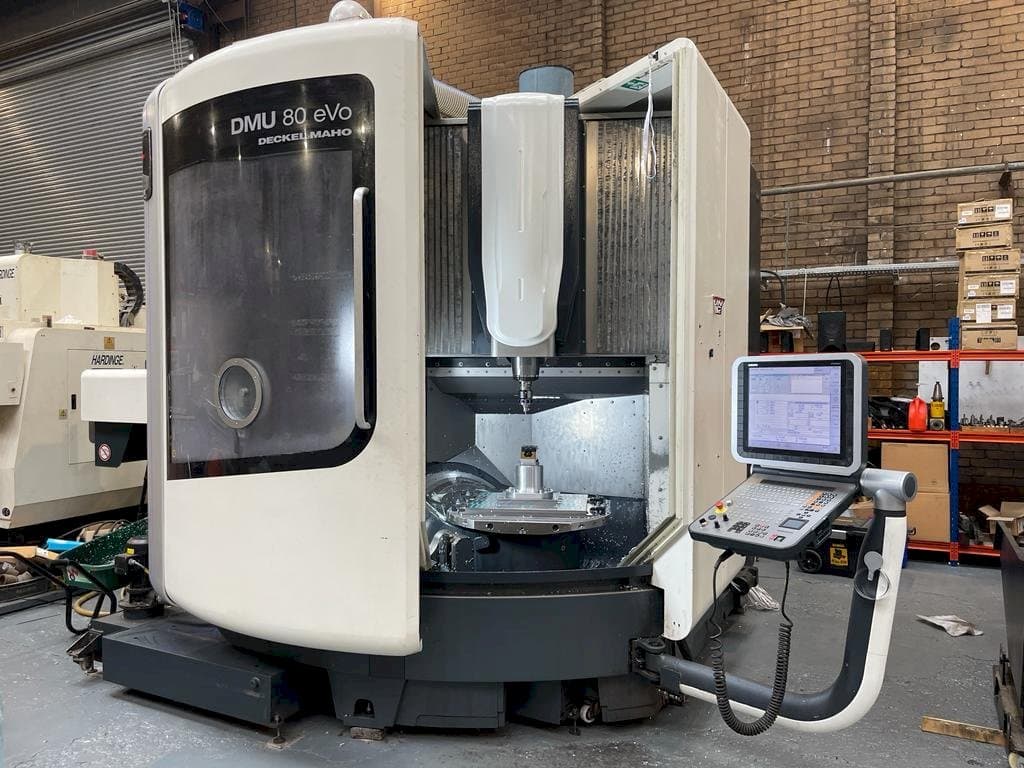

Front view of DMG DMU 80 eVo Linear machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG DMU 80 eVo Linear

Photo Gallery

DMG - DMU 80 eVo LinearGB-MIL-DMG-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG DMU 80 eVo Linear Vertical Machining Center

Show in original language

This DMG DMU 80 eVo Linear Vertical Machining Center was manufactured in the year 2015 in Germany and has 43745 production hours of which 23061 are spindle hours. It is equipped with a HEIDENHAIN iTNC530 HSCI control unit and has 5 axis. The machine has a spindle speed of 18000 rpm, and is in very good condition.

Overview

brand: DMG
year: 2015
MODEL: DMU 80 eVo Linear
production hours: 43745
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG DMU 80 eVo Linear

General Data

Measurements width: 4114 mm
Measurements depth: 5151 mm
Measurements height: 2926 mm
Machine weight: 11800 kg

Control Unit

Model: iTNC530 HSCI
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 18000 1/MIN
Spindle motor power: 35 kw
Number of axis: 5

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 650 mm
Z-AXIS Movement: 550 mm

Workpiece

Workpiece drm: 830 mm
Workpiece z: 600 mm
Workpiece weight: 600 kg

Table

Outer length: 800 mm
Outer width: 700 mm

Tools

Slots in storage: 30
Type of tool holder: HSK A63

Media

Power consumption: 57 kva

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition

Technical Machine Benefits

C axis 360. 000 degrees
B axis -5/+ 110 degrees
Rapid feedrate 80m/minute (dynamic linear option)
Min - max height under spindle: 150- 700 mm
Through spindle coolant, swarf conveyor
Spindle probe, tool setter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
