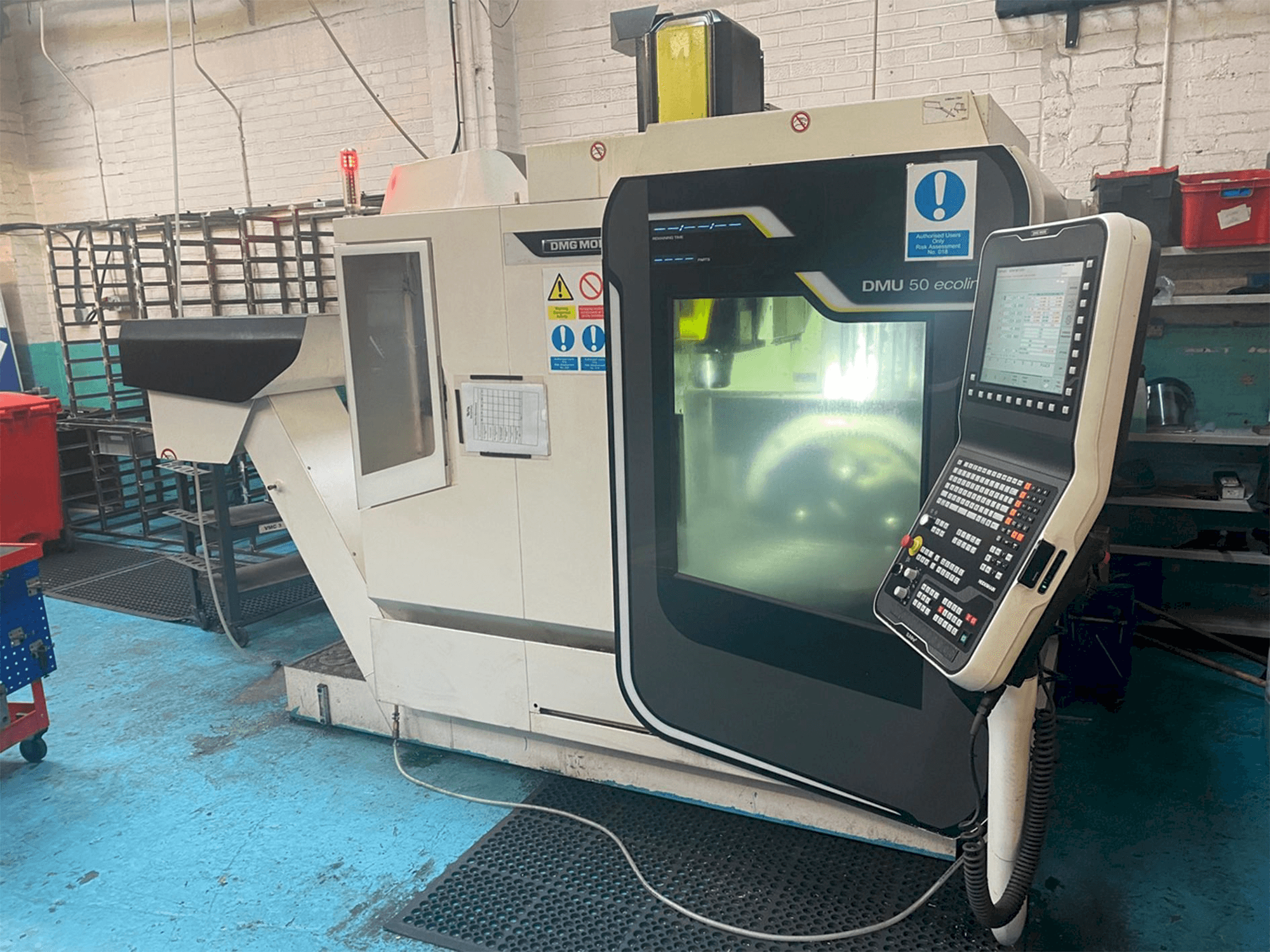

Front view of DMG DMU Ecoline 50 5 Axis VMC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG DMU Ecoline 50 5 Axis VMC

Photo Gallery

DMG - DMU Ecoline 50 5 Axis VMCGB-MIL-DMG-2014-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG DMU Ecoline 50 5 Axis Vertical Machining Center

Show in original language

This DMG DMU Ecoline 50 5 Axis Vertical Machining Center was manufactured in 2014 in Poland. It has been working for only 6941 hours. It is operated with a Heidenhain iTNC 530 control unit. This machine can work with a spindle speed between 20 - 10000 rpm and a spindle taper SK 40.

Overview

brand: DMG
year: 2014
MODEL: DMU Ecoline 50 5 Axis VMC
production hours: 6941
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG DMU Ecoline 50 5 Axis VMC

General Data

Measurements width: 5500 mm
Measurements depth: 4935 mm
Measurements height: 2600 mm
Machine weight: 4000 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20 – 10000 1/MIN
Spindle motor power: 13/9 kW
Tool taper: SK 40

Movement

X-AXIS Movement: 500 mm
X-AXIS Working Feed: 24000 mm / min
X-AXIS Rapid traverse: 24000 mm / min
Y-AXIS Movement: 450 mm
Y-AXIS Working Feed: 24000 mm / min
Y-AXIS Rapid traverse: 24000 mm / min
Z-AXIS Movement: 400 mm
Z-AXIS Working Feed: 24000 mm / min
Z-AXIS Rapid traverse: 24000 mm / min
B-AXIS Movement: -5 ° / + 110 ° MM
C-AXIS Movement: 360 ° MM

Tools

Number of index: 30
Max weight: 6 kg
Max tool diameter: 80/130 mm
Max tool length: 300 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
