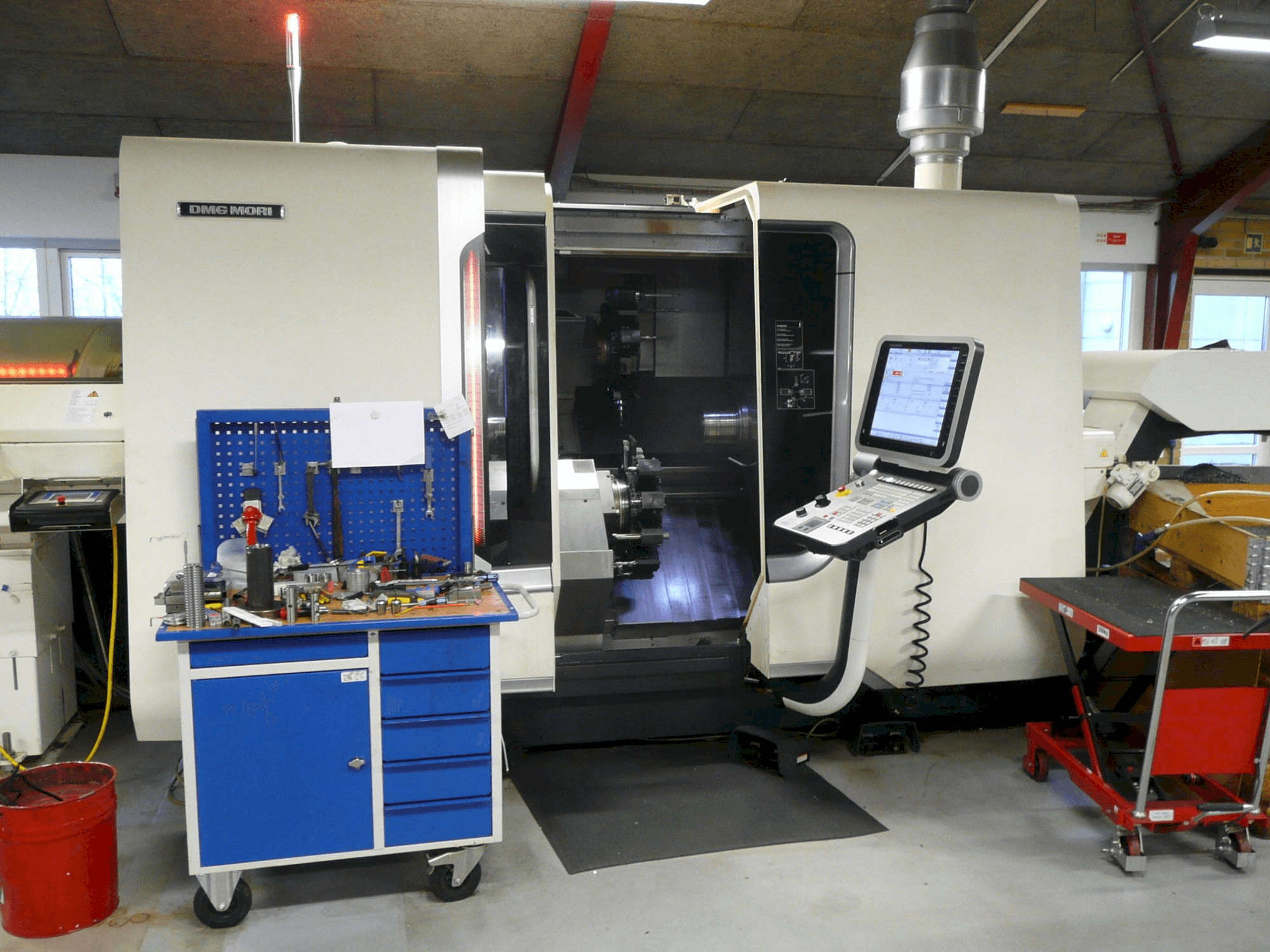

DMG MORI CTX beta 800 A4 Lathe

Show in original language

This DMG MORI CTX beta 800 A4 Lathe machine was manufactured in the year 2015. This machine counts with 14651 cutting hours. This 8 axis machine it is equipped with a SIEMENS ERGO line control unit. This machine comes with 2 spindles, and can perform with a spindle speed up to 5000 rpm.

Overview

brand: DMG MORI
year: 2015
MODEL: CTX beta 800 A4
production hours: 14651
application type: Turning
Location: Denmark
machine type: Turn-Mill Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG MORI CTX beta 800 A4

Control Unit

Model: ERGO line
Brand: SIEMENS

Main drive

Number of spindles: 2
Spindle speed range: 5000 1/MIN

Movement

X-AXIS Movement: 300 mm
Y-AXIS Movement: +/- 60 mm
Z-AXIS Movement: 800 mm

Turret

Number of turrets: 2

Media

Chip conveyor: Yes

Additional equipment

- Barfeed magazine

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working length 735 mm
- - Max. Working diameter 340 mm
- - Swing over bed 710 mm
- - Max. Distance spindle to subspindle 1070 mm
- - Spindle bore 87/75 mm
- - Spindle speeds of live tools 4000 rpm
- - No. Of live stations 2 x 12 pcs
- - X2/z2 axis 195/780 mm
- - High pressure coolant unit, parts catcher
- - Collet attachment hainbruch sk 80, collet chucks, tool posts interface rs-232 c
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
