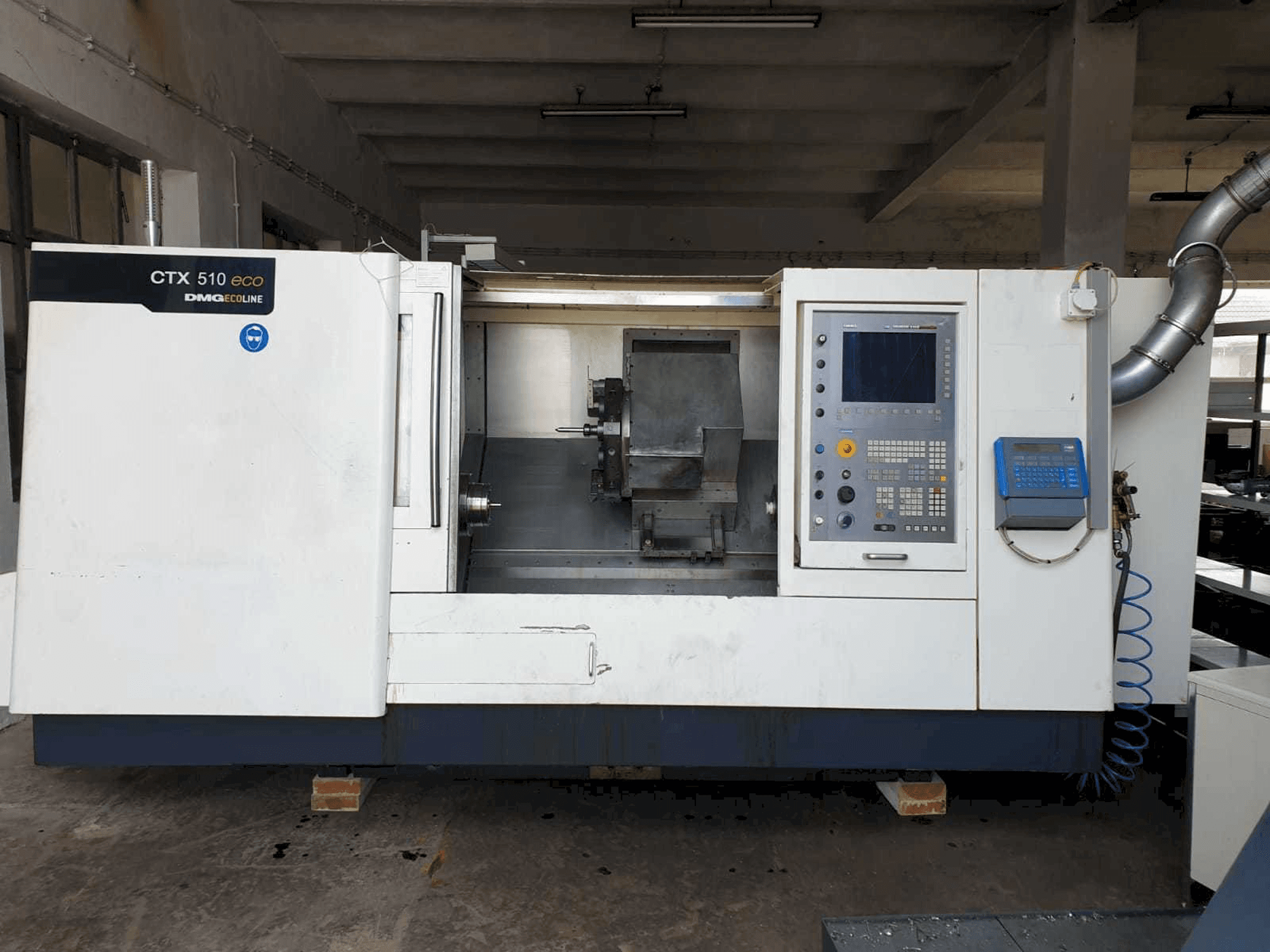

DMG MORI CTX510 eco V3 Lathe

Show in original language

This DMG MORI CTX510 eco V3 Lathe was manufactured in the year 2008 and has 28127 production hours. It is equipped with a Siemens 810D ShopTurn control unit. The machine has a spindle speed of 4000 rpm.

Overview

brand: DMG MORI
year: 2008
MODEL: CTX510 eco V3
production hours: 28127
application type: Turning
Location: Poland
machine type: Turn-Mill Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG MORI CTX510 eco V3

Control Unit

Model: 810D ShopTurn
Brand: SIEMENS

Main drive

Spindle speed range: 3250 1/MIN

Movement

X-AXIS Movement: 300 mm
Z-AXIS Movement: 1050 mm

Media

Main electronic connection: 400V / 50 Hz
Power consumption: 40 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tip distance -rotary tip: 1150 mm
- - Max turning length: 1000 mm
- - Max weight between tips: 350 kg
- - Swing over the bed: 465 mm
- - Spindle bore: 102. 5 mm
- - Hydraulic chuck dim. 250mm
- - Turret head 12 tool slots vdi40, 6 driven slots
- - Rpm-driven tools: 4000 rpm
- - Chip conveyor is included
Qualitative Machine Benefits:
- - Machine connected, very good condition, ready for tests.
- - Part catcher
- - Tool length probe
- - Programmable hydraulic tailstock
- - Hainbuch collet chuck
- - Oil mist separator
- - Additional coolant tank ikz
- - 1 x angled driven holder vdi40
- - 1 x straight driven holder vdi40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
