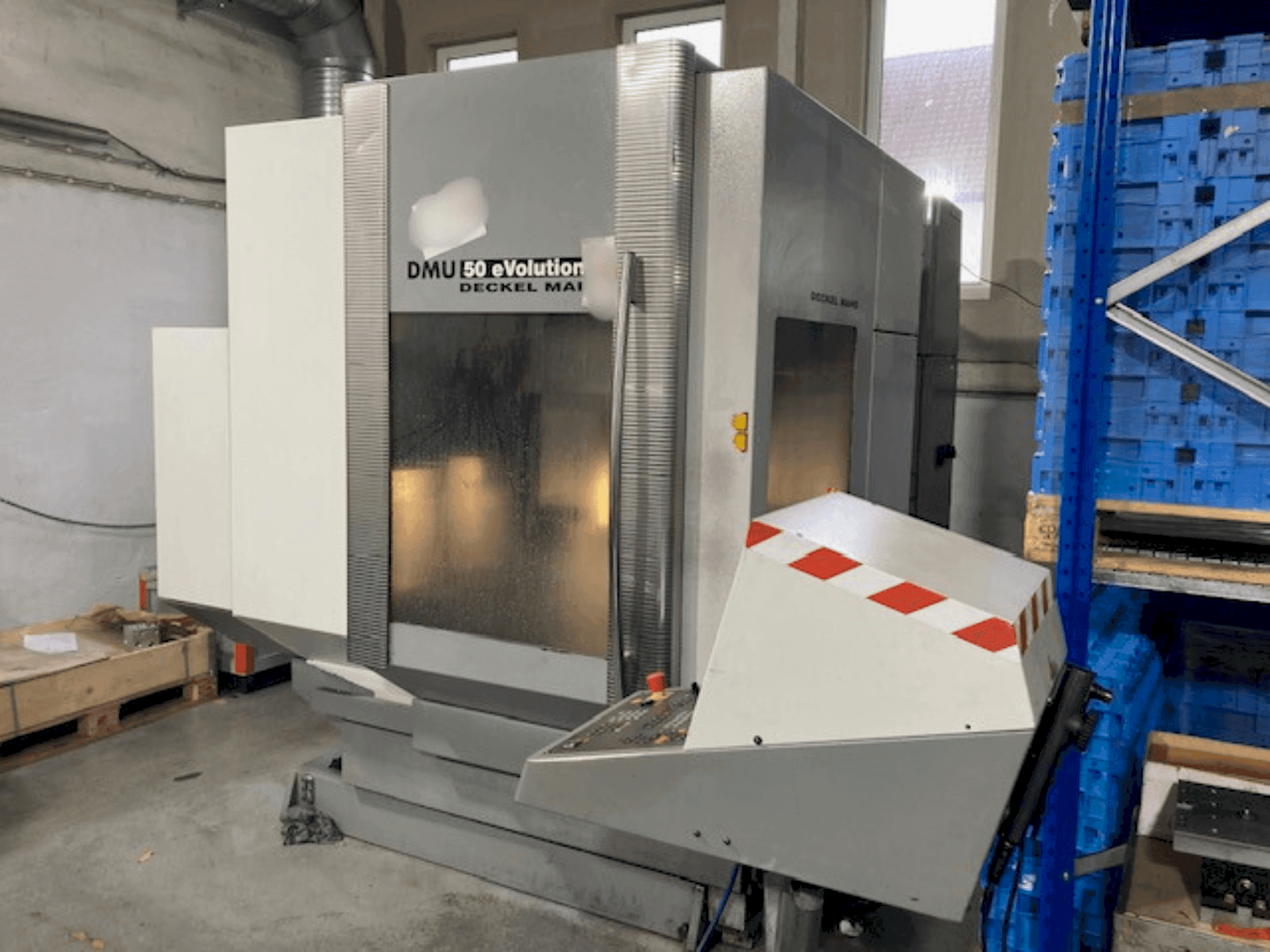

Front view of DMG MORI DMU 50 evolution machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI DMU 50 evolution

Photo Gallery

DMG MORI - DMU 50 evolutionDE-MIL-DMG-2001-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI DMU 50 evolution For sale | gindumac.com

Show in original language

This 5-axis DMG MORI DMU 50 evolution was manufactured in 2001. It features a Heidenhain TC426 control, a tool holder spindle taper SK40, and a spindle speed up to 18000 rpm. The machine includes a tool magazine with 32 places and an NC rotary table. Ideal for complex machining tasks, the DMG MORI DMU 50 evolution machine we have for sale is a robust choice for precision engineering. Contact us for further details regarding this vertical machining center.

Overview

brand: DMG MORI
year: 2001
MODEL: DMU 50 evolution
production hours: 21738
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMU 50 evolution

General Data

Measurements width: 4000 MM
Measurements depth: 5000 MM
Measurements height: 2500 MM

Control Unit

Model: TC426
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18,000 1/MIN
Tool taper: SK40
Number of axis: 5

Movement

X-AXIS Movement: 500 MM
X-AXIS Working Feed: 20 m/min
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 420 MM
Y-AXIS Working Feed: 20 m/min
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 380 MM
Z-AXIS Working Feed: 20 m/min
Z-AXIS Rapid traverse: 50 m/min

Table

Table load: 200 kg

Tools

Slots in storage: 32

Additional equipment

- NC rotary table: diameter 500mm x 380mm, 7 grooves 14mm, 63mm distance

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle and all 5 axis amplifiers were new 2,500 hours ago. Spindle and all 5 axis amplifiers were new 2,500 hours ago.
- - B + c - axis simultan for enhanced machining capabilities.

Extra information

- Machine still under power Is the machine fully functional: Yes Is tool measurement available: No Is there a measuring probe: No Does the machine have internal cooling: No

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
