➤ Used DMG MORI NHX 8000 For Sale | gindumac.com

Show in original language

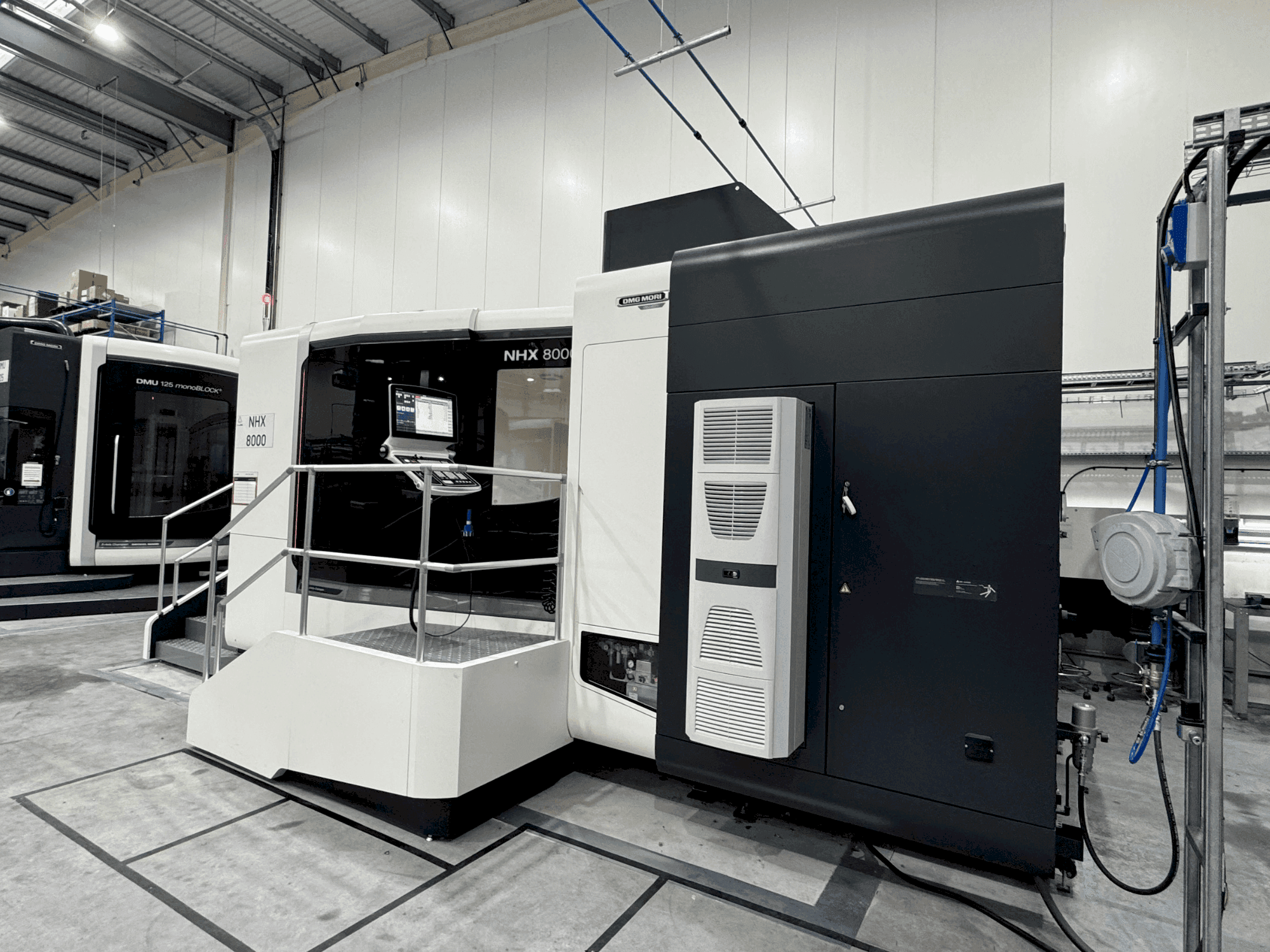

This 4-axis DMG MORI NHX 8000 horizontal machining centre was manufactured in 2023. It features a Siemens S840D control with CELOS, XYZ travels of 1,400 / 1,200 / 1,350 mm, and a pallet size of 800 x 800 mm. The spindle operates at 16,000 rpm with a power of 85 kW and uses an HSK-A100 taper. Tool storage capacity is 60, and it includes a Renishaw OMP60 probe. For more information about this horizontal machining centre, please reach out to us.

Overview

brand: DMG MORI
year: 2023
MODEL: NHX 8000
application type: Milling
Location: United Kingdom
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - DMG MORI NHX 8000

Control Unit

Model: S840D with CELOS
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 16000 rpm 1/MIN
Spindle motor power: 85 kW (10% ED), 50 kW (continuous)
Tool taper: HSK-A100
Number of axis: 4

Movement

X-AXIS Movement: 1400 mm
Y-AXIS Movement: 1200 mm
Z-AXIS Movement: 1350 mm

Additional equipment

- Center through-spindle coolant system
- External chip conveyor with rear discharge, drum filter type
- Oil Skimmer
- Mist Collector: ZeroFOG #2 (built-in)
- Renishaw OMP60 Probe
- CELOS IoT Connector // CELOS NETservice // Machine Data Connector (MDC)
- 3D Machine Model Data
- Dry Anchor
- Outside Step for Machining Area Side // Outside Step for Setup Station Side
- Multi Dry Filter

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Pallet size: 800 x 800 mm
- - Full rotary b-axis
- - Advanced machine vibration control (mvc)
- - Maximum workpiece size: ø 1,450 mm x 1,450 mm
- - Factory voltage: 440v (siemens)

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
