Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
DMG MORI - NLX2500SY/700IE-TUR-DMG-2013-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DMG MORI NLX2500SY/700 For Sale | gindumac.com

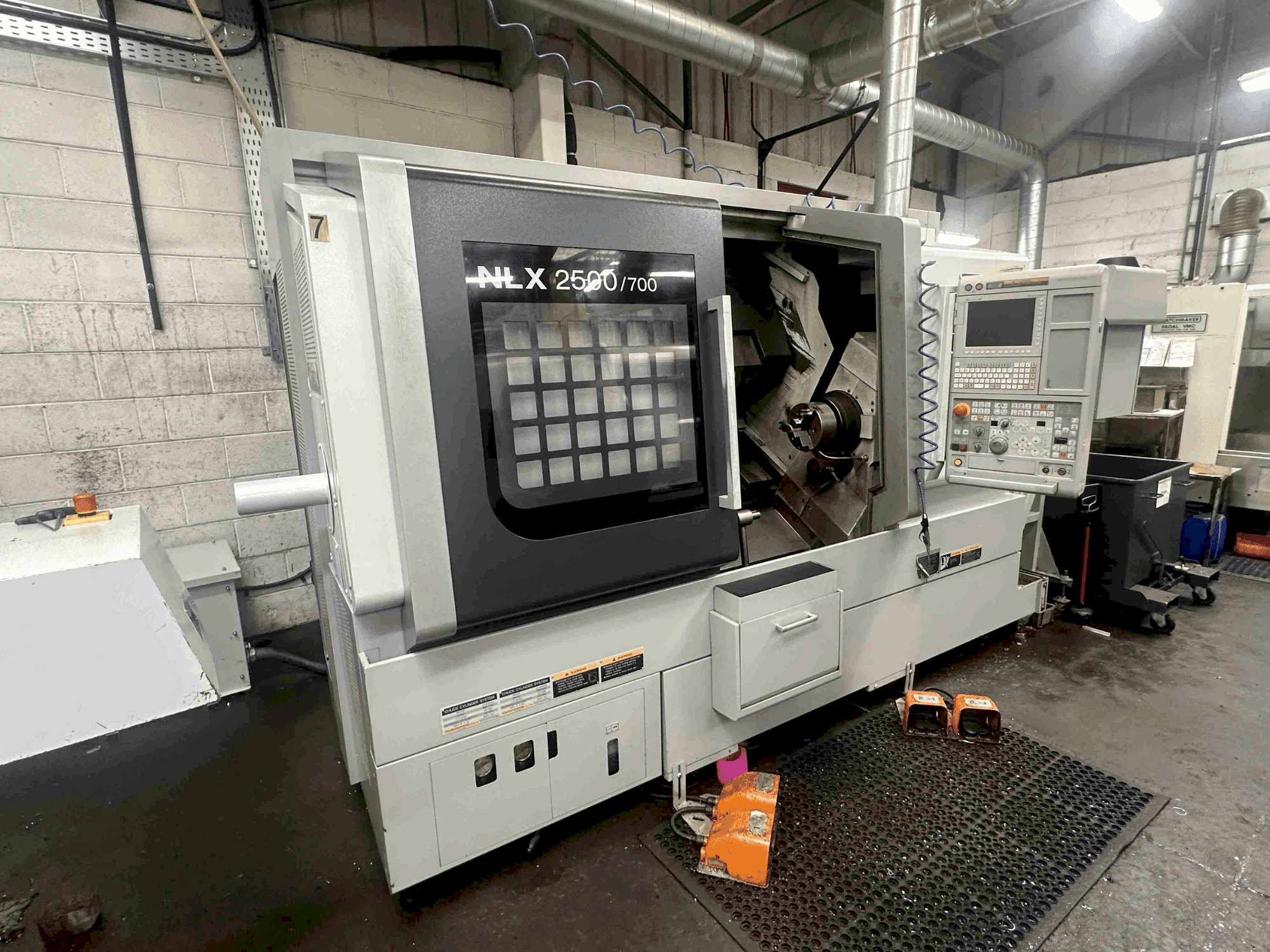

This DMG MORI NLX2500SY/700 was manufactured in 2013. A CNC Lathe with Sub Spindle, Driven Tools, and Y Axis, it features a max turning diameter of 366mm and a length of 705mm. It supports bar work up to 80mm and includes a 12 station tool turret. Ideal for precision tasks, the machine we have for sale offers a robust 18.5kW main spindle motor. For more information about this CNC Lathe, please reach out to us.
Overview
- brand: DMG MORI
- year: 2013
- MODEL: NLX2500SY/700
- application type: Turning
- Location: Ireland
- machine type: Turn-Mill Centre
- control unit brand: MITSUBISHI
Technical Information - DMG MORI NLX2500SY/700
Control Unit
- Control Brand: MITSUBISHI
- Control Model: M730BM
Dimensions
- Machine Depth: 2180 mm
- Machine Height: 2190 mm
- Machine Weight: 6360 kg
Movement
- C-axis: 360°
- X-axis Travel: 260 mm
- Y-axis Travel: 100 mm
- Z-axis Travel: 795 mm
Technical Specification
- Max. Workpiece Diameter: 366 mm
- Number of Tools: 12
- Spindle Speed: 5000 RPM
- Through-spindle Coolant: Yes
Additional Information
Additional equipment
- Static Tool Holders
- 3 Driven Tool Holders
- Tailstock Function on Sub Spindle
- Swarf Conveyor
- Tool Presetter
- Parts Catcher
- BMT Tool Turret
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
