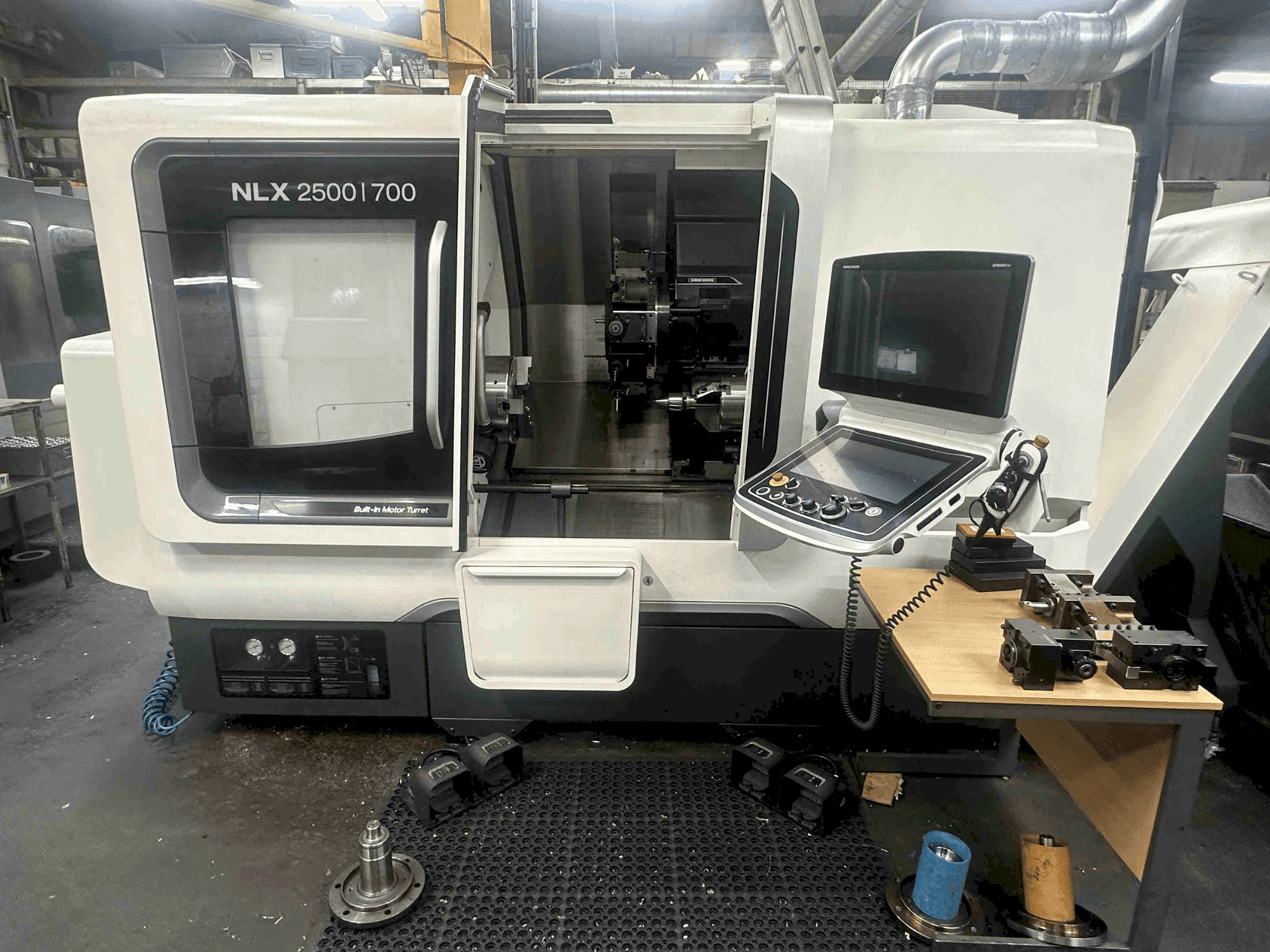

Front view of DMG MORI NLX2500SY/700 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI NLX2500SY/700

Photo Gallery

DMG MORI - NLX2500SY/700IE-TUR-DMG-2023-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI NLX2500SY/700 | For Sale

Show in original language

This DMG MORI NLX2500SY/700 was manufactured in 2023. A CNC Lathe with Sub Spindle, Driven Tools, and Y Axis, it features a 102mm bar capacity, 12 tool stations, and a max turning length of 705mm. With only 251 hours of operation, it includes a swarf conveyor, tool presetter, and parts catcher. Ideal for precision machining, the DMG MORI NLX2500SY/700 machine we have for sale is in excellent condition. Contact us for more information.

Overview

brand: DMG MORI
year: 2023
MODEL: NLX2500SY/700
production hours: 251
application type: Turning
Location: Ireland
machine type: Turn-Mill Centre

Technical Information - DMG MORI NLX2500SY/700

General Data

Measurements width: 2106 mm
Measurements depth: 3980 mm
Measurements height: 2200 mm
Machine weight: 6360 kg

Control Unit

Model: ERGOline With Celos Software
CNC language customizable: Yes

Main drive

Number of spindles: 2
Spindle speed range: 5000 rpm 1/MIN
Spindle motor power: 18.5kW

Movement

X-AXIS Movement: 260 mm
Y-AXIS Movement: 100 mm
Z-AXIS Movement: 795 mm
B-AXIS Movement: 734 mm
C-AXIS Movement: 360 º

Workpiece

Workpiece drm: 366 mm
Workpiece z: 705 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Main electronic connection: 400 V
Power consumption: 37,6 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Additional equipment

Static Tool Holders
3 Driven Tool Holders
102mm Bar Capacity
Tailstock Function on Sub Spindle
Barfeed Interface
Swarf Conveyor
Tool Presetter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
