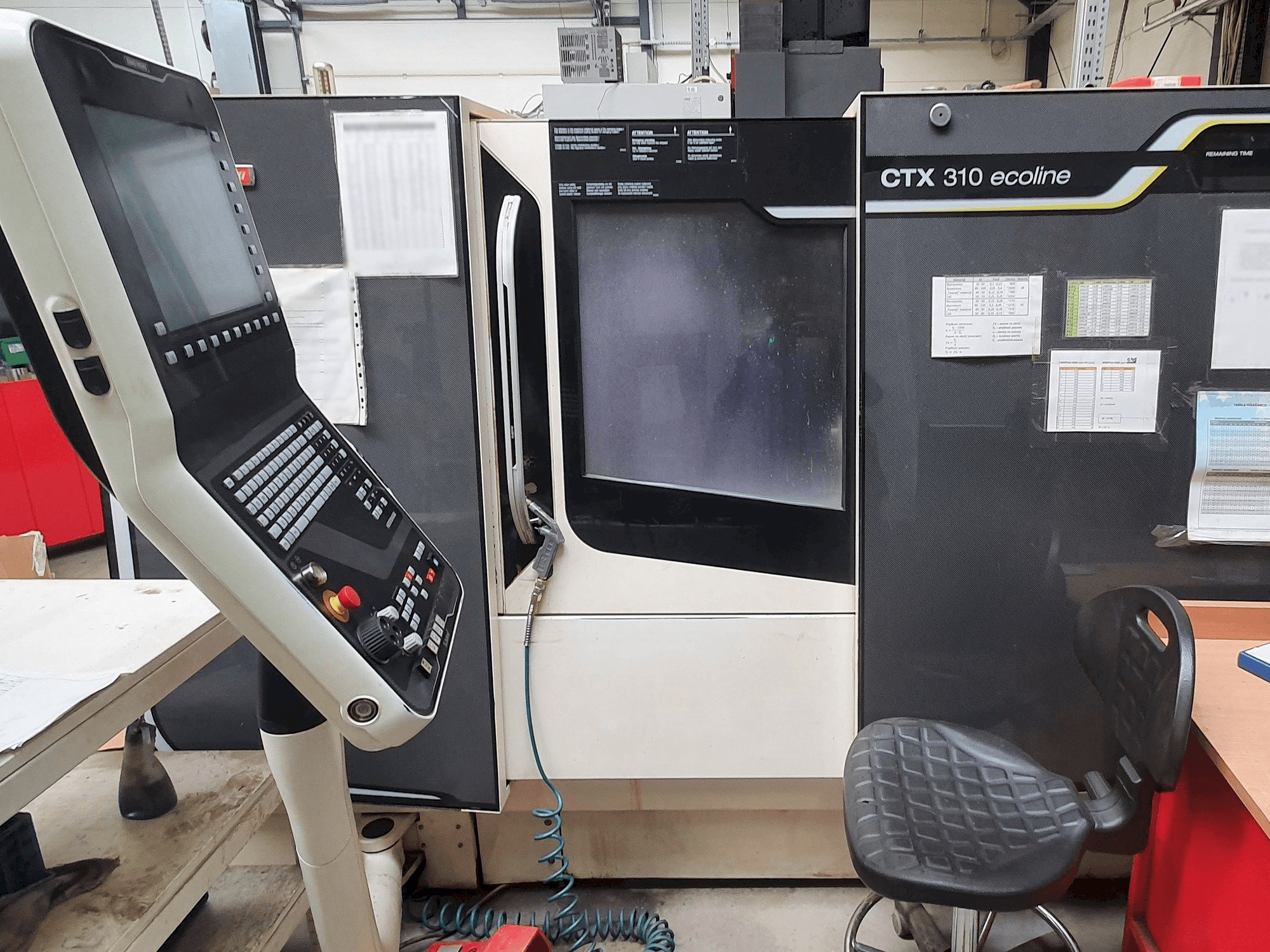

DMG Mori Seiki CTX 310 ecoline V3 Lathe machine

Show in original language

This DMG Mori Seiki CTX 310 ecoline V3 Lathe machine was manufactured in Poland in the year 2012. This machine counts with only 23754 working hours of which 7005 are spindle hours. It is equipped with a HEIDENHAIN CNC PILOT 640 control unit. This machine can perform with a spindle speed up to 5000 rpm.

Overview

brand: DMG Mori Seiki
year: 2012
MODEL: CTX 310 ecoline V3
production hours: 23754
application type: Turning
Location: Poland
machine type: Turn-Mill Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DMG Mori Seiki CTX 310 ecoline V3

General Data

Measurements width: 4228 MM
Measurements depth: 2248 MM
Measurements height: 2153 MM
Machine weight: 3400 kg

Control Unit

Model: CNC PILOT 640
Brand: HEIDENHAIN

Main drive

Spindle speed range: 5000 1/MIN

Movement

X-AXIS Movement: 182.5 mm
Z-AXIS Movement: 455 mm

Tools

Number of stations: 12

Media

Main electronic connection: 400V / 50 Hz
Power consumption: 21 kVA
Chip conveyor: Yes

Additional equipment

- FULL DOCUMENTATION OF THE MACHINE, INSTRUCTION MANUALS INCLUDED

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing diameter, max. : 330 mm
- - Swing diameter over cross slides: 260 mm
- - Turning diameter, max. : dia. 200 mm
- - Cross travel (x): 182. 5 mm
- - Stroke in z axis: 455 mm
- - Bar capacity: dia. 51 mm
- - Tailstock stroke: 396 mm
- - All tools in the turret driven
- - C axis, tank capacity: 40 liters
- - Max rotary speed for tools: 4. 500 rpm
Qualitative Machine Benefits:
- - Machine ready for tests
- - Marposs tool probe
- - High pressure pump 12 bar
- - Pass-through clamping mechanism
- - 3-jaw hydraulic chuck d=210 mm, autogrip type 3h08/2140, passage 52 mm
- - Progressline & planonlight
- - Sauter tool head, 12 slots
- - 4-colour signal lamp
- - Manual flush, 5 bar pistol
- - Tool clamping type vdi 30

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
