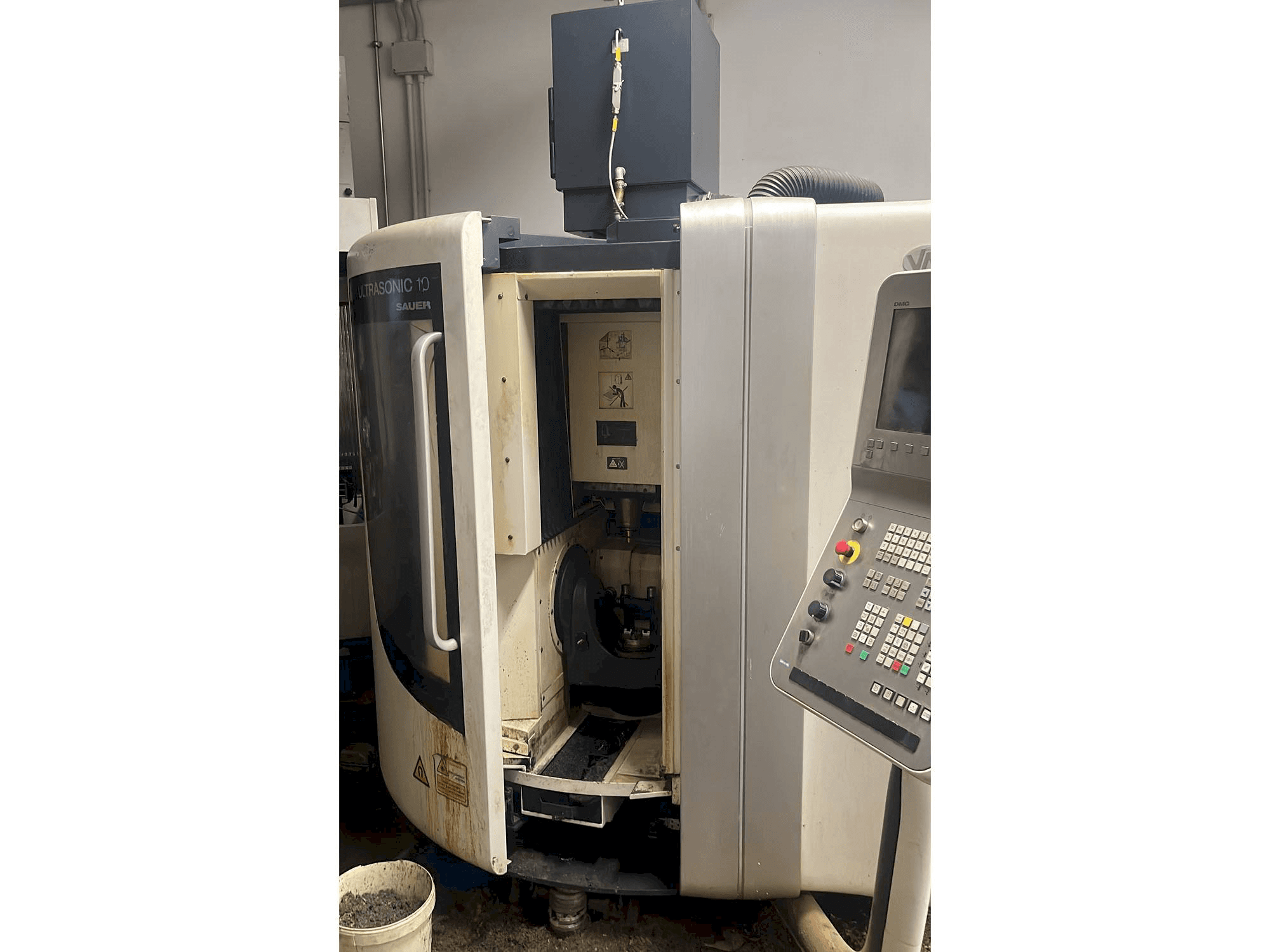

Front view of DMG ultrasonic 10 sauer machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG ultrasonic 10 sauer

Photo Gallery

DMG - ultrasonic 10 sauerIT-MIL-DMG-2010-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG ultrasonic 10 sauer Vertical Machining center

Show in original language

This DMG ultrasonic 10 sauer Vertical Machining center was manufactured in the year 2010 and has 31918 production hours, of which 16151 are spindle hours. It is equipped with a DMG SLIMline control unit and has 5 axis. The machine has a spindle speed of 18000 rpm.

Overview

brand: DMG
year: 2010
MODEL: ultrasonic 10 sauer
production hours: 31918
application type: Milling
Location: Italy
machine type: Vertical Machining Centre

Technical Information - DMG ultrasonic 10 sauer

General Data

Measurements width: 1530 mm
Measurements depth: 1775 mm
Measurements height: 2253 mm
Machine weight: 1800 kg

Control Unit

Model: SLIMline

Main drive

Spindle speed range: 18000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 120 mm
Y-AXIS Movement: 120 mm
Z-AXIS Movement: 200 mm
A-AXIS Movement: -15 / +120
C-AXIS Movement: 360º

Tools

Slots in storage: 16
Max weight: 16 kg
Max tool diameter: 6 mm
Max tool length: 130 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Feed rate: 10000 mm/min
- - Input resolution: 0. 001 mm
- - Workpiece chuck: hsk - e 25
- - Tool tension: pneumatic

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
